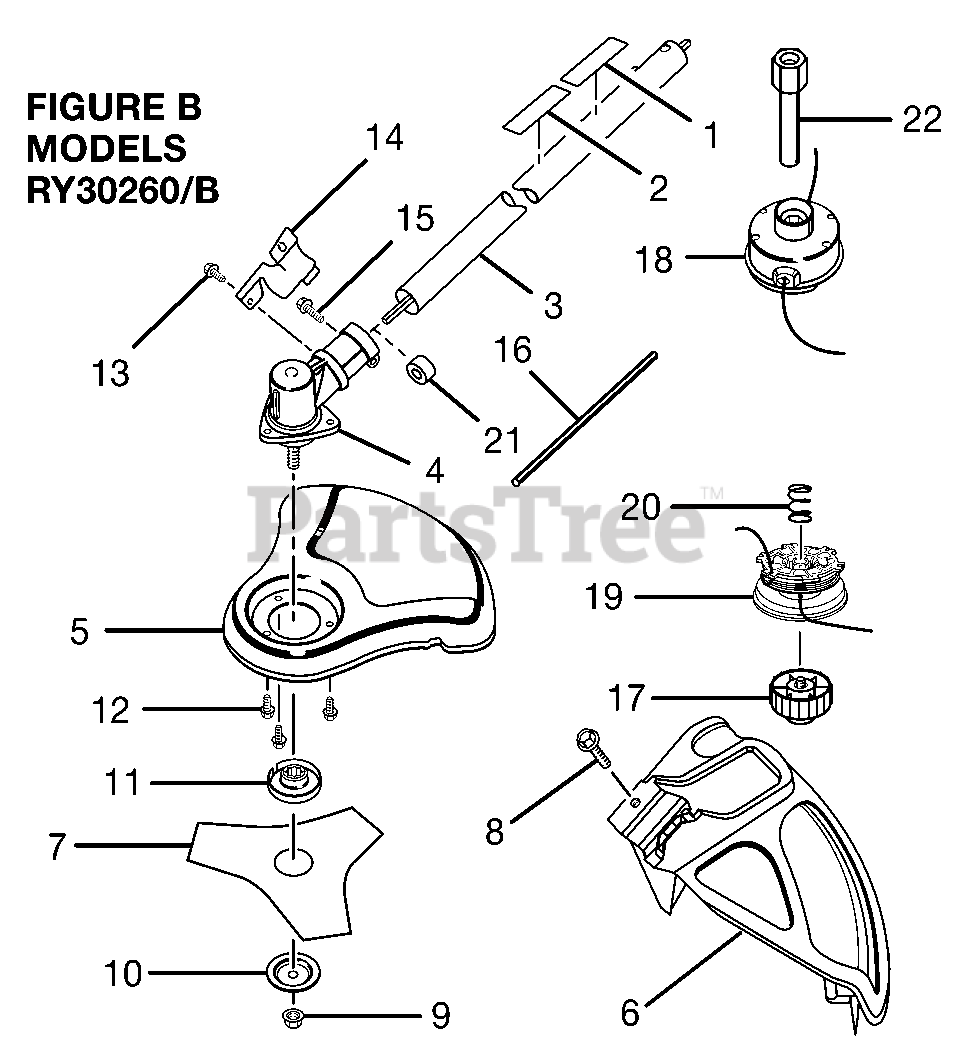

RY 30260 - Ryobi Brush Cutter, 30cc Figure B Parts Diagram

Brush Cutter, 30cc

Figure B Parts Diagram

  • Title

1

Homelite 940627024

Expand-it Label
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940627027

Warning Decal
(Superseded to 984102002)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 000998241

Brushcutter Assy.

Note: Incl. 1,2

$

$

Not available

4

Homelite 308053001

Gear Case Assembly
(Superseded to 308210008)

$

$

Not available

5

Homelite 638120001

8 in. Blade Guard

$

$

Not available

6

Homelite 308473001

Grass Deflector Assy.

$

$

Not available

7

Homelite 638006004

Tri-Arc® Blade

$21.99

$

Usually ships in 3-7 days

0

8

Homelite 660886001

Screw (1/4-20 x 0.70-0.75 in.)

$1.99

$

In Stock, Qty 5

0

9

Homelite 678018001

Lock Nut
(Superseded to 04277)

$

$

Not available

10

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$3.99

$

In Stock, only 1 left!

0

11

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$10.99

$

In Stock, only 1 left!

0

12

Homelite 660737001

Screw (10-24 x 1/2 in.)
(Superseded to 88049)

$

$

Not available

13

Homelite 660736001

Screw (10-24 x 5/8 in.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

14

Homelite 638125001

Clamp
(Superseded to PS04420)

$4.99

$

In Stock, only 2 left!

0

15

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

16

Homelite 678020001

Holding Pin
(Superseded to 099078001040)

$2.49

$

In Stock, only 4 left!

0

17

Homelite 308042003

Spool Retainer (Red)

$7.49

$

In Stock, Qty 5

0

18

Homelite 000998265

Complete String Head (.095 in.)

Note: Incl. 17,19,20

$103.99

$

In Stock, only 1 left!

0

19

Homelite 308044003

Spool and String (.095 in.)

$

$

Not available

20

Homelite 678022001

Compression Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

21

Homelite 518367001

Spacer

$1.99

$

In Stock, only 3 left!

0

22

Homelite 678019002

Shaft Adapter

$

$

Not available
