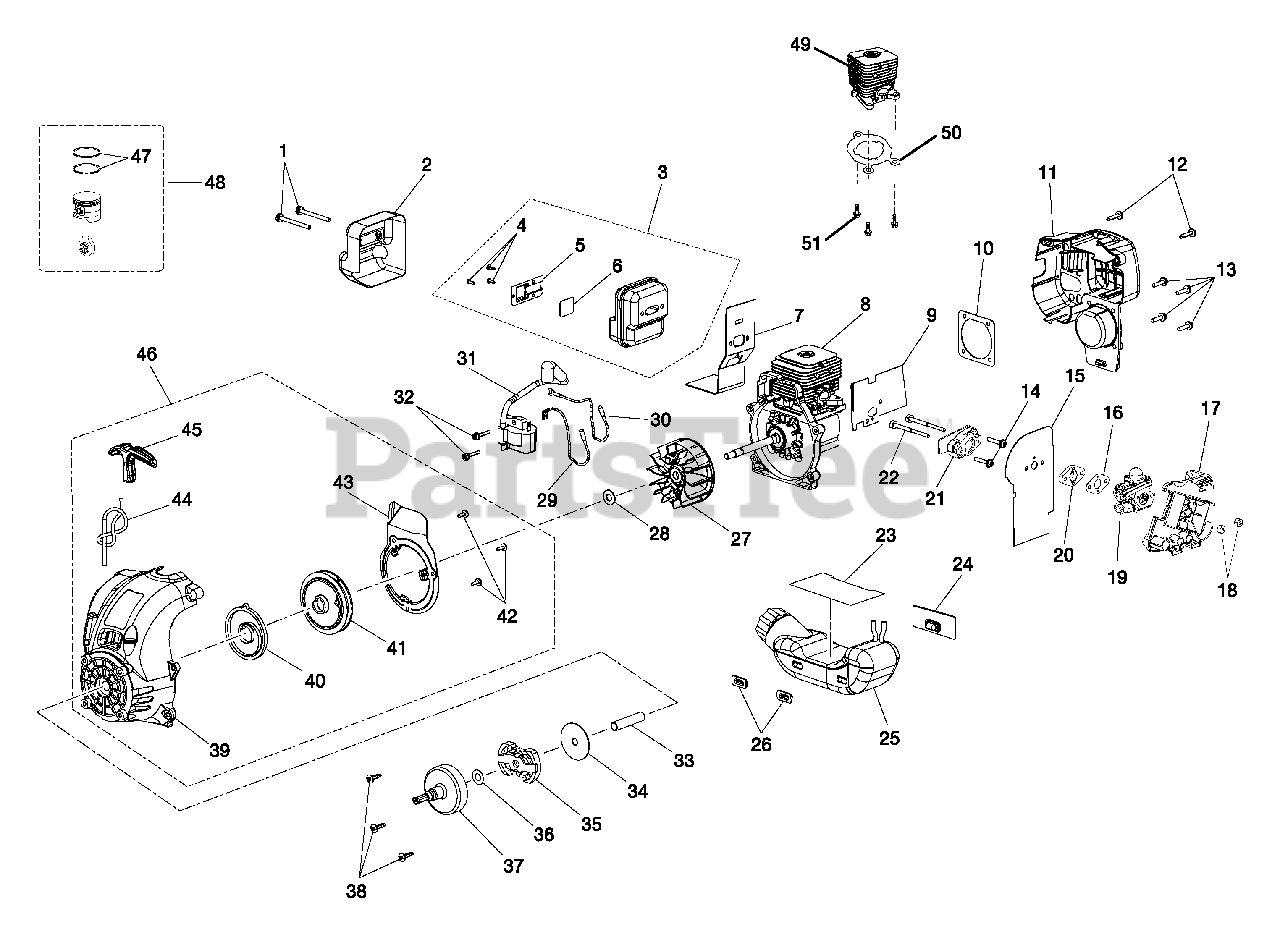

RY 30160 - Ryobi Brush Cutter, 30cc Engine Assembly Parts Diagram

Brush Cutter, 30cc

Engine Assembly Parts Diagram

  • Title
1

Homelite 660638003

SCREW (10-24 X 2-1/8 in. TORX TR. HD. )
(Superseded to PS03999)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

2

Homelite 638094001

HEAT SHIELD
(Superseded to 984743001)

$

$

Not available

3

Homelite 308092008

MUFFLER ASSEMBLY
(Superseded to 985869001)

$

$

Not available

4

Homelite 660870001

SCREW (RECESSED PAN HD.)
(Superseded to 984759001)

$

$

Not available

5

Homelite 638044001

OUTLET TUBE
(Superseded to 985596001)

$

$

Not available

6

Homelite 638268001

SCREEN
(Superseded to 984753001)

$2.99

$

In Stock, only 1 left!

0

7

Homelite 900994006

MUFFLER GASKET

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308192004

SHORT BLOCK ASSEMBLY (30 cc) (EXTERNAL GASKETS NOT INCLUDED)

$69.99

$

Usually ships in 3-7 days

0

9

Homelite 900994010

INTAKE GASKET
(Superseded to 985248001)

$

$

Not available

10

Homelite 900954001

COVER GASKET

$

$

Not available

11

Homelite 518107003

REAR HOUSING
(Superseded to 984829001)

$

$

Not available

12

Homelite 660674001

SCREW (10-14 X 7/8 in. TRUSS HD. T.F.)
(Superseded to 82537)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 660638004

SCREW W/LOCK WASHER (10-24 X 3/4 in. PAN HD. TORX)
(Superseded to 984812001)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 660662001

SCREW (PAN HD.)
(Superseded to 093221)

$

$

Not available

15

Homelite 900740002

CARBURETOR GASKET
(Superseded to 9074002)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 900994004

CARBURETOR GASKET (NON-STRATO)

$

$

Not available

17

Homelite 518094001

AIR FILTER BASE

$

$

Not available

18

Homelite 678027001

LOCK NUT (10-24)
(Superseded to 81208)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$

$

Not available

19

Homelite 308054004

CARBURETOR ASSEMBLY
(Superseded to 308054013)

$

$

Not available

20

Homelite 590456003

SPACER
(Superseded to 5945603)

$

$

Not available

21

$

$

Not available

22

Homelite 660346002

CARBURETOR MOUNTING BOLT (#10 X 2-1/2 in.)

$

$

Not available

23

Homelite 900999002

TANK INSULATION GASKET

$1.49

$

In Stock, only 2 left!

0

24

Homelite 570549001

RUBBER BUMPER

$1.49

$

In Stock, only 1 left!

0

25

Homelite 308181005

FUEL TANK ASSEMBLY W/CAP

$

$

Not available

26

Homelite 570256001

BUMPER
(Superseded to 98792)

$

$

Not available

27

Homelite 308433001

ROTOR W/PAWLS ASSEMBLY

$14.99

$

Usually ships in 3-7 days

0

28

Homelite 650017001

WASHER
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

29

Homelite 290222001

LEAD W/TERMINALS
(Superseded to A06963)

$3.99

$

Usually ships in 3-7 days

0

30

Homelite 290223001

LEAD W/TERMINALS
(Superseded to A06964)

$

$

Not available

31

Homelite 308389002

IGNITION MODULE W/3 SEC. KILL SWITCH

$30.99

$

Usually ships in 3-7 days

0

32

Homelite 660660001

SCREW (THD FORMING)
(Superseded to 82540)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite 638091002

SPACER TUBE
(Superseded to PS05267)

$

$

Not available

34

Homelite 638090001

WASHER (PKG)

$1.99

$

In Stock, only 4 left!

0

35

Homelite 300960002

CLUTCH ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

36

Homelite 678257001

CLUTCH WASHER

$

$

Not available

37

Homelite 308177001

DRUM AND CONNECTOR

$

$

Not available

38

Homelite 660630002

SCREW (10-24 X 3/4 in.)
(Superseded to 82538)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 308436001

STARTER HOUSING AND EYELET ASSEMBLY

$

$

Not available

40

Homelite 638033001

SPRING AND CONTAINER

$5.49

$

In Stock, only 1 left!

0

41

Homelite 308374001

STARTER PULLEY ASSEMBLY
(Superseded to 308386001)

$

$

Not available

42

Homelite 660694001

SCREW (THREAD FORMING)
(Superseded to 82543)

$

$

Not available

43

Homelite 638229001

BAFFLE/ISOLATOR

$2.99

$

Usually ships in 3-7 days

0

44

Homelite 900849002

STARTER ROPE 42 (PKG)

$1.99

$

In Stock, Qty 5

0

45

Homelite 511731001

STARTER GRIP
(Superseded to PS06114)

$

$

Not available

46

Homelite 308194004

STARTER HOUSING ASSEMBLY

$

$

Not available

47

Homelite 690161005

PISTON RING

$

$

Not available

48

Homelite 308023003

PISTON W/ROD ASSEMBLY
(Superseded to 985872001)

$

$

Not available

49

Homelite 640069002

CYLINDER, 30CC
(Superseded to 640069003)

$46.99

$

Usually ships in 3-7 days

0

50

Homelite 900953001

CYLINDER GASKET

$

$

Not available

51

Homelite 660342002

SCREW (M5 X 20 MM )

$1.49

$

Usually ships in 3-7 days

0
