RY 30140 - Ryobi String Trimmer, 30cc Lower Boom Assembly Parts Diagram

String Trimmer, 30cc

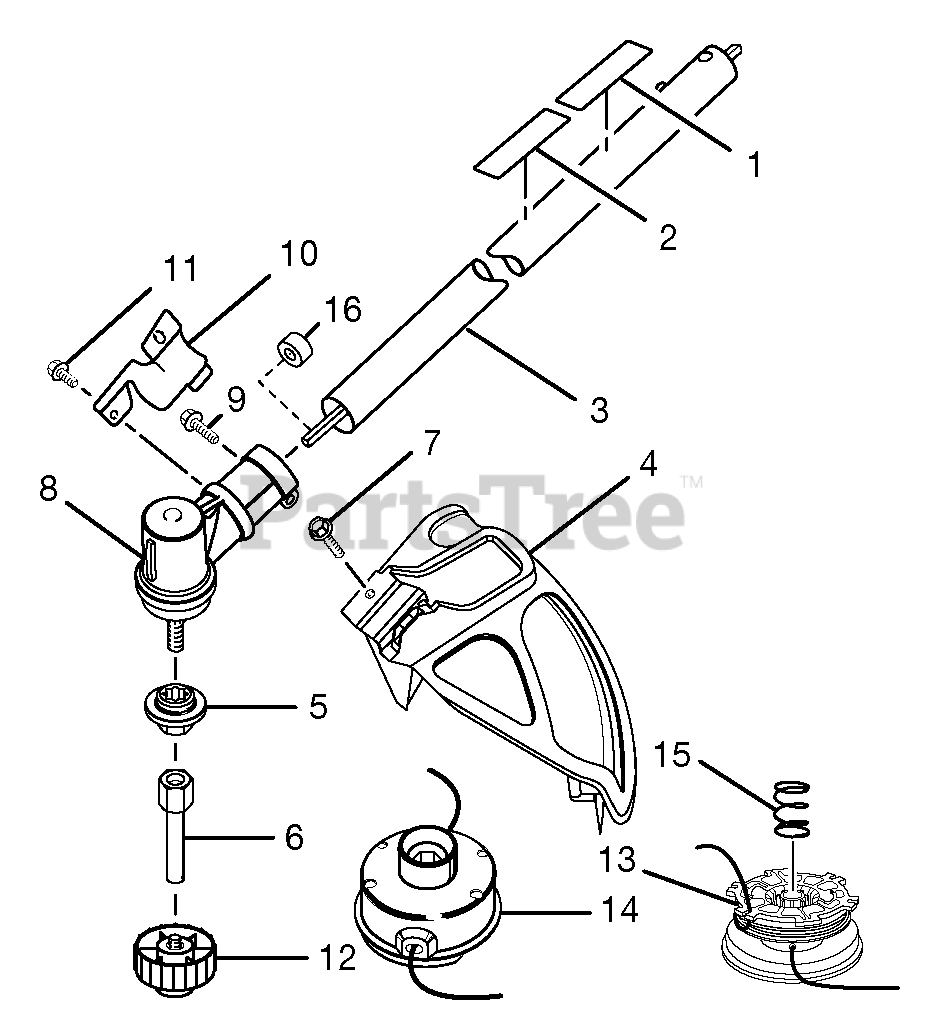

Lower Boom Assembly Parts Diagram

  • Title

1

Homelite 940627024

Expand-it Label
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940230132

Warning Decal
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 000998240

Straight Shaft Assembly

Note: (Incl. 1,2)

$

$

Not available

4

Homelite 308473001

Grass Deflector Assembly

Note: (Incl. 7)

$

$

Not available

5

Homelite 678011002

Flanged Washer

$

$

Not available

6

Homelite 678019002

Shaft Adapter

$

$

Not available

7

Homelite 660886001

Screw (1/4-20 x 0.70-0.75 in.)

$1.99

$

In Stock, Qty 5

0

8

Homelite 308053004

Gear Case Assembly
(Superseded to 308210009)

$48.99

$

In Stock, only 1 left!

0

9

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

10

Homelite 638125001

Clamp
(Superseded to PS04420)

$4.99

$

In Stock, only 2 left!

0

11

Homelite 660736001

Screw (10-24 x 5/8 in. Hex Hd.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

12

Homelite 308042003

Spool Retainer (Red)

$7.49

$

In Stock, Qty 5

0

13

Homelite 308044003

Spool and String (.095 in.)

$

$

Not available

14

Homelite 000998265

Complete String Head Assembly (.095 in.)

Note: (Incl. 12,13,15)

$103.99

$

In Stock, only 1 left!

0

15

Homelite 678022001

Compression Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

16

Homelite 518367001

Spacer

$1.99

$

In Stock, only 3 left!

0
