RY 30040 A - Ryobi String Trimmer, 30cc Lower Boom Assembly Parts Diagram

String Trimmer, 30cc

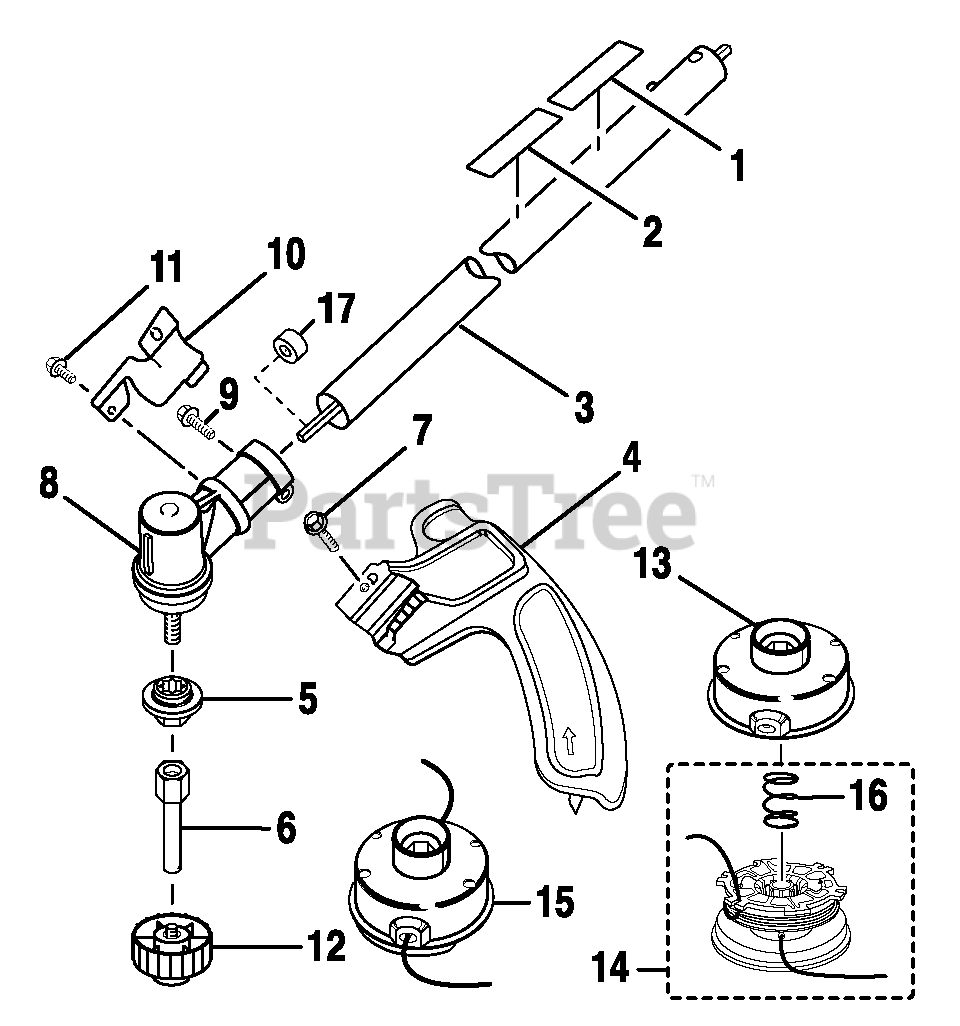

Lower Boom Assembly Parts Diagram

  • Title

1

Homelite 985165001

Expand-it Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 984032002

Warning Decal

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 985391001

Straight Shaft Assembly
(Superseded to 000998240)

$

$

Not available

4

Homelite 984443004

Grass Deflector Assembly
(Superseded to 308252001)

$

$

Not available

5

Homelite 984931001

Washer
(Superseded to 678011002)

$

$

Not available

6

Homelite PS04438

Shaft Adapter
(Superseded to 678019002)

$

$

Not available

7

Homelite 983379078

Screw (1/4-20 x 1-1/4 in.)

$

$

Not available

8

Homelite 984244001

Gear Head
(Superseded to 308210009)

$48.99

$

In Stock, only 1 left!

0

9

Homelite 983381007

Screw (1/4-20 x 1-1/4 in.)

$2.49

$

In Stock, Qty 5

0

10

Homelite PS04420

Clamp

$4.99

$

In Stock, only 2 left!

0

11

Homelite 983774003

Screw (10-24 x 5/8 in.)

$2.49

$

In Stock, Qty 5

0

12

Homelite A97910A

Spool Retainer (Red)
(Superseded to 308042003)

Note: Retailer Number AP04103 - Purchase locally from retailer where unit was purchased.

$7.49

$

In Stock, Qty 5

0

13

Homelite A98231A

Housing and Eyelet
(Superseded to 099068001005)

$

$

Not available

14

N/A

Spool and String (.095 in.) w/Spring

Note: (Inc. Key #16); Retailer Number AR04118 - Purchase locally from retailer where unit was purchased

$

$

Not available

15

N/A

Complete String

Note: Retailer Number AP04116 - Purchase locally from retailer where unit was purchased

$

$

Not available

16

Homelite 06713

Spring

$1.99

$

In Stock, only 3 left!

0

17

Homelite 985625001

Spacer
(Superseded to 518367001)

$1.99

$

In Stock, only 3 left!

0
