RY 30020 (CS 30) - Ryobi String Trimmer, 30cc Lower Boom Assembly Parts Diagram

String Trimmer, 30cc

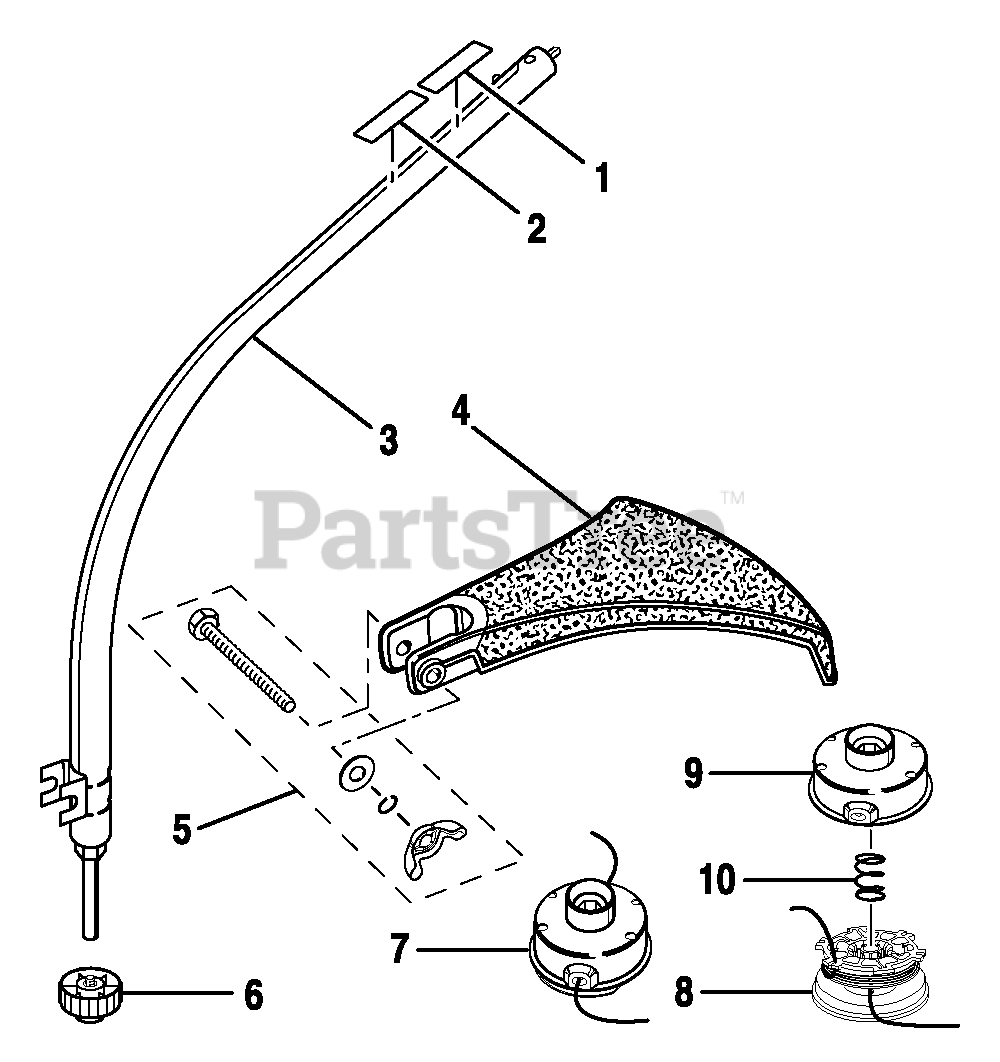

Lower Boom Assembly Parts Diagram

  • Title

1

Homelite 985165001

Expand-it Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 984032002

Warning Decal

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 985569003

Curved Shaft Assembly
(Superseded to 000998239)

$

$

Not available

4

Homelite 985623002

Grass Deflector
(Superseded to T308744001)

$

$

Not available

5

Homelite PA00249

Fastener Kit

$

$

Not available

6

N/A

Spool Retainer (Black)

Note: Retailer Number AP04106 - Purchase locally from retailer where unit was purchased

$

$

Not available

7

N/A

Complete String Head (.080 in.)

Note: Retailer Number AP04114 - Purchase locally from retailer where unit was purchased

$

$

Not available

8

Homelite AH04112

Spool and String (.080 in.) w/Spring
(Superseded to 308044002)

$

$

Not available

9

Homelite A98231A

Housing and Eyelet
(Superseded to 099068001005)

$

$

Not available

10

Homelite 06713

Spring

$1.99

$

In Stock, only 3 left!

0
