RY 30004 B - Ryobi Brush Cutter, 30cc Upper Boom/Handle Assembly Parts Diagram

Brush Cutter, 30cc

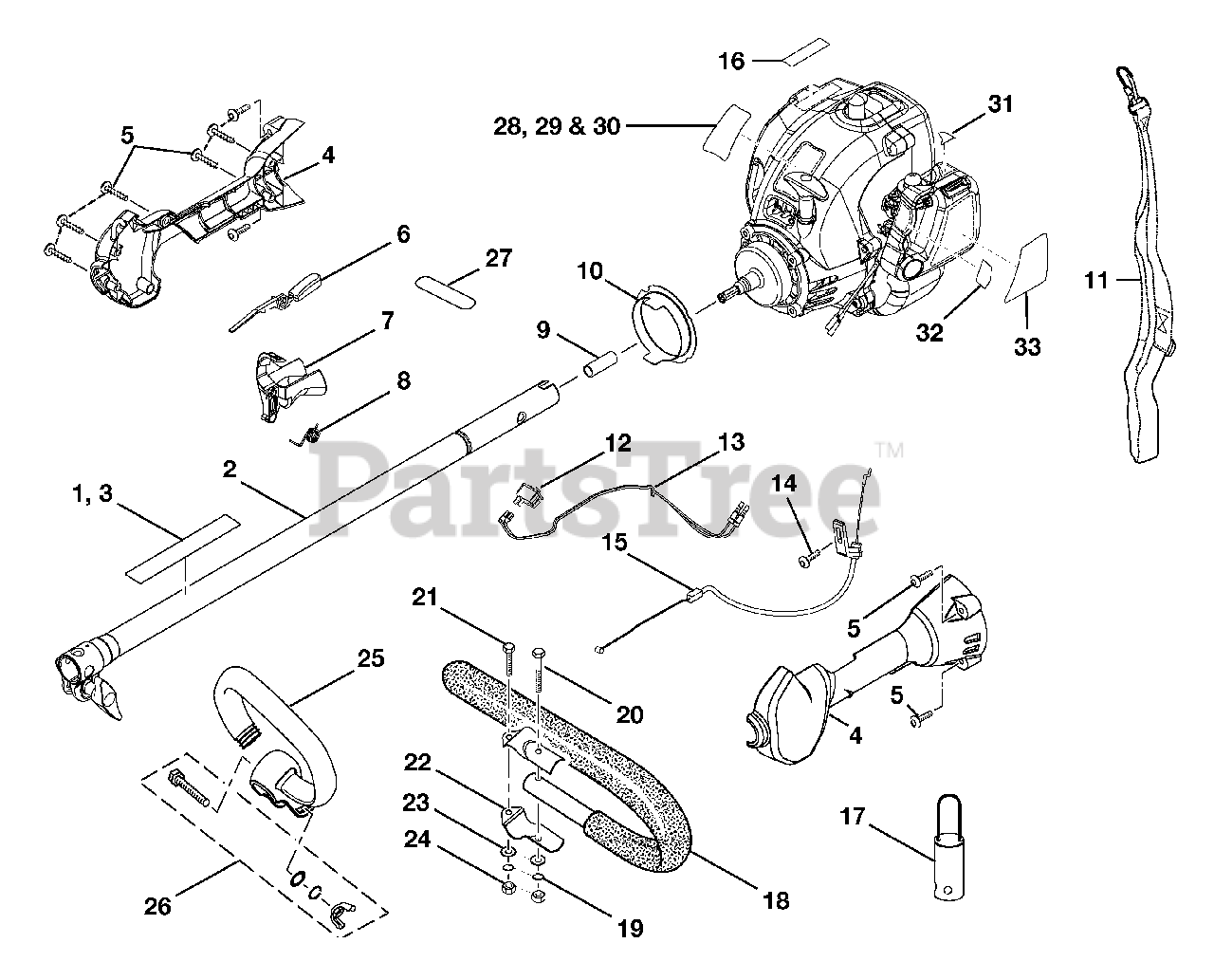

Upper Boom/Handle Assembly Parts Diagram

  • Title
1

Homelite 984032002

WARNING DECAL (CS and SS)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 985383001

BOOM ASSEMBLY (CS and SS)
(Superseded to 000998353)

$

$

Not available

Homelite 985384001

BOOM ASSEMBLY, UPPER (BC)
(Superseded to 000998354)

$

$

Not available

3

Homelite 984102002

WARNING DECAL (BC)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 985382001

HANDLE ASSEMBLY (W/OUT SCREWS)

$

$

Not available

5

Homelite 82589

HANDLE SCREW

$2.99

$

In Stock, Qty 8

0

6

Homelite PS06258

TRIGGER LOCK

$

$

Not available

7

$

$

Not available

8

$2.49

$

In Stock, only 2 left!

0

9

Homelite 986493001

SPRING
(Superseded to 678252001)

$

$

Not available

10

Homelite 985835001

RING GUARD

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 944701

SHOULDER STRAP (BC)
(Superseded to 308487001)

$11.99

$

In Stock, only 1 left!

0

12

Homelite PS02764

SWITCH (MOMENTARY CONTACT)

$

$

Not available

13

Homelite PA00387

LEAD ASSEMBLY

$6.99

$

Usually ships in 3-7 days

0

14

$1.99

$

Usually ships in 3-7 days

0

15

Homelite PS01177

THROTTLE CABLE

$1.49

$

In Stock, only 1 left!

0

16

Homelite 985157001

LOGO PLATE

$2.49

$

Usually ships in 3-7 days

0

17

Homelite PS02155

HANGER CAP
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0

18

Homelite A08130

"J" HANDLE AND GRIP (BC)
(Superseded to 308046009)

$27.99

$

In Stock, only 1 left!

0

19

Homelite 83009

LOCK WASHER (BC)

$8.49

$

Usually ships in 3-7 days

0

20

Homelite 82278

HEX HEAD BOLT (BC)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 82496

SCREW (BC)

$

$

Not available

22

Homelite 00422

HANDLE BAR CLAMP (BC)
(Superseded to 099075001007)

$1.49

$

In Stock, only 1 left!

0

23

Homelite 84004

WASHER (BC)
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 81242

HEX NUT (BC)

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 06542A

"D" HANDLE (CS and SS)
(Superseded to 308472001)

$

$

Not available

26

Homelite PA00249

FASTENER PARTS KIT (CS and SS)

$

$

Not available

27

Homelite 984240001

ON/OFF LABEL

$1.49

$

Usually ships in 3-7 days

0

28

Homelite 985162001

MODEL LABEL (CS30)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 985163001

MODEL LABEL (SS30)

$

$

Not available

30

Homelite 985164001

MODEL LABEL (BC30)

$

$

Not available

31

Homelite 985595001

PRIMER LABEL

$

$

Not available

32

Homelite 985593001

CHOKE LABEL

$

$

Not available

33

Homelite 985592001

STARTING LABEL

$

$

Not available

Homelite 983000401

OPERATOR'S MANUAL

$

$

Not available

Homelite 983000462

CUSTOMER SHEET

$

$

Not available

Homelite NLA

REPAIR SHEET

Note: (REV:04)

$

$

Currently unavailable
