RY 28161 - Ryobi Brush Cutter, 26cc Figure A Parts Diagram

Brush Cutter, 26cc

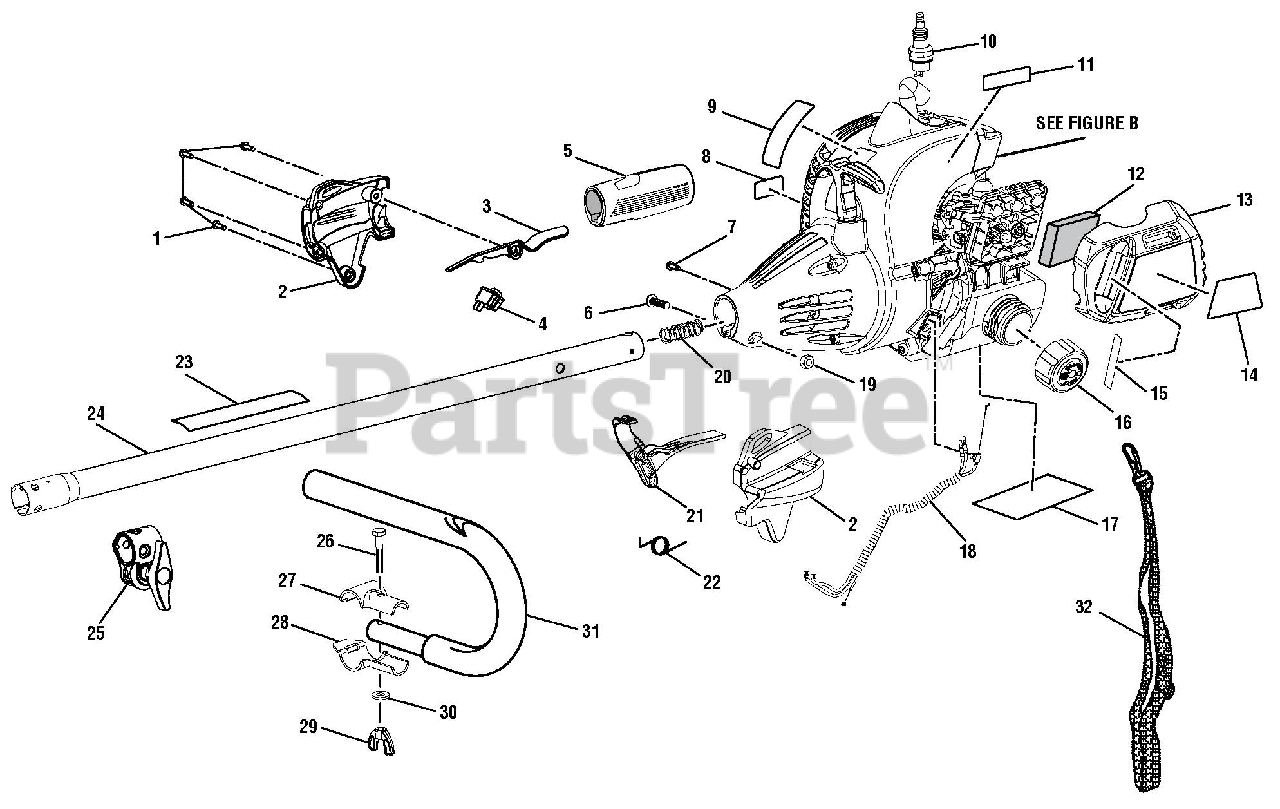

Figure A Parts Diagram

  • Title

1

Homelite 660563002

Screw (M4 x 20 mm)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 308869004

Control Handle Assembly
(Superseded to 310831005)

$9.49

$

In Stock, only 1 left!

0

3

Homelite 518695001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

4

Homelite 760961002

Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

5

Homelite 570234002

Rear Handle
(Superseded to 570234010)

$4.99

$

In Stock, only 2 left!

0

6

Homelite 660697002

Bolt (M6 x 20 mm)

$1.99

$

In Stock, only 1 left!

0

7

Homelite 660925011

Screw (M4 x 8 mm., Torx T.F.)

$1.99

$

In Stock, only 3 left!

0

8

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 940705011

Logo Label

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 870174001

Spark Plug (Champion RCJ6Y)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$4.49

$

In Stock, Qty 20+

0

11

Homelite 941788001

Primer Label

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 900952011

Air Filter

$1.99

$

In Stock, Qty 15

0

13

Homelite 525105002

Air Box Cover
(Superseded to 311509003)

$

$

Not available

14

Homelite 940734131

Starting Label

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 940216004

Run Start Label

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 310817004

Fuel Cap Assembly (1.5 in. Diameter)

$2.99

$

In Stock, Qty 19

0

17

Homelite 941790001

Fuel Tank Warning Label

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 311262001

Throttle and Lead Assembly

$7.99

$

Usually ships in 3-7 days

0

19

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

20

Homelite 690140011

Compression Spring
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

21

Homelite 518696001

Throttle Trigger

$

$

Not available

22

Homelite 690694002

Throttle Spring

$1.99

$

In Stock, only 4 left!

0

23

Homelite 940657034

Warning Decal

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 308470059

Upper Boom Assembly

Note: (Inc. Key Nos. 23 and 25)

$

$

Not available

25

Homelite 308045013

Boom Clamp Assembly

$

$

Not available

26

Homelite 660643001

Bolt (1/4-20 x 1-1/2 in., Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 638564001

Top "J" Handle Clamp

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 638565001

Bottom "J" Handle Clamp

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

30

Homelite 678013001

Washer

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 308046005

"J" Handle and Grip
(Superseded to 308046009)

$27.99

$

In Stock, only 1 left!

0

32

Homelite 308487001

Shoulder Harness

$11.99

$

In Stock, only 1 left!

0

Homelite 990000677

Operator's Manual

Note: Not Shown

$

$

Not available
