RY 28140 - Ryobi String Trimmer, 26cc Figure A Parts Diagram

String Trimmer, 26cc

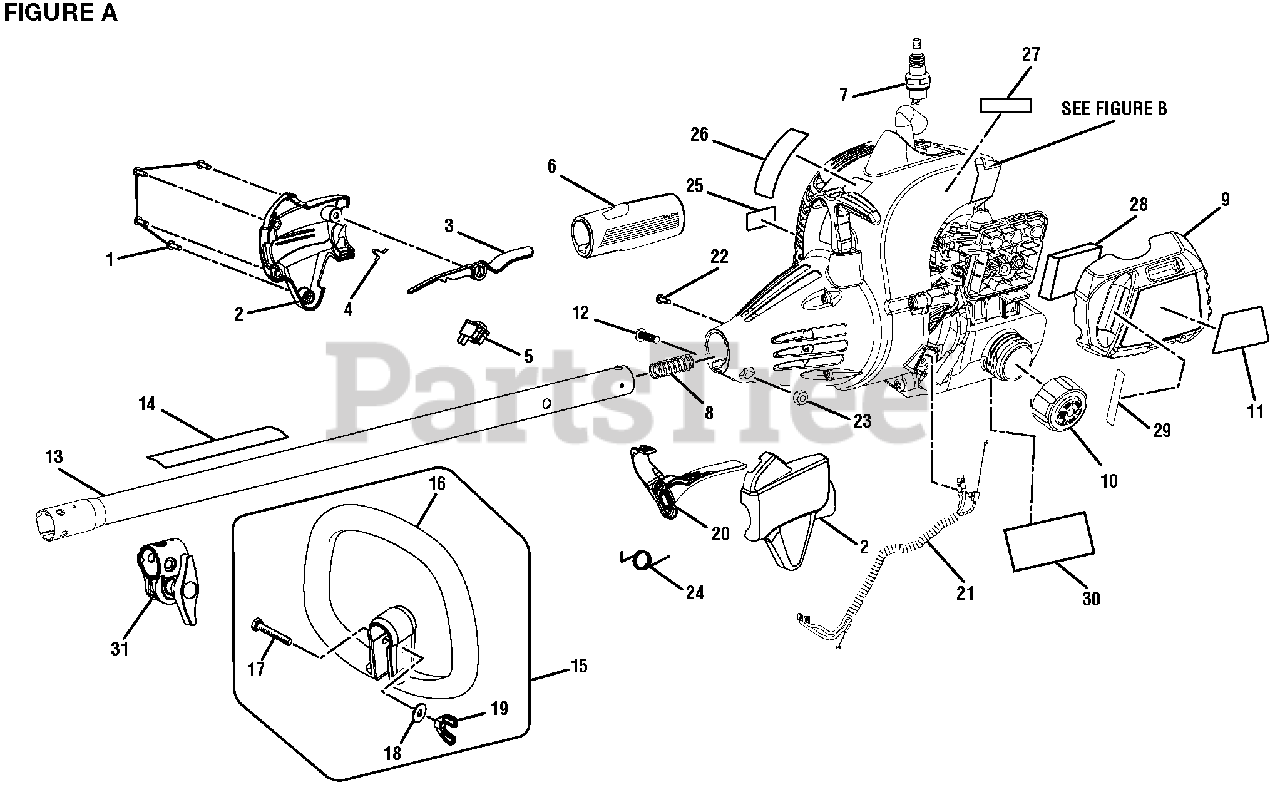

Figure A Parts Diagram

  • Title

1

Homelite 660563002

Screw (M4 x 20 mm)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 308869002

Control Handle Assembly

$

$

Not available

3

Homelite 518695001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

4

Homelite 638431001

Strap Hanger

$1.99

$

In Stock, only 2 left!

0

5

Homelite 760700002

Switch (Momentary Contact)
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

6

Homelite 570234002

Rear Handle
(Superseded to 570234010)

$4.99

$

In Stock, only 2 left!

0

7

Homelite 870174001

Spark Plug (Champion RCJ6Y)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$4.49

$

In Stock, Qty 20+

0

8

Homelite 690140011

Compression Spring
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 525105002

Air Box Cover
(Superseded to 311509003)

$

$

Not available

10

Homelite 310817004

Fuel Cap Assembly (1.5 in. Diameter)

$2.99

$

In Stock, Qty 19

0

11

Homelite 940734131

Label

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 660697002

Bolt (M6 x 20 mm)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 308470013

Upper Boom Assembly

$

$

Not available

14

Homelite 940657034

Warning Decal

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 308991001

Front Handle Assembly

Note: (Inc. Key Nos. 16-19)

$

$

Not available

16

Homelite 518738001

Front Handle

$

$

Not available

17

Homelite 660643008

Bolt (1/4-20 x 40 mm)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 678008001

Washer

$1.99

$

In Stock, only 1 left!

0

19

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

20

Homelite 518696001

Throttle Trigger

$

$

Not available

21

Homelite 308842004

Throttle and Lead Assembly

$

$

Not available

22

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Hd.)

$1.99

$

In Stock, only 3 left!

0

23

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

24

Homelite 690694002

Throttle Spring

$1.99

$

In Stock, only 4 left!

0

25

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 940705011

Logo Label

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 941788001

Primer Label

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 900952011

Air Filter

$1.99

$

In Stock, Qty 15

0

29

Homelite 940216004

Start Run Label

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 941790001

Fuel Tank Warning Label

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 308045006

Boom Clamp

$

$

Not available

Homelite 990000224

Operator's Manual (R Y28100)

Note: Not Shown

$

$

Currently unavailable

Homelite 990000227

Operator's Manual (RY28120 and RY28140)

Note: Not Shown

$

$

Not available
