RY 28045 - Ryobi String Trimmer, 26cc Figure C Parts Diagram

String Trimmer, 26cc

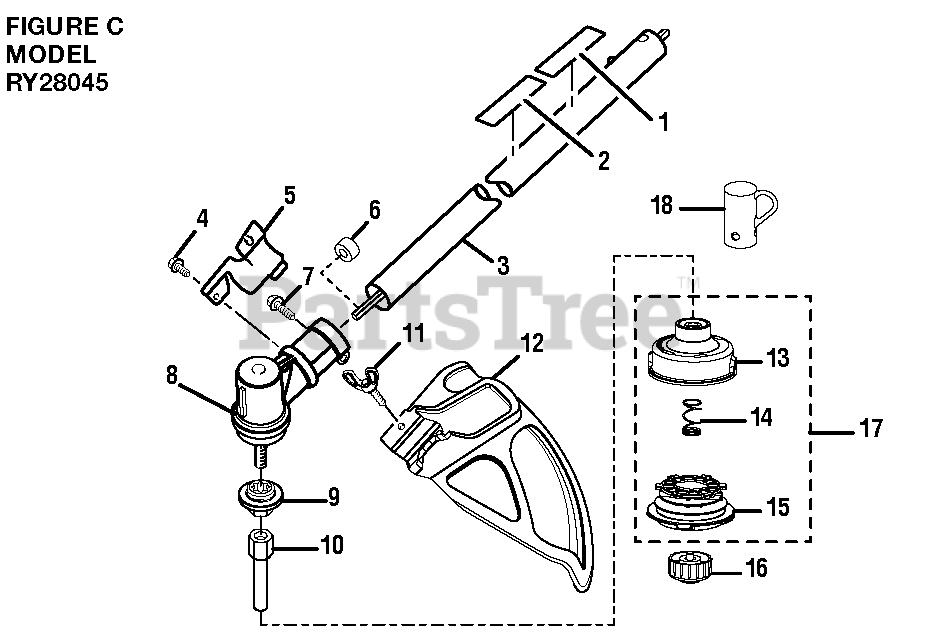

Figure C Parts Diagram

  • Title

1

Homelite 940726013

Logo Label

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 940230132

Warning Label
(Superseded to 984032001)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 308035011

Straight Shaft Assembly

$13.99

$

Usually ships in 3-7 days

0

4

Homelite 660736001

Screw (10-24 x 5/8 in.)
(Superseded to 983774003)

$2.49

$

In Stock, Qty 5

0

5

Homelite 638125001

Clamp
(Superseded to PS04420)

$4.99

$

In Stock, only 2 left!

0

6

Homelite 518367001

Spacer

$1.99

$

In Stock, only 3 left!

0

7

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

8

Homelite 308210002

Gear Head
(Superseded to 308210009)

$48.99

$

In Stock, only 1 left!

0

9

Homelite 678011002

Washer

$

$

Not available

10

Homelite 678019002

Arbor

$

$

Not available

11

Homelite 660886001

Wing Screw (1/4-20 x 1-1/4 in.)

$1.99

$

In Stock, Qty 5

0

12

Homelite 308473001

Grass Deflector Assembly

Note: (Inc. Key No. 11)

$

$

Not available

13

Homelite 310643001

String Head Housing
(Superseded to 310643004)

$8.99

$

In Stock, only 1 left!

0

14

Homelite 678022001

Spring
(Superseded to 099068001004)

$1.99

$

In Stock, only 3 left!

0

15

Homelite 310412001

Spool
(Superseded to 312223001)

$

$

Not available

16

Homelite 308042003

Spool Retainer

$7.49

$

In Stock, Qty 5

0

17

Homelite 309562002

String Head Assembly
(Superseded to 309562008)

Note: (Inc. Key Nos. 13-15)

$

$

Not available

18

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.99

$

In Stock, Qty 6

0
