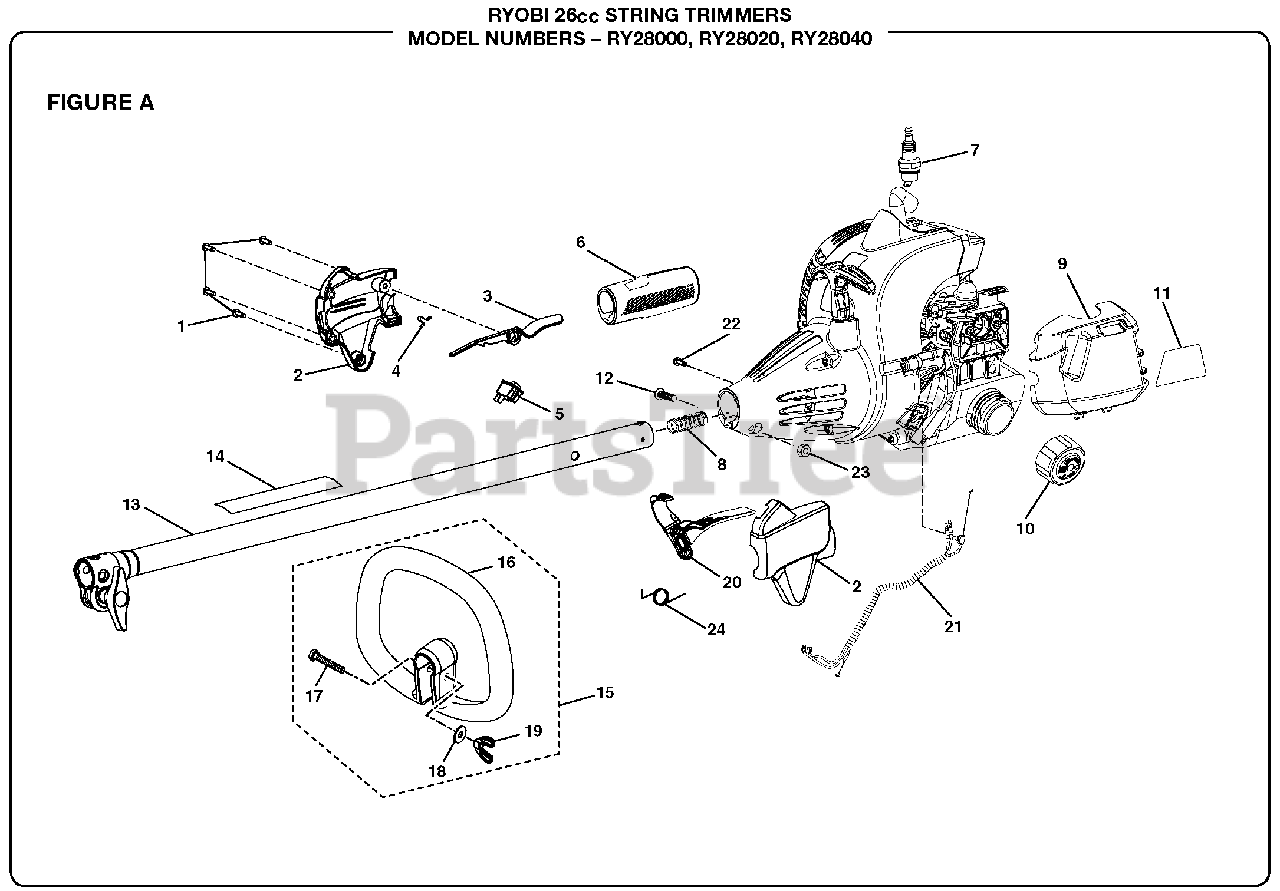

RY 28000 - Ryobi String Trimmer, 26cc Figure A Parts Diagram

String Trimmer, 26cc

Figure A Parts Diagram

  • Title

1

Homelite 660563002

Screw (M4 x 20 mm)

$1.99

$

In Stock, Qty 6

0

2

Homelite 308869002

Control Handle Assembly

$

$

Not available

3

Homelite 518695001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

4

Homelite 638431001

Strap Hanger

$1.99

$

In Stock, only 2 left!

0

5

Homelite 760700002

Switch (Momentary Contact)
(Superseded to 760700001)

$4.49

$

In Stock, only 1 left!

0

6

Homelite 570234002

Rear Handle
(Superseded to 570234010)

$4.99

$

In Stock, only 2 left!

0

7

Homelite 870174001

Spark Plug (Champion RCJ6Y)

$4.99

$

In Stock, Qty 20+

0

8

Homelite 690140011

Compression Spring
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

9

Homelite 518777004

Air Box Cover

$1.49

$

In Stock, Qty 5

0

10

Homelite 310817001

Fuel Cap Assembly (1.5 in. Diameter)

$

$

Not available

11

Homelite 940686059

Label

$

$

Not available

12

Homelite 660697002

Bolt (M6 x 20 mm)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 308470013

Upper Boom Assembly

$

$

Not available

14

Homelite 940657034

Warning Decal

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 308991001

Front Handle Assembly

$

$

Not available

16

Homelite 518738001

Front Handle

$

$

Not available

17

Homelite 660643008

Bolt (1/4-20 x 40 mm)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 678008001

Washer

$1.99

$

In Stock, only 1 left!

0

19

Homelite 518949001

Wing Nut
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

20

Homelite 518696001

Throttle Trigger

$

$

Not available

21

Homelite 308842004

Throttle and Lead Assembly

$

$

Not available

22

Homelite 660634001

Screw (8-16 x 5/16 in. Torx T.F.)

$1.99

$

In Stock, Qty 20+

0

23

Homelite 678029002

Hex Nut (M6)

$1.99

$

In Stock, Qty 6

0

24

Homelite 690694002

Spring

$1.99

$

In Stock, only 4 left!

0

Homelite 940705011

Logo Label

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 940654088

Combustion Warning Label

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 940991028

Model Label (CS26)

Note: (Not Shown)

$

$

Not available

Homelite 940991030

Model Label (SS26)

Note: (Not Shown)

$

$

Not available

Homelite 940991032

Model Label (EX26)

Note: (Not Shown)

$

$

Currently unavailable

Homelite 987000847

Operator's Manual (EX26) (960736004)

Note: (Not Shown)

$

$

Not available

Homelite 987000875

Operator's Manual (CS26 & SS26) (960736004)

Note: (Not Shown)

$

$

Not available
