RY 26 BVLG (090155045) - Ryobi Blower Vacuum, Rev 01 (2018-09) Figure A Parts Diagram

Blower Vacuum, Rev 01

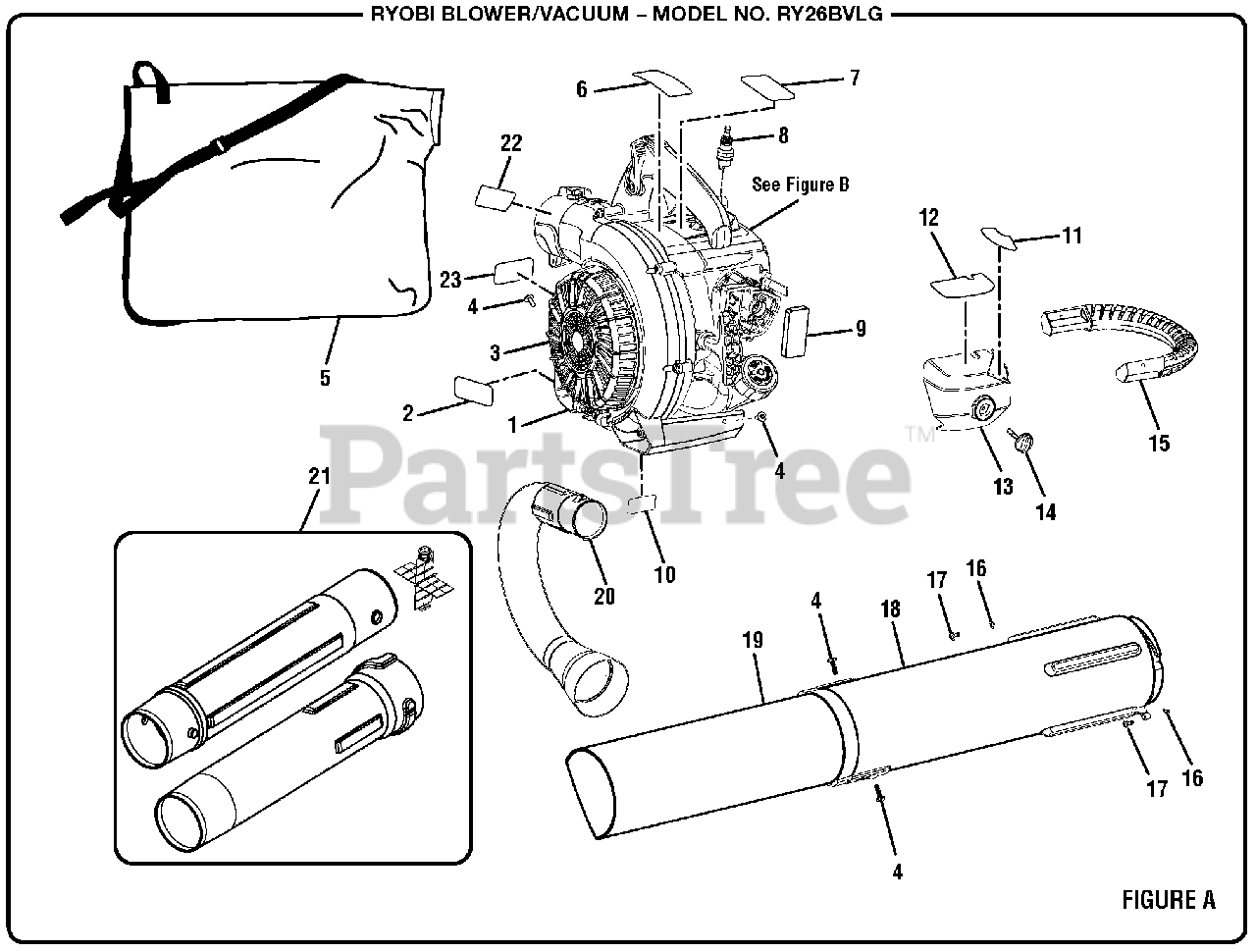

Figure A Parts Diagram

  • Title

1

Homelite 678726001

Vacuum Door Spring

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 940654088

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 521500014

Vacuum Door

$7.99

$

Usually ships in 3-7 days

0

4

Homelite 660621001

Vacuum Tube Screw (10-14 x 1/2 in.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

5

Homelite 970694003

Vacuum Bag w/Shoulder Strap

$24.99

$

Usually ships in 3-7 days

0

6

Homelite 941727004

Warning Label

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 940752006

Logo Label (Small)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 870174002

Spark Plug (L7RTC)
(Superseded to 870170001)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$10.99

$

Usually ships in 3-7 days

0

9

Homelite 563747002

Filter

$1.99

$

In Stock, only 3 left!

0

10

Homelite 940803288

EMC Label (UT26HBVEMC only)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 940868001

Choke Label

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 940734171

Starting Label

$

$

Not available

13

Homelite 310804005

Air Filter Cover

Note: (Inc. Key 11-12 and 14)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 590461006

Knob

$1.99

$

In Stock, only 2 left!

0

15

Homelite 521504002

Vacuum Handle

$3.99

$

In Stock, only 1 left!

0

16

Homelite 650027001

E-Ring

$1.99

$

In Stock, only 4 left!

0

17

Homelite 660880001

Screw (1/4-20 x 3/4 in.)

$1.99

$

In Stock, only 2 left!

0

18

Homelite 580892001

Upper Vacuum Tube

$

$

Not available

19

Homelite 570562001

Lower Vacuum Tube

$6.99

$

In Stock, only 1 left!

0

20

Homelite 580956002

Vacuum Bag Adaptor

$

$

Not available

21

Homelite 360152002

Blower Tube Assembly

$7.49

$

Usually ships in 3-7 days

0

22

Homelite 941797006

Tube Removal Label

$

$

Currently unavailable

23

Homelite 940680052

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 995000113

Operator's Manual

Note: Not Shown

$

$

Not available
