RY 254 BC (090333004) - Ryobi Brush Cutter Figure B Parts Diagram

Brush Cutter

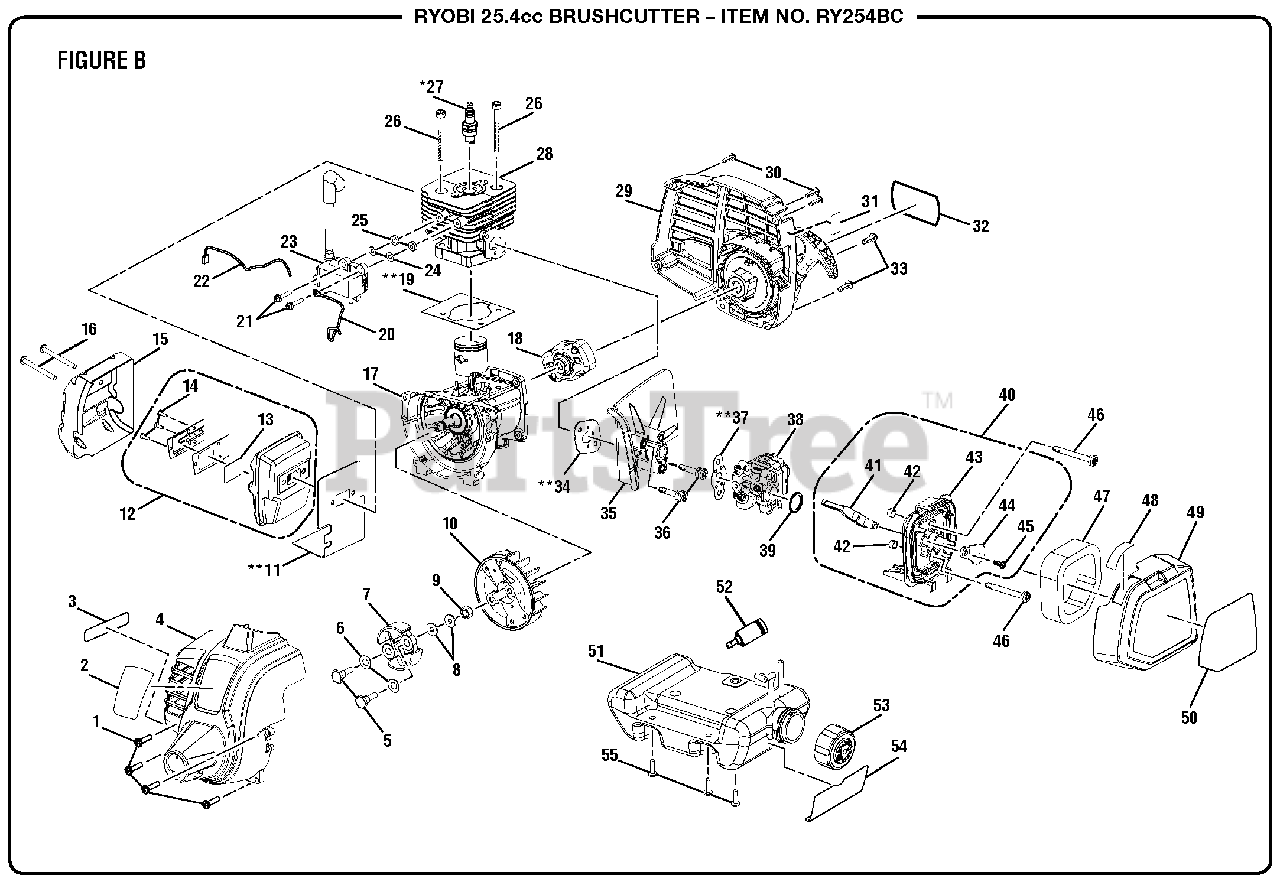

Figure B Parts Diagram

  • Title

1

Homelite 660344001

Screw w/Washer (M5 x 20 mm, T20 Torx Pan Hd)
(Superseded to 6634401)

$

$

Not available

2

Homelite 940627041

Logo Label (Front)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 310304006

Front Housing Assembly
(Superseded to 205082001)

Note: (Inc Key Nos 2-3)

$

$

Not available

5

Homelite 660353001

Clutch Shoulder Bolt (M6 x 225 mm, Hex Hd)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 690696001

Curved Washer
(Superseded to 6969601)

$1.99

$

In Stock, only 3 left!

0

7

Homelite 307091001

Clutch Assembly

$

$

Not available

8

Homelite 690695001

Washer (ID6 x OD15 x 12t)
(Superseded to 983788071)

$

$

Not available

9

Homelite 690689001

Flywheel Nut
(Superseded to 6968901)

$

$

Not available

10

Homelite 307156001

Flywheel

$20.99

$

Usually ships in 3-7 days

0

11

Homelite 630002032

Muffler Gasket

Note: Non-Reuseable Parts = Keys 11, 21, 36 and 39

$3.99

$

In Stock, only 2 left!

0

12

Homelite 300748043

Muffler Assembly

Note: (Inc Key Nos 13-14)

$81.99

$

Usually ships in 3-7 days

0

13

Homelite 638268001

Screen
(Superseded to 984753001)

$2.99

$

In Stock, only 1 left!

0

14

Homelite 660870001

Screw (6-20 x 1/4 in, T20 Torx Pan Hd)
(Superseded to 984759001)

$

$

Not available

15

Homelite 638027002

Heat Shield

$

$

Not available

16

Homelite 660347001

Screw (M5 x 50 mm, T25 Torx Pan Hd)

$1.99

$

In Stock, only 1 left!

0

17

Homelite 307192001

Crankcase Assembly

$129.99

$

Usually ships in 3-7 days

0

18

Homelite 308004003

Starter Cup

$10.99

$

In Stock, Qty 5

0

19

Homelite 900709007

Gasket

Note: Non-Reuseable Parts = Keys 11, 21, 36 and 39

$1.99

$

In Stock, only 4 left!

0

20

Homelite 290143002

Lead Wire (Red)
(Superseded to 2914302)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 660968001

Screw w/Washer (M4 x 19 mm, T20 Torx Pan Hd ST)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 290143001

Lead Wire (Black)
(Superseded to 2914301)

$3.49

$

Usually ships in 3-7 days

0

23

Homelite 291337001

Coil Boot Assembly
(Superseded to 291337008)

$40.99

$

Usually ships in 3-7 days

0

24

Homelite 690969001

Washer (ID42 x OD10 x 1t)

$1.99

$

In Stock, Qty 5

0

25

Homelite 590462001

Spacer (Phenolic)

$2.99

$

In Stock, only 2 left!

0

26

Homelite 660342001

Screw (M5 x 22 mm, Soc Hd)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 870170001

Spark Plug (Champion RCJ4)

Note: Standard Hardware Item - May Be Purchased Locally

$10.99

$

Usually ships in 3-7 days

0

28

Homelite 642368001

Cylinder

$65.99

$

Usually ships in 3-7 days

0

29

Homelite 307157002

Rear Housing and Starter Assembly

Note: (Inc Key Nos 31-32)

$27.99

$

In Stock, only 1 left!

0

30

Homelite 660563001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)
(Superseded to 660734001)

$1.99

$

In Stock, only 3 left!

0

31

Homelite 941788001

Primer Bulb Location Label

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 940627042

Logo Label (Rear)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 660351001

Cap Screw w/Washer (M5 x 16 mm, T25 Torx Soc Hd)
(Superseded to 6635101)

$1.99

$

In Stock, only 3 left!

0

34

Homelite 903033001

Insulator Gasket
(Superseded to 903279002)

Note: Non-Reuseable Parts = Keys 11, 21, 36 and 39

$

$

Not available

35

Homelite 528275001

Heat Dam Insulator

$10.99

$

Usually ships in 3-7 days

0

36

Homelite 662210001

Screw (M5 x 27 mm, T25 Torx Pan Hd ST)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 903034001

Gasket

Note: Non-Reuseable Parts = Keys 11, 21, 36 and 39

$1.99

$

In Stock, Qty 5

0

38

Homelite 307160001

Carburetor Assembly
(Superseded to 307160011)

$63.99

$

In Stock, Qty 5

0

39

Homelite 563841001

Carburetor O-Ring

$1.49

$

In Stock, only 4 left!

0

40

Homelite 307191001

Airbox Base Assembly

Note: (Inc Key Nos 41-45)

$7.99

$

In Stock, only 1 left!

0

41

Homelite 591442001

Choke Lever

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 678515015

Compression Limiters

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 591440001

Air Box Base

$2.49

$

In Stock, Qty 5

0

44

Homelite 590946001

Choke Plate
(Superseded to 5994601)

$1.99

$

In Stock, only 1 left!

0

45

Homelite 660345001

Screw (M4 x 12 mm, T20 Torx Pan Hd ST)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

46

Homelite 660454015

Screw (M5 x 44 mm, T20 Torx Pan Hd)

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

48

Homelite 940647111

Choke Position Label

$1.99

$

In Stock, Qty 5

0

49

Homelite 308649003

Airbox Cover

Note: (Inc Key Nos 48 & 50)

$

$

Not available

50

Homelite 940686168

Starting Instructions Label

$1.99

$

In Stock, only 2 left!

0

51

Homelite 308682055

Fuel Tank and Cap Assembly

Note: (Inc Key Nos 52-54)

$21.99

$

Usually ships in 3-7 days

0

52

Homelite 310976001

Fuel Filter

$

$

Not available

53

Homelite 310817004

Fuel Cap Assembly

$2.99

$

In Stock, Qty 19

0

54

Homelite 940864004

Fuel Mixture Label

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 660970002

Shoulder Screw (M4 x 14 mm, T25 Torx Truss Hd ST)

$1.99

$

In Stock, only 4 left!

0

Homelite 000998930

Spark Arr estor Kit

Note: (Inc Key Nos 13-14); Not Shown

$2.49

$

Usually ships in 3-7 days

0

Homelite 120900222

High Altitude Kit (Not Included)
(Superseded to 120900269)

Note: Not Shown

$4.99

$

Usually ships in 3-7 days

0
