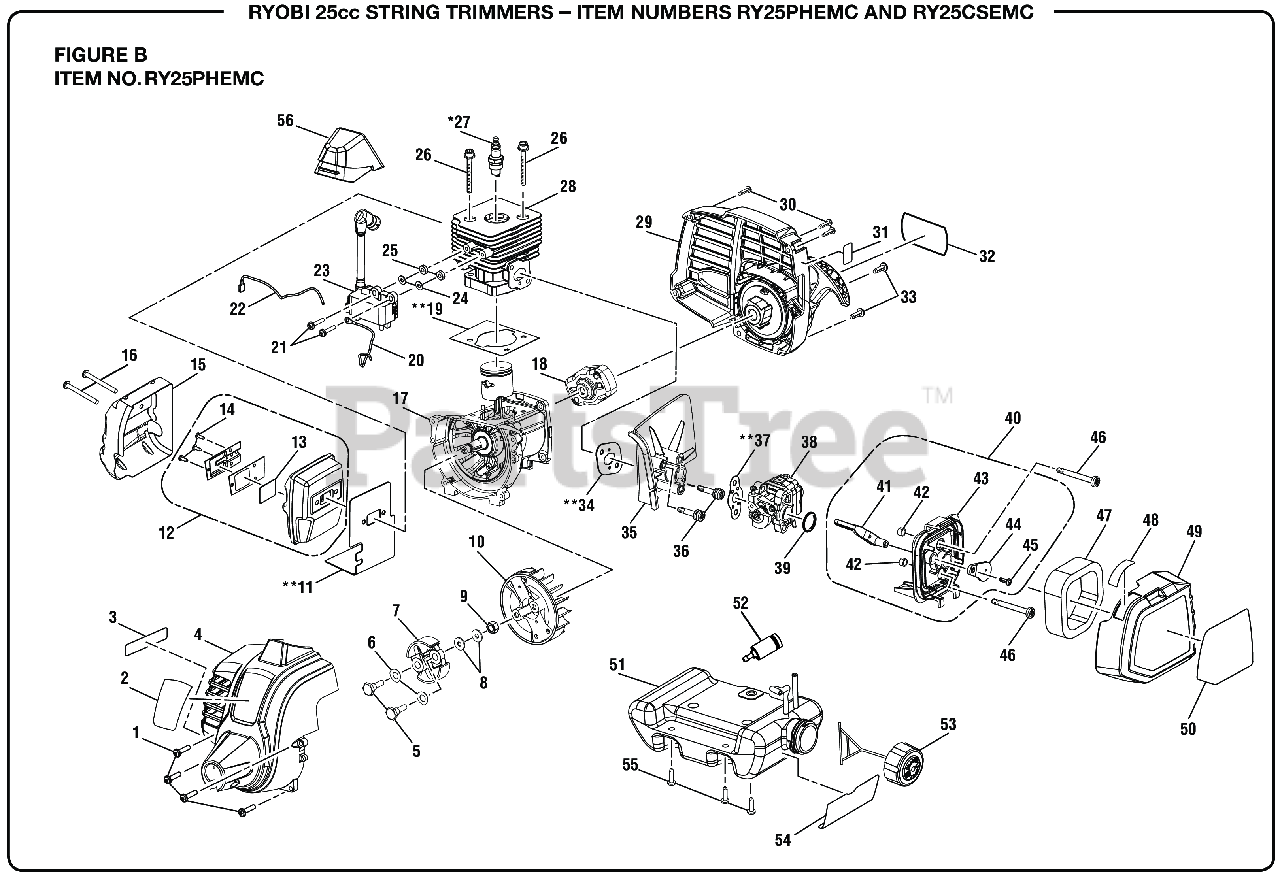

RY 25 PHEMC (090333026) - Ryobi String Trimmer, Rev 02 (2019-02) FIGURE B Parts Diagram

String Trimmer, Rev 02

FIGURE B Parts Diagram

  • Title

1

Homelite 660344001

Cap Screw w/Washer (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6634401)

$

$

Not available

2

Homelite 940627041

Logo Label (Front)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 940654088

Warning Label (Combustion)

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 205082001

Front Housing Assembly w/ Labels

Note: (Inc. Key Nos. 2-3)

$

$

Not available

5

Homelite 660353001

Clutch Shoulder Bolt (M6 x 22.5 mm, Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 690696001

Washer (Curved)
(Superseded to 6969601)

$1.99

$

In Stock, only 3 left!

0

7

Homelite 307091001

Clutch Assembly

$

$

Not available

8

Homelite 690695001

Washer (ID6 x OD15 x 1.2t)
(Superseded to 983788071)

$

$

Not available

9

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

10

Homelite 307156001

Flywheel

$20.99

$

Usually ships in 3-7 days

0

11

Homelite 630002032

Muffler Gasket

$3.99

$

In Stock, only 2 left!

0

12

Homelite 300748043

Muffler Assembly

Note: (Inc. Key Nos. 13-14)

$81.99

$

Usually ships in 3-7 days

0

13

Homelite 638268001

SCREEN
(Superseded to 984753001)

$2.99

$

In Stock, only 1 left!

0

14

Homelite 660870001

Screw (6-20 x 1/4 in., T20 Torx Pan Hd. S.T.)
(Superseded to 984759001)

$

$

Not available

15

Homelite 638027002

HEAT SHIELD

$

$

Not available

16

Homelite 660347001

Screw (M5 x 50 mm, Torx Slotted Recessed Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

17

Homelite 307192001

Crankcase Assembly

$129.99

$

Usually ships in 3-7 days

0

18

Homelite 308004003

Starter Cup

$10.99

$

In Stock, Qty 5

0

19

Homelite 900709007

Gasket

$1.99

$

In Stock, only 4 left!

0

20

Homelite 290143002

Lead Wire Assembly, Red
(Superseded to 2914302)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 660968004

Screw (M4 x 22 mm, T20 Torx Slotted Recessed Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 290143001

Lead Wire Assembly, Black
(Superseded to 2914301)

$3.49

$

Usually ships in 3-7 days

0

23

Homelite 291337005

Coil Boot Assembly

$50.99

$

Usually ships in 3-7 days

0

24

Homelite 690969001

Flat Washer (OD10 x ID42 x 1t)

$1.99

$

In Stock, Qty 5

0

25

Homelite 590462001

Phenolic Spacer (Ignition Module)

$2.99

$

In Stock, only 2 left!

0

26

Homelite 660342001

Screw (M5 x 22 mm, T25 Torx Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

27

Homelite 870174001

SPARK PLUG CHAMPION - RCJ-6Y

$4.99

$

In Stock, Qty 20+

0

28

Homelite 642368001

Cylinder

$65.99

$

Usually ships in 3-7 days

0

29

Homelite 205097001

Rear Housing and Starter Assembly

Note: (Inc. Key Nos. 31-32)

$

$

Not available

30

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, Qty 6

0

31

Homelite 941788001

Primer Bulb Location Label

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 940627042

Shoulder Screw (M4 x 14 mm, T25 Torx Truss Hd.

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 660351001

Cap Screw w/Washers (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6635101)

$1.99

$

In Stock, only 3 left!

0

34

Homelite 903279002

Heat Dam Insulator

$

$

Not available

35

Homelite 528275001

Screw (M5 x 30 mm, T25 Torx Pan Hd. S.T.)

$10.99

$

Usually ships in 3-7 days

0

36

Homelite T662210002

Screw w/Washers (M5 x 30 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 903034001

Gasket

$1.99

$

In Stock, Qty 5

0

38

Homelite 307160009

Carburetor Assembly

Note: (Inc. Key No. 39)

$49.99

$

In Stock, only 1 left!

0

39

Homelite 563841001

Carburetor O-Ring

$1.49

$

In Stock, only 4 left!

0

40

Homelite 307191001

Airbox Base Assembly

Note: (Inc. Key Nos. 41-45)

$7.99

$

In Stock, only 1 left!

0

41

Homelite 591442001

Compression Limiters

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 678515015

Washer (ID5.8 x OD11.5 x 1.7t)

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 591440001

Air Box Base

$2.49

$

In Stock, Qty 5

0

44

Homelite 590946001

Screw (M4 x 12 mm, T20 Torx Pan Hd. S.T.)
(Superseded to 5994601)

$1.99

$

In Stock, only 1 left!

0

45

Homelite 660345001

Screw (M4 x 12 mm, Slotted Recessed Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

46

Homelite 660454015

Screw (M5 x 44 mm,T25 Torx Hd. Carburetor)

$1.99

$

Usually ships in 3-7 days

0

47

Homelite 560873001

Air Filter (Element)
(Superseded to 5687301)

$

$

Not available

48

Homelite 940647111

Choke Position Label

$1.99

$

In Stock, Qty 5

0

49

Homelite 308649003

Airbox Cover (Inc. Key Nos. 48 & 50)

Note: (Inc. Key Nos. 48 & 50)

$

$

Not available

50

Homelite 940686168

Starting Instructions Label

$1.99

$

In Stock, only 2 left!

0

51

Homelite 205043001

Fuel Tank and Cap Assembly

Note: (Inc. Key Nos. 52-54)

$

$

Not available

52

Homelite 310976001

Fuel Filter

$

$

Not available

53

Homelite 310816018

Fuel Cap Assembly

$11.99

$

In Stock, only 1 left!

0

54

Homelite 940864004

Fuel Mixture Label

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 660970002

Shoulder Screw w/Washer (M4 x 14 mm, T25 Torx Truss Hd.)

$1.99

$

In Stock, only 4 left!

0

56

Homelite 534331001

Spark Plug Boot

$1.99

$

Usually ships in 3-7 days

0

Homelite 000998930

Spark Arr estor Kit

Note: Not Shown | (Inc. Key Nos. 13-14)

$2.49

$

Usually ships in 3-7 days

0

Homelite 120900269

High Altitude Kit (Not Included)

Note: Not Shown

$4.99

$

Usually ships in 3-7 days

0
