RY 25 CSEMC VNM (095333125) - Ryobi String Trimmer, Rev 01 (2021-04) FIGURE A Parts Diagram

String Trimmer, Rev 01

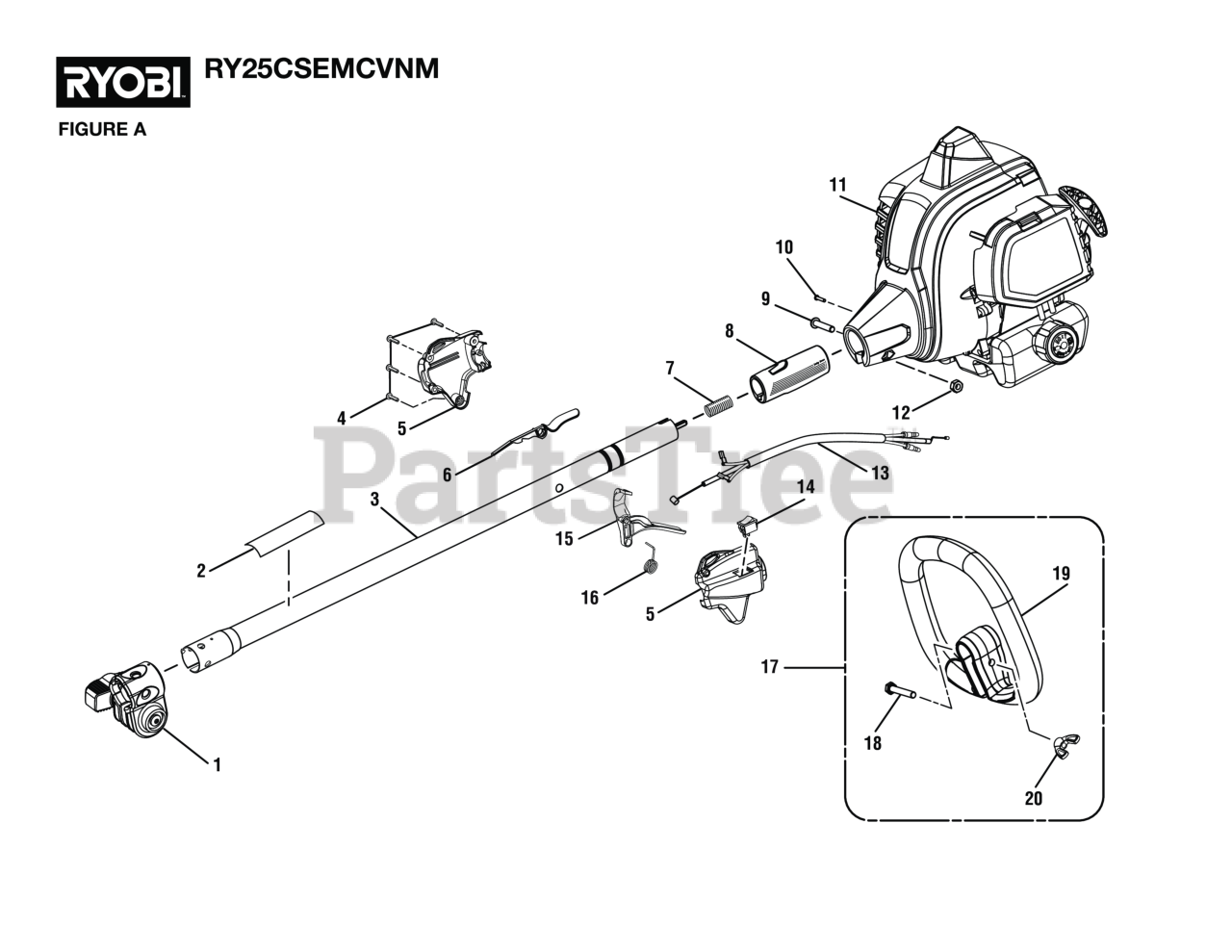

FIGURE A Parts Diagram

  • Title

1

Homelite 315386001

Boom Clamp Assembly

$19.99

$

Usually ships in 3-7 days

0

2

Homelite 940657164

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 205370001

Upper Boom Assembly (Inc. Key Nos. 1-2)

Note: (Inc. Key Nos. 18-20)

$41.99

$

In Stock, only 2 left!

0

4

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

In Stock, only 4 left!

0

5

Homelite 310831005

Control Handle Assembly (Inc. Key No. 6)

Note: (Inc. Key No. 4)

$9.49

$

In Stock, only 1 left!

0

6

Homelite 518695012

Trigger Lock

$1.99

$

In Stock, Qty 5

0

7

Homelite 690140011

COMPRESSION SPRING
(Superseded to 06713)

$1.99

$

In Stock, only 3 left!

0

8

Homelite 570234010

Rear Handle Grip

$4.99

$

In Stock, only 2 left!

0

9

Homelite T660697001

Screw (M6 x 30 mm, T27 Torx Button Hd.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 660925011

Screw (M4 x 8 mm, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 3 left!

0

11

Powerhead Assembly

Note: See Figure B

$

$

Not available

12

Homelite 678029002

Hex Nut (M6.3 x 1)

$1.99

$

In Stock, Qty 6

0

13

Homelite 307318001

Throttle Cable and Wire Assembly

$10.99

$

In Stock, only 1 left!

0

14

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 518696020

Trigger

$1.99

$

In Stock, only 4 left!

0

16

Homelite 690694002

Torsion Spring (Throttle Trigger)

$1.99

$

In Stock, only 4 left!

0

17

Homelite 308991003

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 18-20)

$13.99

$

Usually ships in 3-7 days

0

18

Homelite 660643008

Screw (1/4-20 x 40 mm, Cap Hex Hd.)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 526764002

Front Handle

$9.49

$

Usually ships in 3-7 days

0

20

Homelite 518949001

Wing Nut (1/4-20, Plastic)
(Superseded to PS02453)

$2.49

$

In Stock, only 1 left!

0

Homelite 998000028

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
