RY 25 AXB VNM (095159117) - Ryobi Jet Fan Blower, Rev 02 (2021-12) FIGURE A Parts Diagram

Jet Fan Blower, Rev 02

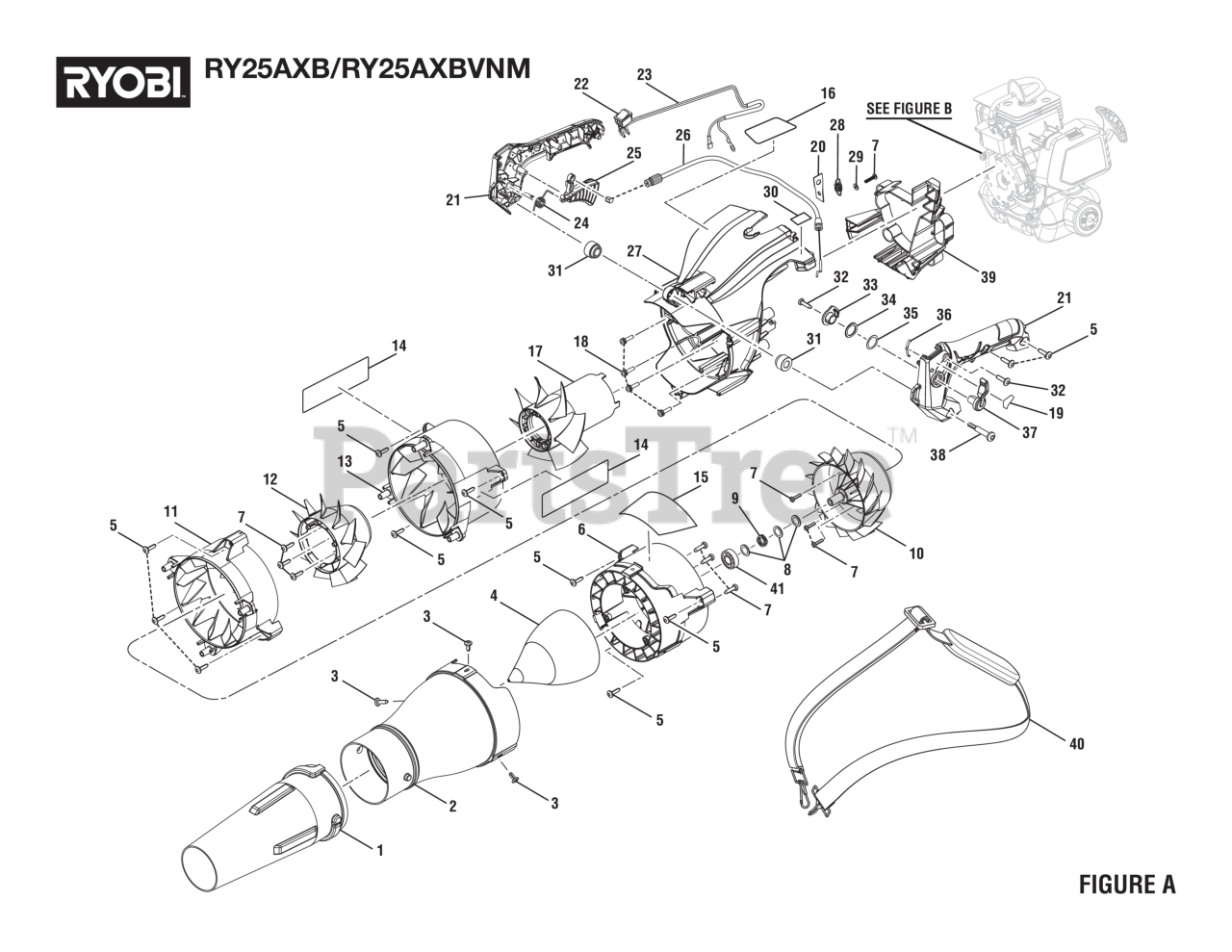

FIGURE A Parts Diagram

  • Title

1

Homelite 580262001

Blower End Nozzle

$7.49

$

In Stock, only 1 left!

0

2

Homelite 529733001

Reducer Nozzle

$7.99

$

In Stock, only 1 left!

0

3

Homelite 660621001

Vacuum Tube Screw (10-14 x 1/2 in., T25 Torx Truss Hd. T.F.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

4

Homelite 529734001

Reducer Cone

$5.49

$

Usually ships in 3-7 days

0

5

Homelite 660629005

Screw (10-14 x 19 mm, T25 Torx Truss Pan Hd. T.F.)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 314282001

Axial Stator w/Bearing Assembly Stage 3
(Superseded to 529729001)

Note: (Inc. Key No. 41)

$

$

Not available

7

Homelite 660563001

Screw (M4 x 1.41 mm x 18 mm, T20 Torx Pan Hd. T.F)
(Superseded to 660734001)

$1.99

$

In Stock, only 3 left!

0

8

Homelite 637311001

Washer (OD18 x ID12.15 x 1.5t)

$1.99

$

In Stock, Qty 5

0

9

Homelite 637049002

Wave Spring

$5.49

$

In Stock, only 1 left!

0

10

Homelite 529732001

Axial Fan (Stage Three)

$17.99

$

Usually ships in 3-7 days

0

11

Homelite 529728001

Axial Stator (Stage 2)

$21.99

$

In Stock, only 1 left!

0

12

Homelite 529731001

Axial Fan (Stage Two)

$15.99

$

In Stock, only 1 left!

0

13

Homelite 529727001

Axial Stator (Stage 1)

$26.99

$

In Stock, only 1 left!

0

14-A

Homelite 940705365

Jet Fan Logo Label

Note: If a key number has multiple part numbers, please order the part that corresponds with the manufacturing number shown on the product's data label. Mfg. Nos. 090159006, 095159102, 095195112, & 095159116

$1.99

$

Usually ships in 3-7 days

0

14-B

Homelite 941851419

Jet Fan Label

Note: If a key number has multiple part numbers, please order the part that corresponds with the manufacturing number shown on the product's data label. Mfg. Nos. 095159113 & 095159117

$1.99

$

Usually ships in 0 days

0

15-A

Homelite 940705352

Logo Label (Full Crank, 2 cycle)

Note: If a key number has multiple part numbers, please order the part that corresponds with the manufacturing number shown on the product's data label. Mfg. Nos. 090159006, 095159102, 095195112, & 095159116

$1.99

$

Usually ships in 3-7 days

0

15-B

Homelite 941012102

Logo Label (Full Crank, 2 cycle)

Note: If a key number has multiple part numbers, please order the part that corresponds with the manufacturing number shown on the product's data label. Mfg. Nos. 095159113 & 095159117

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 940657226

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 529730001

Axial Fan (Stage 1)

$15.99

$

Usually ships in 3-7 days

0

18

Homelite 660344001

Cap Screw w/Washer (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6634401)

$

$

Not available

19

Homelite 940647138

Cruise Lever Position Label

$

$

Not available

20

Homelite 903525001

Tether

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 312344002

Handle Assembly

Note: (Inc. Key Nos. 19 & 32-37)

$27.99

$

Usually ships in 3-7 days

0

22

Homelite 760961002

Stop Switch (Momentary Contact)

$3.99

$

Usually ships in 3-7 days

0

23

Homelite 291388006

Wiring Harness w/Fiber Sleeve

$3.49

$

Usually ships in 3-7 days

0

24

Homelite 690694002

Torsion Spring (Throttle Trigger)

$1.99

$

In Stock, only 4 left!

0

25

Homelite 531197002

Throttle Trigger

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 307318002

Throttle Cable

$2.99

$

In Stock, only 3 left!

0

27

Homelite 312345002

Intake Housing (Inc. Key Nos. 16 and 30)

Note: (Inc. Key Nos. 16 & 30)

$44.99

$

Usually ships in 3-7 days

0

28

Homelite 696896001

Isolator Spring

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 690969001

Flat Washer (OD10 x ID42 x 1t)

$1.99

$

In Stock, Qty 5

0

30

Homelite 941788001

Primer Bulb Location Label

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 529778001

Bushing (Front Isolator)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 660629002

Screw (#10-14 x 3/4 in, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 4 left!

0

33

Homelite 531196001

Throttle Actuator (Cruise Control)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 632423001

Wavy Washer (217OD x 165ID x 15t)

$

$

Not available

35

Homelite 631049004

Washer (22.5OD x 16ID x 0.5t)

$

$

Not available

36

Homelite 632472004

Detent Spring

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 527985002

Cruise Control Lever

$1.99

$

In Stock, only 1 left!

0

38

Homelite 660466003

Shoulder Screw (M5 x 40 mm, T25 Torx Truss Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 531368002

Intake Guard

$6.99

$

Usually ships in 3-7 days

0

40

Homelite 903411001

Shoulder Strap

$18.99

$

Usually ships in 3-7 days

0

41

Homelite 690697001

Ball Bearing (6001-zz)

$3.49

$

In Stock, only 1 left!

0

Homelite 991000913

Operator's Manual (961175015)

Note: Not Shown

$

$

Not available
