RY 25 AXB (090159001) - Ryobi Jet Fan Blower, Rev 02 (2016-11) Figure B Parts Diagram

Jet Fan Blower, Rev 02

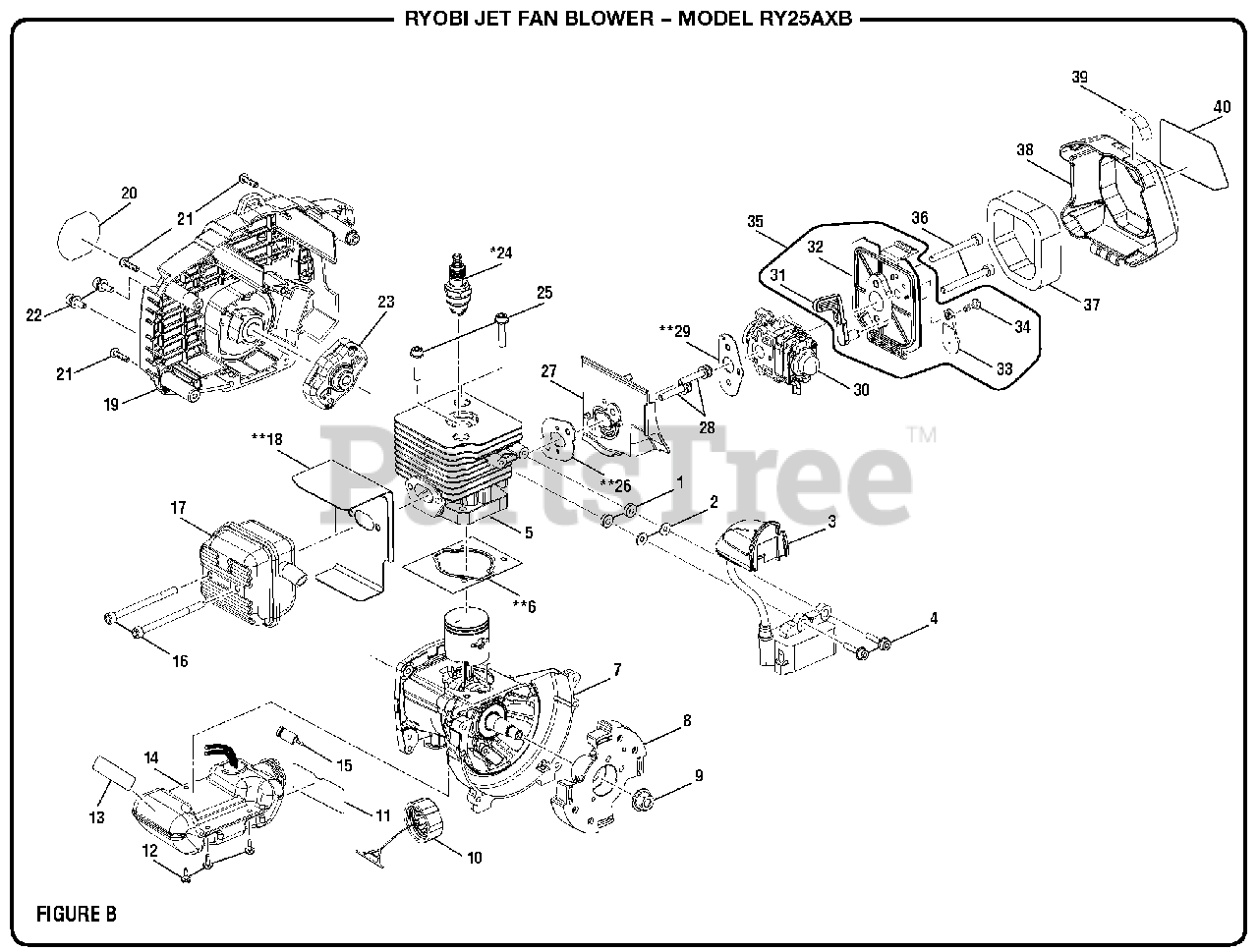

Figure B Parts Diagram

  • Title

1

Homelite 590462001

Spacer

$2.99

$

In Stock, only 2 left!

0

2

Homelite 690969001

Washer (ID4.2 x OD10 x 1t)

$1.99

$

In Stock, Qty 5

0

3

Homelite 290178032

Ignition Module

$43.99

$

Usually ships in 3-7 days

0

4

Homelite 660968001

Screw (M4 x 19 mm, T20 Torx Pan Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 642368001

Cylinder

$65.99

$

Usually ships in 3-7 days

0

6

Homelite 900709007

Gasket

Note: Non-Reuseable Parts = Keys 6, 18, 26 and 29

$1.99

$

In Stock, only 4 left!

0

7

Homelite 307192004

Crankcase Assembly
(Superseded to 307192001)

$129.99

$

Usually ships in 3-7 days

0

8

Homelite 307201004

Rotor

$18.99

$

In Stock, only 2 left!

0

9

Homelite 690689001

Flange Nut (M8, Flywheel)
(Superseded to 6968901)

$

$

Not available

10

Homelite 310816015

Fuel Cap Assembly

$13.99

$

In Stock, only 1 left!

0

11

Homelite 940864004

Fuel Mixture Label

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 660970002

Shoulder Screw (M4 x 14 mm, T25 Torx Truss Hd. S.T.)

$1.99

$

In Stock, only 1 left!

0

13

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 312346001

Fuel Tank w/Cap Assembly

Note: (Inc. Key Nos. 10-11, 13 and 15)

$101.99

$

In Stock, only 1 left!

0

15

Homelite 310976001

Fuel Filter

$

$

Not available

16

Homelite 662169001

Cap Screw (M5 x 65 mm, T25 Torx Soc. Hd.)

$1.99

$

In Stock, only 1 left!

0

17

Homelite 300748049

Muffler Assembly

$136.99

$

Usually ships in 3-7 days

0

18

Homelite 639243004

Muffler Gasket

Note: Non-Reuseable Parts = Keys 6, 18, 26 and 29

$2.99

$

Usually ships in 3-7 days

0

19

Homelite 312347001

Rear Housing and Starter Assembly

Note: (Inc. Key No. 20)

$35.99

$

In Stock, only 1 left!

0

20

Homelite 940627042

Logo Label (Rear)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 660563001

Screw (M4 x 18 mm, T20 Torx Pan Hd. S.T.)
(Superseded to 660734001)

$1.99

$

In Stock, only 3 left!

0

22

Homelite 660351001

Cap Screw w/Washer (M5 x 16 mm, T25 Torx Soc. Hd.)
(Superseded to 6635101)

$1.99

$

In Stock, only 3 left!

0

23

Homelite 308004003

Starter Cup

$10.99

$

In Stock, Qty 5

0

24

Homelite 870174002

Spark Plug (L7RTC)
(Superseded to 870170001)

Note: Standard Hardware Item - May Be Purchased Locally

$10.99

$

Usually ships in 3-7 days

0

25

Homelite 660342001

Screw (M5 x 22 mm, T25 Torx Soc. Hd.)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 903279002

Gasket (Heat Dam)

Note: Non-Reuseable Parts = Keys 6, 18, 26 and 29

$

$

Not available

27

Homelite 528275002

Heat Dam

$7.99

$

Usually ships in 3-7 days

0

28

Homelite T662210002

Screw w/Washers (M5 x 30 mm, T25 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 900711015

Gasket (Carburetor)

Note: Non-Reuseable Parts = Keys 6, 18, 26 and 29

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 308054121

Carburetor Assembly

$107.99

$

In Stock, only 1 left!

0

31

Homelite 591442002

Choke Lever

$1.99

$

In Stock, only 4 left!

0

32

Homelite 527989001

Air Box Base

$2.99

$

In Stock, only 1 left!

0

33

Homelite 590946001

Choke Plate
(Superseded to 5994601)

$1.99

$

In Stock, only 1 left!

0

34

Homelite 660345001

Screw (M4 x 12 mm, T20 Torx Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

35

Homelite 308478013

Airbox Assembly

Note: (Inc. Key Nos. 31-34)

$3.49

$

In Stock, only 1 left!

0

36

Homelite 660347003

Cap Screw (M5 x 45, T25 Torx Soc. Hd.)

$1.99

$

In Stock, Qty 5

0

37

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

38

Homelite 312348001

Air Box Cover

Note: (Inc. Key Nos. 39-40)

$7.99

$

In Stock, only 3 left!

0

39

Homelite 940647111

Choke Label

$1.99

$

In Stock, Qty 5

0

40

Homelite 940851181

Starting Instructions Label

$1.99

$

In Stock, Qty 5

0
