RY 25 AXB (090159001) - Ryobi Jet Fan Blower, Rev 02 (2016-11) Figure A Parts Diagram

Jet Fan Blower, Rev 02

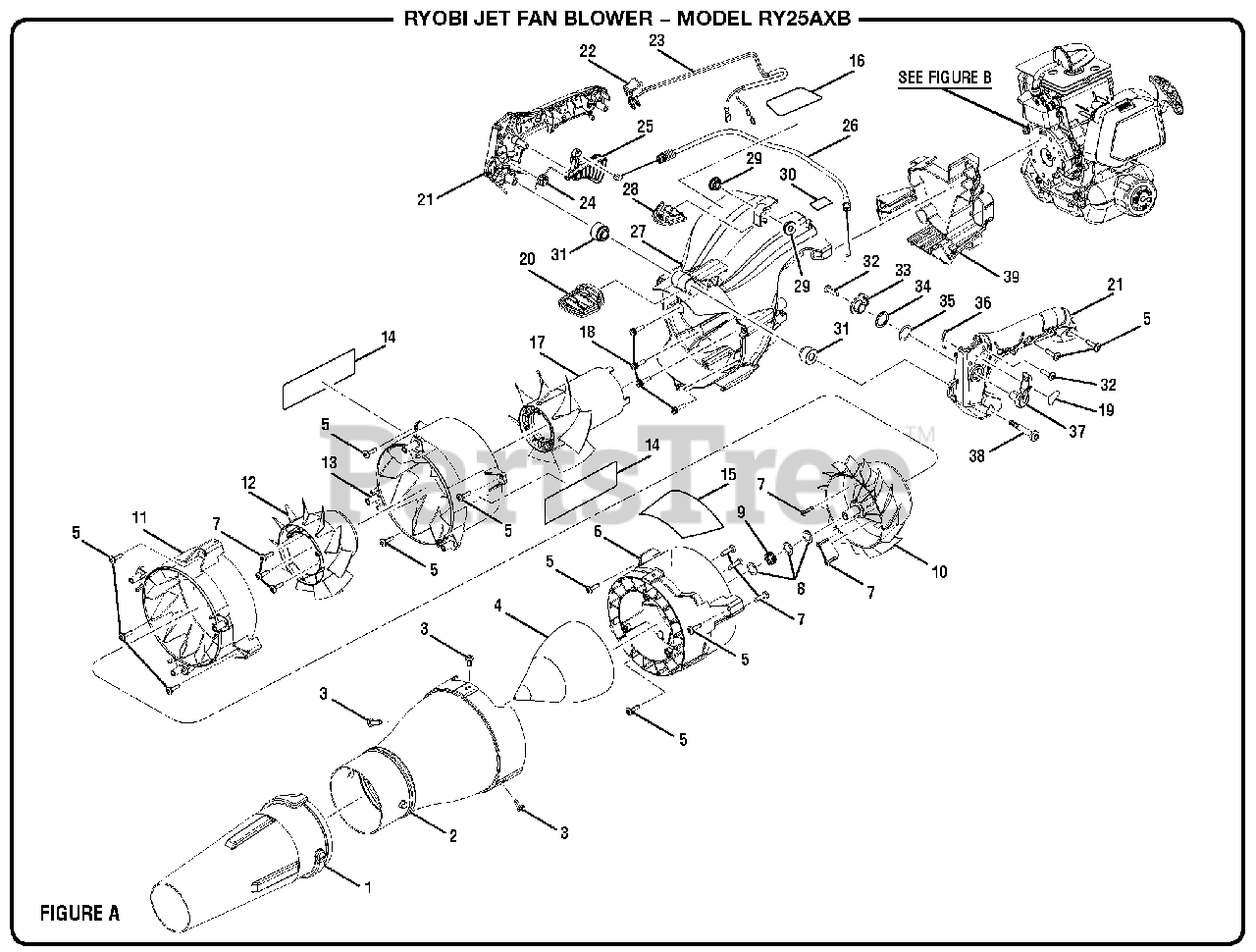

Figure A Parts Diagram

  • Title

1

Homelite 580262001

Blower End Nozzle

$7.49

$

In Stock, only 1 left!

0

2

Homelite 529733001

Reducer Nozzle

$7.99

$

In Stock, only 1 left!

0

3

Homelite 660621001

Screw (10-14 x 13 mm, T25 Torx Truss Hd. T.F.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

4

Homelite 529734001

Reducer Cone

$5.49

$

Usually ships in 3-7 days

0

5

Homelite 660629005

Screw (10-14 x 19 mm., T25 Torx Truss Hd. T.F.)

$1.99

$

In Stock, only 1 left!

0

6

Homelite 529729001

Axial Stator (Stage 3)

$

$

Not available

7

Homelite 660563001

Screw (M4 x 1.41 mm x 18 mm, T20 Torx Pan Hd. T.F)
(Superseded to 660734001)

$1.99

$

In Stock, only 3 left!

0

8

Homelite 637311001

Washer (OD18 x ID12.15 x 1.5t)

$1.99

$

In Stock, Qty 5

0

9

Homelite 637049002

Wave Spring

$5.49

$

In Stock, only 1 left!

0

10

Homelite 529732001

Axial Fan (Stage 3)

$17.99

$

Usually ships in 3-7 days

0

11

Homelite 529728001

Axial Stator (Stage 2)

$21.99

$

In Stock, only 1 left!

0

12

Homelite 529731001

Axial Fan (Stage 2)

$15.99

$

In Stock, only 1 left!

0

13

Homelite 529727001

Axial Stator (Stage 1)

$26.99

$

In Stock, only 1 left!

0

14

Homelite 940705365

Jet Fan Label

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 940705352

Logo Label (Full Crank, 2 cycle)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 940657226

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 529730001

Axial Fan (Stage 1)

$15.99

$

Usually ships in 3-7 days

0

18

Homelite 660344001

Screw w/Washers (M5 x 20 mm, T20 Torx Pan Hd.)
(Superseded to 6634401)

$

$

Not available

19

Homelite 940647138

Cruise Lever Position Label

$

$

Not available

20

Homelite 564078001

Isolator Pad (Front Handle)

$1.49

$

In Stock, Qty 20+

0

21

Homelite 312344001

Handle Assembly

Note: (Inc. Key Nos. 19 and 32-37)

$11.99

$

Usually ships in 3-7 days

0

22

Homelite 760961002

Stop Switch

$3.99

$

Usually ships in 3-7 days

0

23

Homelite 291388003

Wiring Harness

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 690694002

Throttle Spring

$1.99

$

In Stock, only 4 left!

0

25

Homelite 531197002

Throttle Trigger

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 307318002

Throttle Cable

$2.99

$

In Stock, only 3 left!

0

27

Homelite 312345001

Intake Housing

Note: (Inc. Key Nos. 16 and 30)

$

$

Not available

28

Homelite 564079001

Isolator Pad (Rear Handle)

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 529778002

Bushing (Rear Isolator)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite 941788001

Primer Bulb Icon Label

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 529778001

Bushing (Front Isolator)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 660629002

Screw (10-14 x 18 mm, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 4 left!

0

33

Homelite 531196001

Throttle Actuator (Cruise Control)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 632423001

Wave Washer

$

$

Not available

35

Homelite 631049004

Washer (22.5OD x 16ID x 0.5t)

$

$

Not available

36

Homelite 632472004

Detent Spring

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 527985002

Cruise Control Lever

$1.99

$

In Stock, only 1 left!

0

38

Homelite 660466003

Shoulder Screw (M5 x 40 mm, T25 Torx Truss Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 531368001

Intake Guard

$

$

Not available

Homelite 991000913

Operator's Manual (961175015)

Note: Not Shown

$

$

Not available
