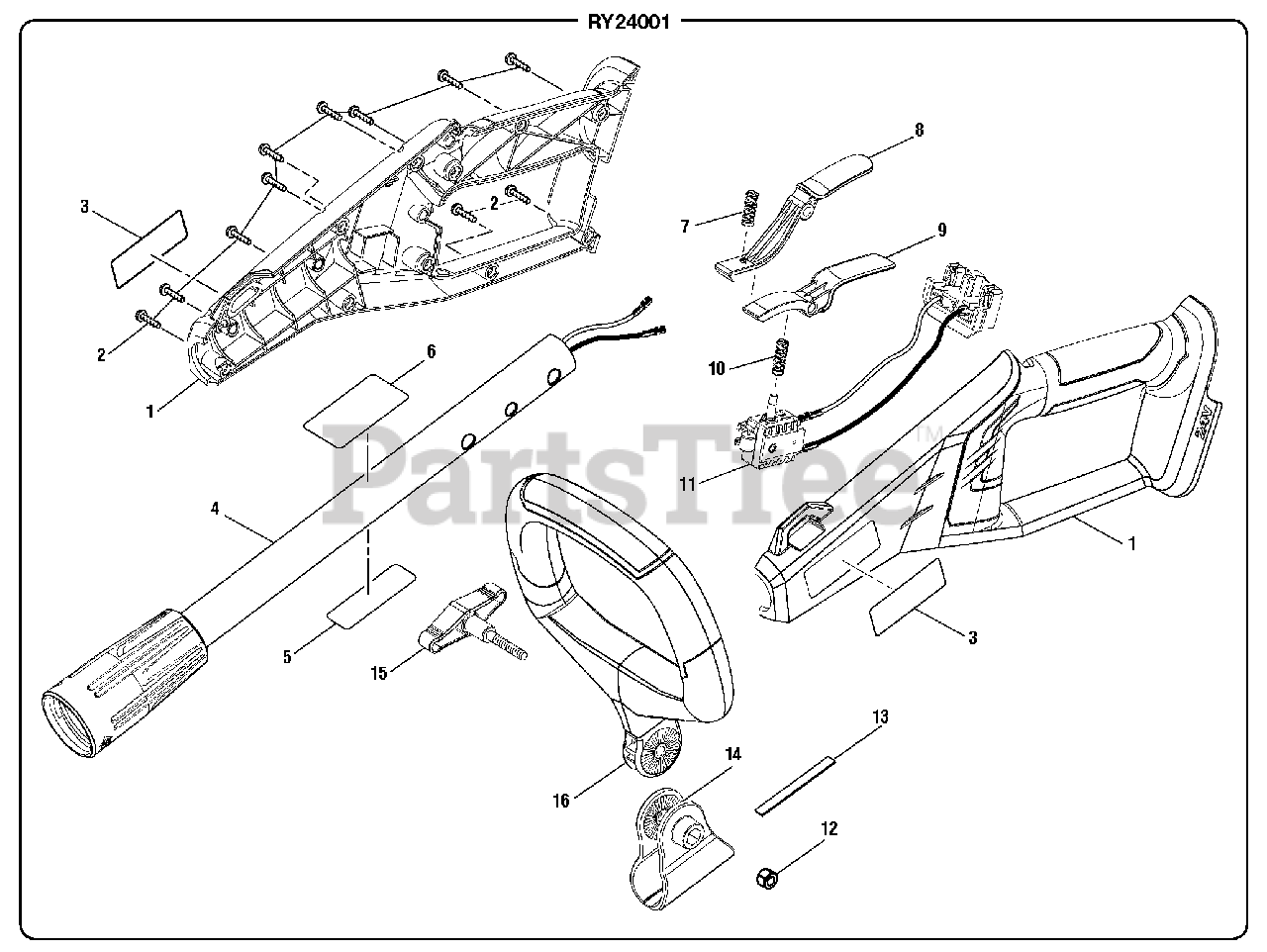

RY 24001 - Ryobi 24V String Trimmer Powerhead General Assembly Parts Diagram

24V String Trimmer Powerhead

General Assembly Parts Diagram

  • Title

1

Homelite 120950076

Rear Handle Assembly

$

$

Not available

2

Homelite 661817001

Screw (M4 x 14 mm, T15 Torx Pan Hd.)

$1.99

$

In Stock, only 1 left!

0

3

Homelite 941545002

Logo Label

$

$

Not available

4

Homelite 311136001

Upper Tube Assembly

$7.49

$

Usually ships in 3-7 days

0

5

Homelite 941775002

Data Label

$

$

Not available

6

Homelite 940331006

Waning Icon Label

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 679406001

Compression Spring (Trigger Lock)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 522906001

Trigger Lock

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 525675001

Switch Trigger

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 679973001

Compression Spring (Trigger)

$1.99

$

In Stock, Qty 5

0

11

Homelite 129310001

Switch and Contact Plate Assembly

$

$

Not available

12

Homelite 680196006

Hex Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 570112001

Handle Bracket Spacer

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 524847001

Handle Bracket

$

$

Currently unavailable

15

Homelite 522983001

Handle Knob Assembly
(Superseded to 314754001)

$1.49

$

In Stock, only 1 left!

0

16

Homelite 310914002

Auxiliary Handle Assembly

Note: (Inc. Key Nos. 12-15)

$

$

Not available

Homelite 990000214

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
