RY 1842 A - Electrolux/AYP Lawn Tractor (1992) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

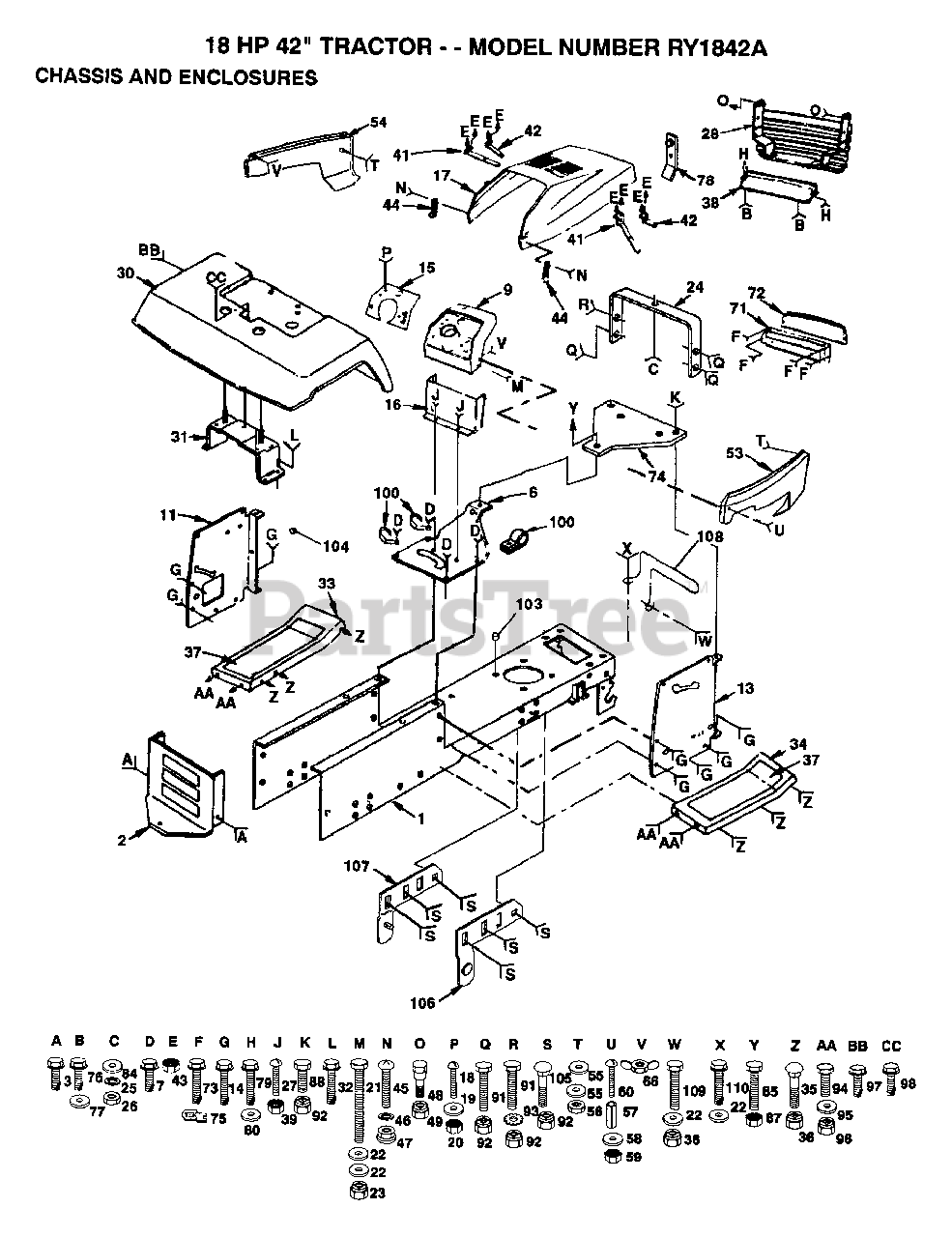

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 135034

SUB= 145501

$

$

Not available

2

Electrolux/AYP 130805

SUB= 145009

$

$

Not available

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

$16.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

9

$

$

Not available

11

Electrolux/AYP 132178

DASH PANEL LH

$21.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 132069

SUB= 532132069

$

$

Not available

14

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

15

$

$

Not available

16

$12.99

$

Usually ships in 3-10 days

0

$179.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

19

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

23

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 124130X

SUPPORT ASS'Y
(Superseded to 532124130)

$

$

Not available

25

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

28

Electrolux/AYP 131716

SUB= 532131716

$

$

Not available

$

$

Not available

31

$

$

Not available

32

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 105465X419

SUB= 145244X419

$

$

Not available

34

$5.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 131864

"PAD,FOOTREST"

$

$

Not available

38

Electrolux/AYP 105419X419

"STRAP,GRILL "

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

41

$

$

Not available

42

$

$

Not available

43

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

44

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

45

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 11

0

47

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

48

$

$

Not available

49

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

53

Electrolux/AYP 132636X419

"PANEL,SIDE RH"

$71.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 132637X419

"PANEL,SIDE LH"

$71.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 2 left!

0

56

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

57

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

58

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

66

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

71

Electrolux/AYP 124392X417

SUB= 147717
(Superseded to 583678801)

$

$

Not available

72

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

74

$

$

Not available

75

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

78

Electrolux/AYP 132644

SUB= 532132644

$

$

Not available

79

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

80

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 2 left!

0

85

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

$2.99

$

Usually ships in 3-10 days

0

88

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

92

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

93

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

95

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

96

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

97

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

103

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

104

$

$

Not available

105

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

106

Electrolux/AYP 134775

PIVOT BRKT RH
(Superseded to 532134775)

$

$

Not available

107

Electrolux/AYP 134774

PIVOT BRKT LH
(Superseded to 532134774)

$

$

Not available

108

Electrolux/AYP 135029

MUFFLER GUARD

$7.49

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 72110608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

110

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0
