RY 15523 A VNM (313284101) - Ryobi Trimmer Attachment, Rev 10 (2020-05) General Assembly Parts Diagram

Trimmer Attachment, Rev 10

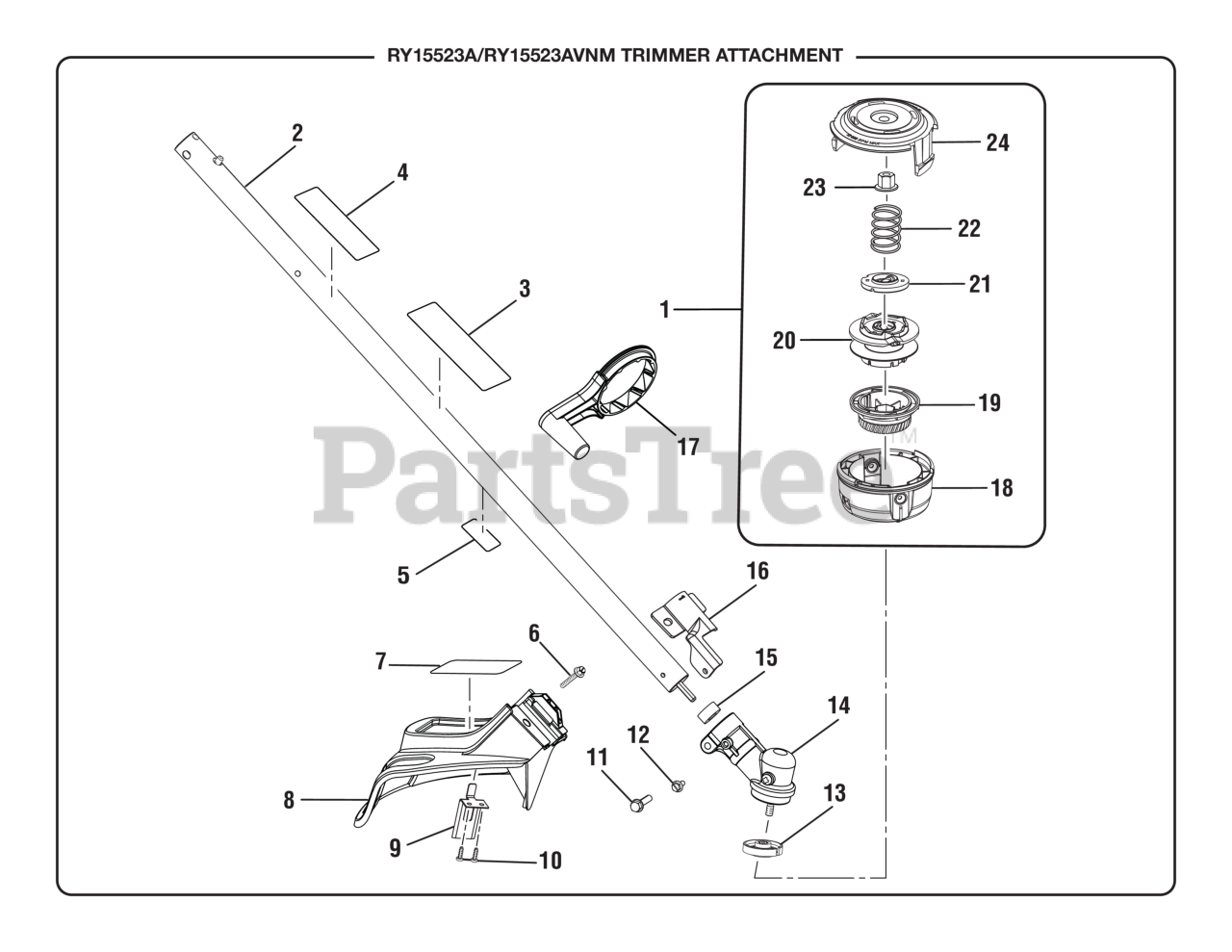

General Assembly Parts Diagram

  • Title
1

Homelite 313318001

Trimmer Head Assembly (.080)

Note: (Inc. Key Nos. 18-24)

$23.99

$

In Stock, only 2 left!

0

2

Homelite 315833001

Straight Shaft Assembly

Note: (Inc. Key Nos. 3-5)

$38.99

$

Usually ships in 3-7 days

0

3

Homelite 940749005

Warning Icon Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 941851149

Ryobi EXPAND-IT Label

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 941588477

Data Label

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 660738002

SCREW (#1/4-20 X 1-1/4 in. HEX WASHER HD.)
(Superseded to 983379078)

$

$

Not available

7

Homelite 940705021

Logo Label

$

$

Not available

8

Homelite 313285005

Grass Deflector Assembly

Note: (Inc. Key Nos. 6-7 & 9-10)

$18.99

$

In Stock, only 1 left!

0

9

Homelite 638016003

Line Cut-off Blade

$3.49

$

In Stock, Qty 20+

0

$1.99

$

In Stock, Qty 6

0

11

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Washer Hd. S.T.)
(Superseded to 983381007)

$2.49

$

In Stock, Qty 5

0

12

Homelite 660641001

Screw w/Washer (10-24 x 5/8 in., Hex Hd. T.F.)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 678011001

FLANGED WASHER
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

14

Homelite 308210009

Gear Case Assembly

$48.99

$

In Stock, only 1 left!

0

15

$1.99

$

In Stock, only 3 left!

0

16

Homelite 638125001

GRASS DEFLECTOR CLAMP
(Superseded to PS04420)

$4.99

$

In Stock, only 2 left!

0

17

Homelite 532048001

Crank Handle

$2.49

$

Usually ships in 3-7 days

0

18

Homelite 530366001

Lower Housing

$8.49

$

In Stock, only 2 left!

0

19

Homelite 530455002

Bump Knob (Green)

$4.49

$

In Stock, Qty 8

0

20

Homelite 530670001

Spool Assembly

$2.99

$

In Stock, Qty 13

0

21

Homelite 529803001

String Guide

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 678749001

Compression Spring

$1.99

$

In Stock, Qty 20+

0

23

Homelite 662568002

Hex Nut (M8, Left Hand Threads)

$1.99

$

Usually ships in 3-7 days

0

24

Homelite 530001004

Upper Housing

$4.49

$

In Stock, only 2 left!

0

Homelite 990000799

Operator's Manual

Note: Not Shown

$

$

Not available
