RY 15124 (099839001) - Ryobi String Trimmer Powerhead, Rev 03 (2021-02) Figure A Parts Diagram

String Trimmer Powerhead, Rev 03

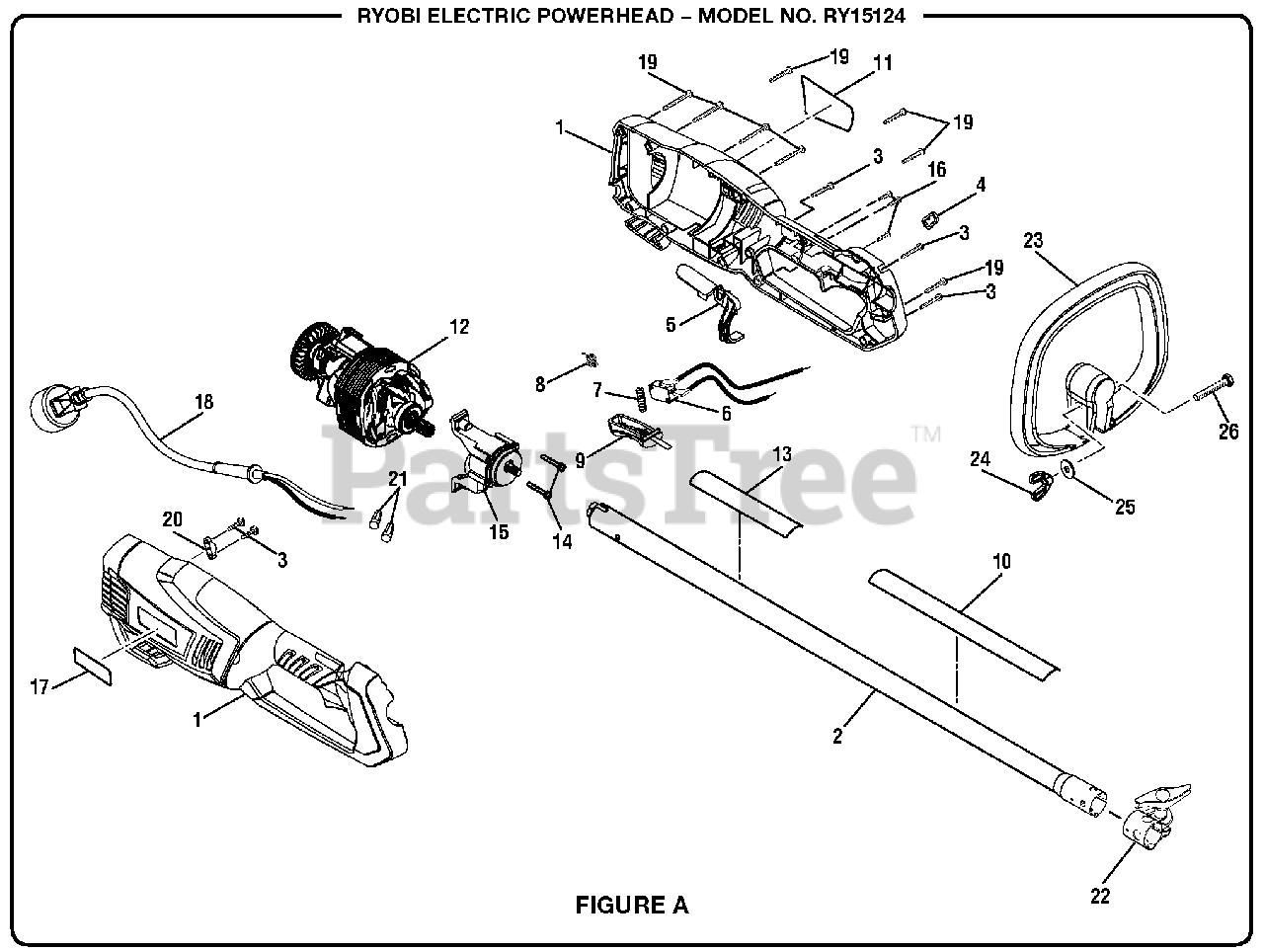

Figure A Parts Diagram

  • Title
1

Homelite 099839001009

Housing Assembly

$48.99

$

Usually ships in 3-7 days

0

2

Homelite 099839001002

Boom Assembly

$34.99

$

Usually ships in 3-7 days

0

3

Homelite 099839001020

Screw (M4 x 14 mm)

$2.49

$

Usually ships in 3-7 days

0

4

$3.99

$

Usually ships in 3-7 days

0

5

Homelite 099839001017

Lock-Out Lever

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 099839001014

Switch Assembly w/Leads

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 099839001018

Compression Spring

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 099839001008

Torsion Spring

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 099839001022

Switch Trigger

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 099919001902

Warning Label (French)

$

$

Not available

11

Homelite 941588045

Data Label/Warning Label (English and Spanish)

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 099839001011

Motor Assembly

$88.99

$

Usually ships in 3-7 days

0

13

Homelite 099919001900

Icon Strip Label

$

$

Not available

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 099839001010

Gear Assembly

$42.99

$

Usually ships in 3-7 days

0

16

Homelite 099839001021

Screw (M3 x 12 mm)

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 941545002

Logo Label

$

$

Not available

18

Homelite 099839001015

Power Cord Assembly

$10.99

$

In Stock, only 1 left!

0

19

Homelite 099839001019

Screw (M4 x 16 mm)

$

$

Not available

20

$2.49

$

Usually ships in 3-7 days

0

21

$2.49

$

Usually ships in 3-7 days

0

22

Homelite 099839001001

Boom Clamp Assembly

$

$

Not available

23

Homelite 099839001005

Front Handle Assembly

Note: (Inc. Key Nos. 24-26)

$12.99

$

Usually ships in 3-7 days

0

24

Homelite 099839001003

Wing Nut (1/4-20)

$2.49

$

In Stock, only 1 left!

0

25

Homelite 099839001004

Washer (1/4 in.)

$1.49

$

In Stock, only 1 left!

0

26

Homelite 099839001006

Bolt (1/4-20 x 40 mm)

$1.49

$

Usually ships in 3-7 days

0

Homelite 990000718

Operator's Manual

Note: NOT SHOWN

$

$

Not available
