RY 142300 VNM (095079449) - Ryobi Pressure Washer, Electric, Rev 02 (2022-04) General Assembly Parts Diagram

Pressure Washer, Electric, Rev 02

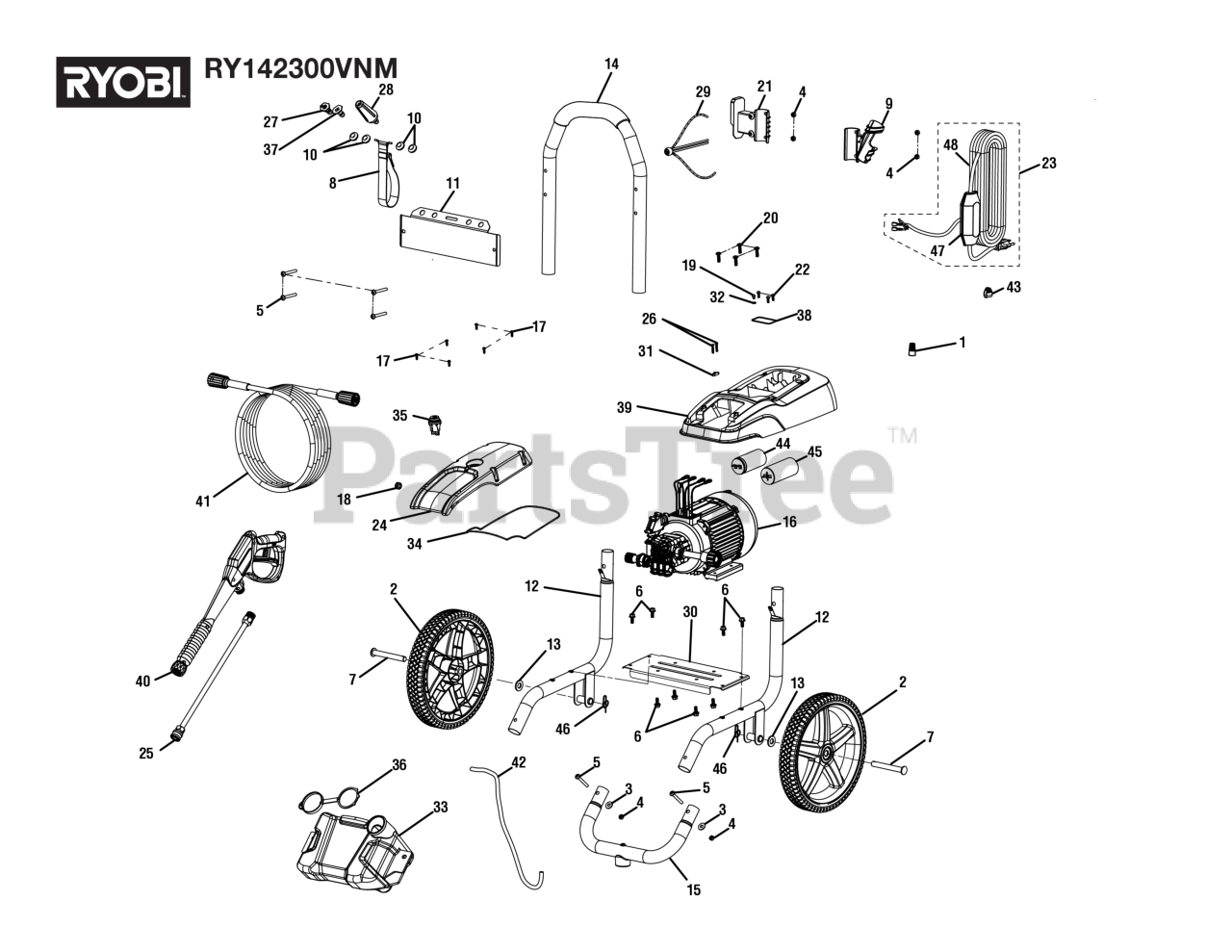

General Assembly Parts Diagram

  • Title

1

Homelite 870601001

Tuerca para alambre

$

$

Not available

2

Homelite 308451067

Wheel

$24.99

$

Usually ships in 3-7 days

0

3

Homelite 638128004

Washer (1/4 in.)

$1.99

$

In Stock, Qty 5

0

4

Homelite 678610006

Lock Nut (M6 x 1)

$

$

Not available

5

Homelite 661503015

Screw (M6 x 1 x 48 mm, T30 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 661505020

Flange Bolt (M6 x 1 x 16 mm, Hex Hd.)

$

$

Not available

7

Homelite 620599034

Axle

$3.99

$

In Stock, only 2 left!

0

8

Homelite 308350003

Hose Holder Strap

$3.99

$

In Stock, only 2 left!

0

9

Homelite 519313009

Trigger Handle Holder

$

$

Not available

10

Homelite 561383004

Rubber Nozzle Grommet

$

$

Not available

11

Homelite 638671019

Face Panel

$14.99

$

Usually ships in 3-7 days

0

12

Homelite 310703036

Frame Assembly

$38.99

$

Usually ships in 3-7 days

0

13

Homelite 638275002

Washer (1/2 in.)

$1.99

$

In Stock, Qty 5

0

14

Homelite 308638068

Handle Assembly

$32.99

$

Usually ships in 3-7 days

0

15

Homelite 310742028

Frame Assembly (Front)

$37.99

$

Usually ships in 3-7 days

0

16

Spool Cap (Item No. AC14HCA)

Note: Techtronic Industries Power Equipment, Inc., will not provide a complete motor/pump assembly as a replacement part. Contact our customer service department for assistance.

$

$

Not available

17

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 561383028

Soap Tank Grommet

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 660481028

Screw (M4 x 16 mm, Pan Hd.)

$

$

Not available

20

Homelite 660481019

Bolt (M6 x 20 mm, Philips Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

21

Homelite 522037004

Cord Holder

$2.99

$

Usually ships in 3-7 days

0

22

Homelite 660481027

Bolt (M4 x 12 mm, Pan Hd.)

$

$

Not available

23

Homelite 290426027

Power Cord Assembly

$82.99

$

Usually ships in 3-7 days

0

24

Homelite 522038029

Switch Cover

$11.99

$

Usually ships in 3-7 days

0

25

Homelite 308494077

Spray Wand Assembly

$30.99

$

In Stock, only 1 left!

0

26

Homelite 661610008

Screw (M3.5 x 20 mm, Button Hd.)

$

$

Not available

27

Homelite 308698035

15deg Nozzle

$

$

Not available

28

Homelite 308311038

Turbo Nozzle

$16.99

$

In Stock, only 1 left!

0

29

Homelite 308350004

Power Cord Strap

$2.99

$

Usually ships in 3-7 days

0

30

Homelite 638662050

Motor Plate

$29.99

$

Usually ships in 3-7 days

0

31

Homelite 522051003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 638454005

Toothed Lock Washer (M4)

$

$

Not available

33

Homelite 580875014

Detergent Tank

$13.99

$

In Stock, only 1 left!

0

34

Homelite 561383035

Rubber Gasket

$

$

Not available

35

Homelite 760504018

On/Off Switch

$18.99

$

Usually ships in 3-7 days

0

36

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

37

Homelite 308706013

Soap Nozzle (Blue)

$1.99

$

In Stock, Qty 5

0

38

Homelite 570449004

Wire Box Gasket (Lower)

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 522032056

Motor Shroud

$36.99

$

Usually ships in 3-7 days

0

40

Homelite 308760061

Trigger Handle

$

$

Not available

41

Homelite 308835086

High Pressure Hose

$51.99

$

Usually ships in 3-7 days

0

42

Homelite 561399016

Chemical Siphon Tube

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 528499001

Electric Cord Clip

$

$

Not available

44

Homelite 820270012

Capacitor (CBB60 SH PO 250 VAC 120UF)

$45.99

$

In Stock, only 1 left!

0

45

Homelite 820270011

Capacitor (CD60 250 VAC 300UF)

$26.99

$

Usually ships in 3-7 days

0

46

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

47

Homelite 270290033

Grounded Plug

$114.99

$

Usually ships in 3-7 days

0

48

Homelite 290426028

Electrical Wire

$

$

Currently unavailable

Homelite 998000380

Operator's Manual

Note: Not Shown

$

$

Currently unavailable

Homelite 998000381

Quick Reference Guide

Note: Not Shown

$

$

Currently unavailable
