RY 141900 VNM (095079281) - Ryobi Pressure Washer, Rev 01 (2020-06) FIGURE A Parts Diagram

Pressure Washer, Rev 01

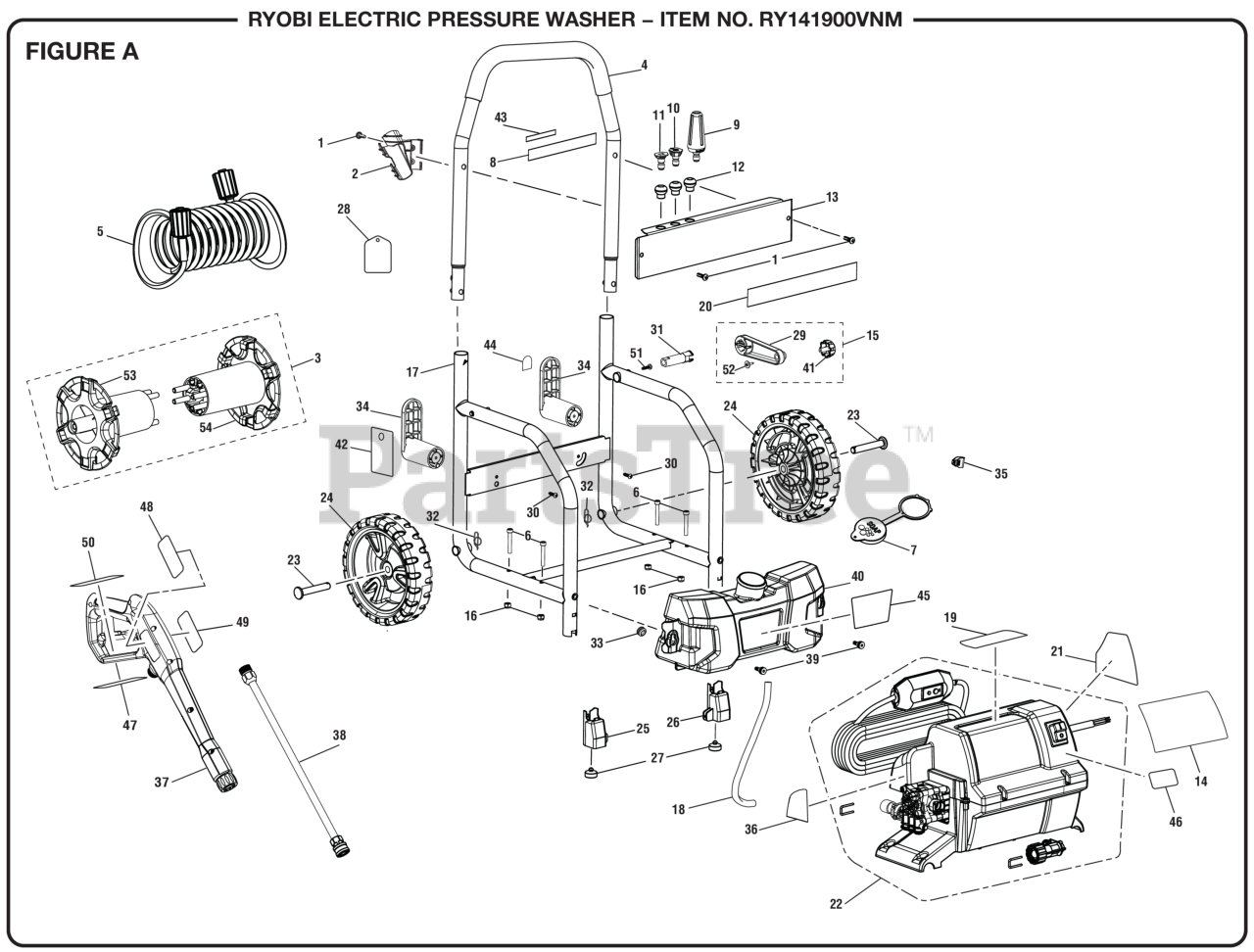

FIGURE A Parts Diagram

  • Title

1

Homelite 660481019

Bolt (M6 x 20 mm, Philips Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 519313010

Trigger Handle Holder

$1.99

$

In Stock, Qty 6

0

3

Homelite 309008005

Hose Reel Assembly

$17.99

$

Usually ships in 3-7 days

0

4

Homelite 310224071

Handle Assembly

$18.99

$

In Stock, only 1 left!

0

5

Homelite 308835065

Hose (25 ft.) [PS141913]

$46.99

$

Usually ships in 3-7 days

0

6

Homelite 660481015

Bolt (M6 x 40 mm, Socket Hex Hd.)

$

$

Not available

7

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

8

Homelite 940617146

Quick Start Label

$

$

Not available

9

Homelite 308311032

Turbo Nozzle

$16.99

$

In Stock, only 2 left!

0

10

Homelite 308706013

Soap Nozzle (Blue)

$1.99

$

In Stock, Qty 5

0

11

Homelite 308698032

Nozzle (15deg)

$

$

Not available

12

Homelite 561383029

Nozzle Grommet

$1.99

$

In Stock, Qty 20+

0

13

Homelite 678973012

Performance Panel

$7.99

$

Usually ships in 3-7 days

0

14

Homelite 940705265

Ryobi Logo Label

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 310450003

Hose Reel Handle Assembly

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 678460001

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308582081

Main Frame

$114.99

$

Usually ships in 3-7 days

0

18

Homelite 561399014

Injection Hose

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 940786041

Nozzle Selection Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 940779142

Performance Label

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 940707039

Danger Label

$

$

Not available

22

Motor and Pump Assembly

Note: See Figure B

$

$

Not available

23

Homelite 620599035

Wheel Axle

$2.49

$

Usually ships in 3-7 days

0

24

Homelite 308451072

Wheel

$17.99

$

Usually ships in 3-7 days

0

25

Homelite 523406004

Foot (Left)

$

$

Not available

26

Homelite 523406005

Foot (Right)

$

$

Not available

27

Homelite 570554017

Foot Pad

$1.99

$

In Stock, Qty 5

0

28

Homelite 961039007

Nozzle Hangtag (PS141913)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 310452003

Hose Reel Handle Beam

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 661403019

Screw (M4.8 x 19 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 522038040

Connection Shaft.

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

33

Homelite 561383028

Soap Tank Grommet

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 522037003

Cord Wrap Arm

$3.99

$

Usually ships in 3-7 days

0

35

Homelite 528499001

Electric Cord Clip

$

$

Not available

36

Homelite 941002168

Pump Label

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 308760072

Trigger Handle

$41.99

$

Usually ships in 3-7 days

0

38

Homelite 308494077

Spray Wand Assembly

$30.99

$

In Stock, only 1 left!

0

39

Homelite 660481022

Shoulder Bolt (M6 x 16 mm)

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 580875016

Detergent Tank

$18.99

$

Usually ships in 3-7 days

0

41

Homelite 523404003

Hose Reel Handle Sleeve

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940473023

Warning/Notice Hangtag

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 941486008

Inquires Label (Ryobi)

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 941076001

Power Cord Unlock Label

$

$

Not available

45

Homelite 941608007

Detergent Tank Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940734079

On/Off Switch Label

$

$

Not available

47

Homelite 940904013

Trigger Handle Data Label

$1.99

$

Usually ships in 3-7 days

0

48

Homelite 940786053

Trigger Handle Label (Logo Label)

$

$

Not available

49

Homelite 940324040

Trigger Handle Warning Label (English)

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 980414037

Foam

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 570470005

Left Reel

$

$

Currently unavailable

54

Homelite 570471006

Right Reel

$

$

Currently unavailable

55

Homelite 660028004

Screw (M3)

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000317

Operator's Manual

$

$

Not available

Homelite 991000318

Quick Reference Guide

$

$

Not available

Homelite 965001123

RYOBI Registration Insert

$1.99

$

Usually ships in 3-7 days

0

Homelite 940325001

LABEL, INSPECTED BY

$

$

Not available
