RY 141900 (090079325) - Ryobi Pressure Washer, Rev 05 (2019-05) Figure B Parts Diagram

Pressure Washer, Rev 05

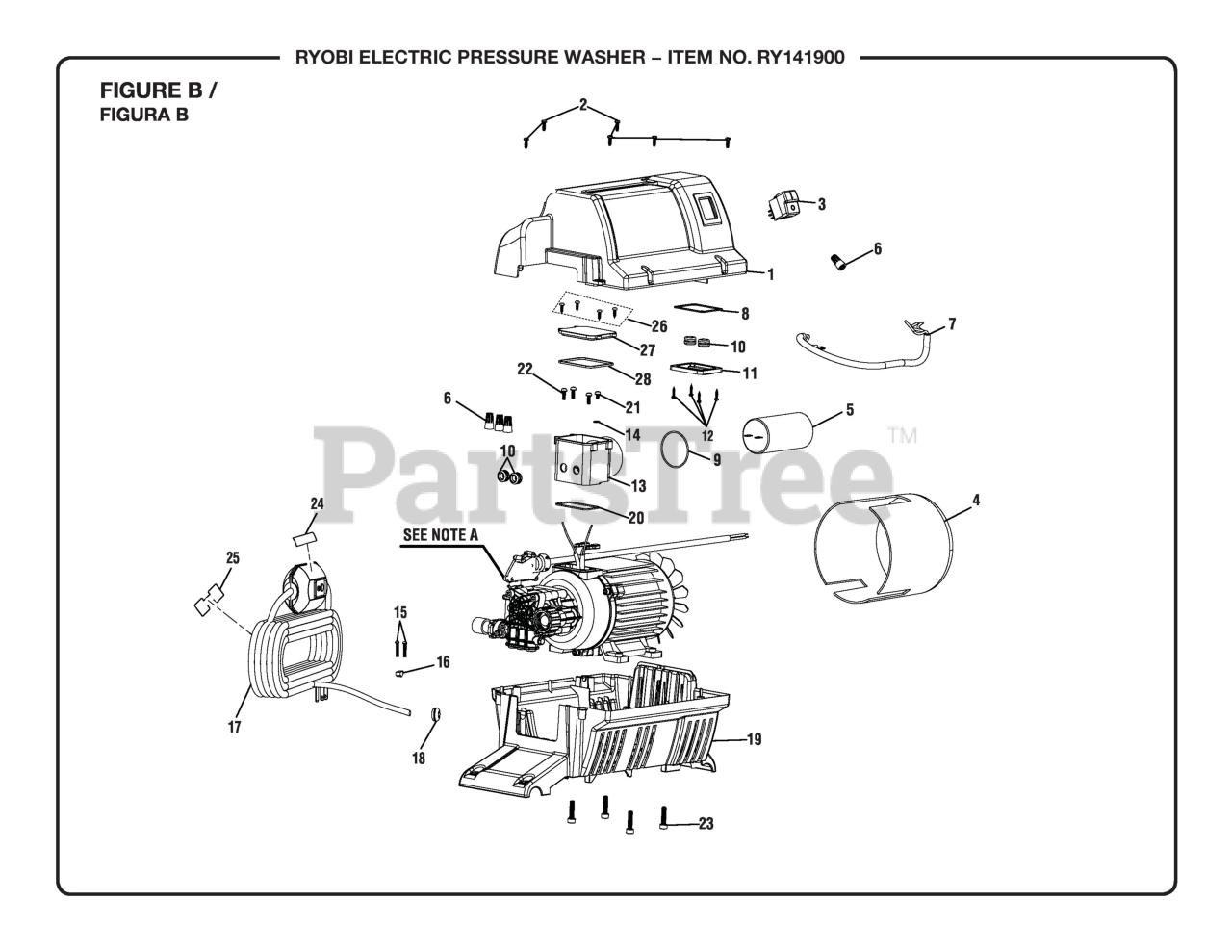

Figure B Parts Diagram

  • Title
1

Homelite 522032010

Top Motor Housing

$18.99

$

Usually ships in 3-7 days

0

2

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 760504007

On/Off Switch

$10.99

$

In Stock, only 1 left!

0

4

Homelite 527405002

Nozzle (15deg)

$

$

Not available

5

Homelite 820270006

Capacitor

$19.99

$

Usually ships in 3-7 days

0

6

Homelite 870601001

Tuerca para alambre

$

$

Not available

7

Homelite 290606004

Connecting Wire

$6.99

$

Usually ships in 3-7 days

0

8

Homelite 570740016

Gasket (Switch Cover)

$

$

Not available

9

Homelite 570742116

O-ring (Capacitor)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 561383028

Soap Tank Grommet

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 570417004

Switch Cover

$

$

Not available

12

Homelite 661403015

Screw (M2.9 x 14 mm, Pan Hd.)

$

$

Not available

13

$

$

Not available

14

Homelite 638454005

Toothed Lock Washer (M4)

$

$

Not available

15

Homelite 661610008

Screw (M3.5 x 20 mm, Button Hd.)

$

$

Not available

16

Homelite 522051003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 290426020

Power Cord

$

$

Not available

18

Homelite 561383025

Housing Rubber Grommet

$

$

Not available

19

Homelite 522038010

Lower Motor Housing

$30.99

$

Usually ships in 3-7 days

0

20

Homelite 570449004

Wire Box Gasket (Lower)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 660481028

Screw (M4 x 16 mm, Pan Hd.)

$

$

Not available

22

Homelite 660481027

Bolt (M4 x 12 mm, Pan Hd.)

$

$

Not available

23

Homelite 661505038

Bolt (M6 x 20 mm, Hex Hd. Locking)

$

$

Not available

24

Homelite 940603006

Power Cord Label

$

$

Not available

25

Homelite 940324032

Cordwrap Warning Label

$2.49

$

Usually ships in 3-7 days

0

26

Homelite 661403020

Screw (ST 3.5)

$

$

Not available

27

Homelite 524078003

Wire Box Cover

$

$

Not available

28

Homelite 570449003

Wire Box Gasket (Upper)

$

$

Not available
