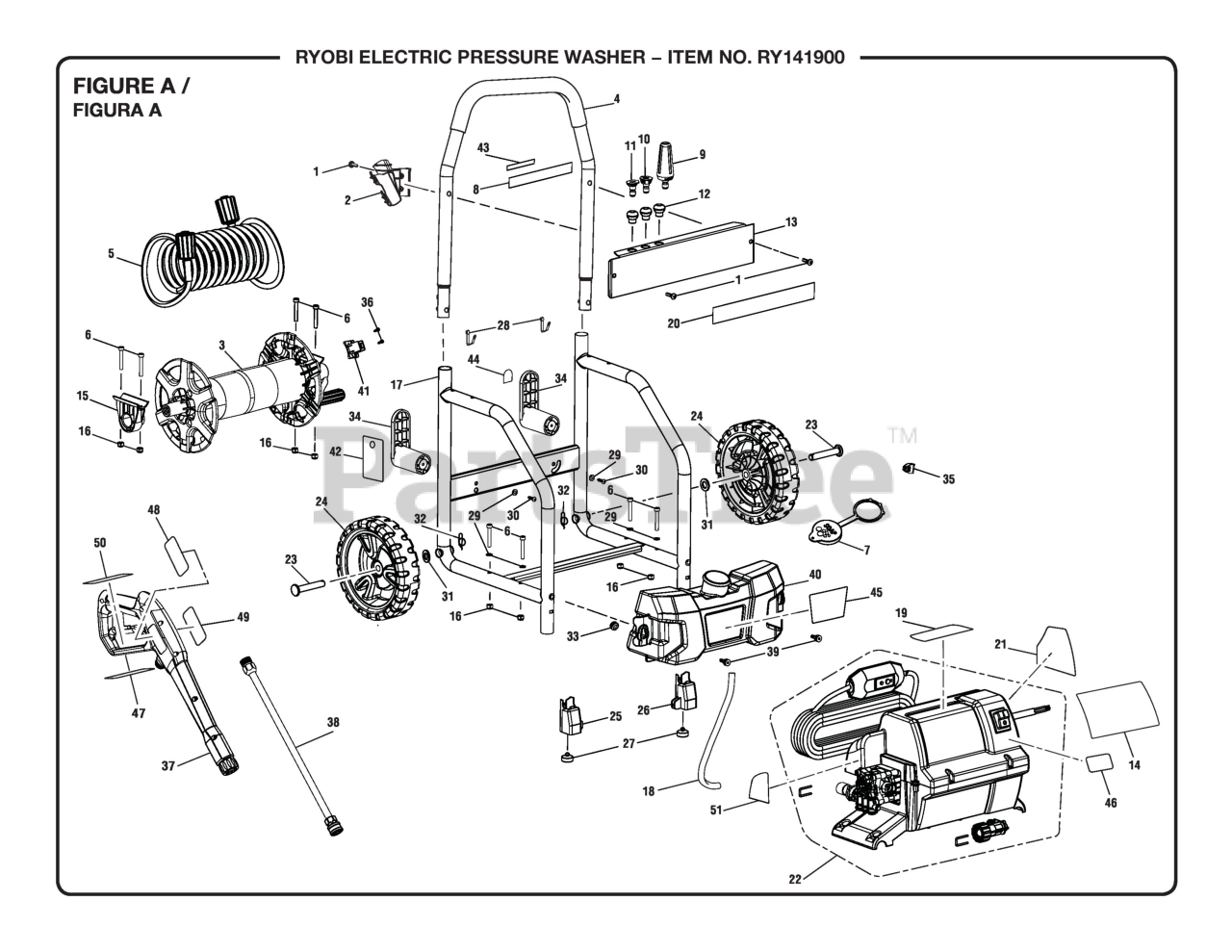

RY 141900 (090079325) - Ryobi Pressure Washer, Rev 05 (2019-05) Figure A Parts Diagram

Pressure Washer, Rev 05

Figure A Parts Diagram

  • Title
1

Homelite 660481019

Bolt (M6 x 20 mm, Philips Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

2

Homelite 519313010

Trigger Handle Holder

$1.99

$

In Stock, Qty 6

0

3

Homelite 309008004

Hose Reel Assembly

$35.99

$

Usually ships in 3-7 days

0

4

Homelite 310224071

Handle Assembly

Note: Inc. Key No. 28

$18.99

$

In Stock, only 1 left!

0

5

Homelite 308835065

Hose (25 ft.) [PS141913]

$46.99

$

Usually ships in 3-7 days

0

6

Homelite 660481015

Bolt (M6 x 40 mm, Socket Hex Hd.)

$

$

Not available

7

Homelite 310650004

Detergent Tank Cap

$2.99

$

In Stock, only 3 left!

0

8

Homelite 940617146

Quick Start Label

$

$

Not available

9

Homelite 308311014

Turbo Nozzle

$

$

Not available

10

Homelite 308706013

Soap Nozzle (Blue)

$1.99

$

In Stock, Qty 5

0

11

Homelite 308698032

Nozzle (15deg)

$

$

Not available

12

Homelite 561383029

Nozzle Grommet

$1.99

$

In Stock, Qty 20+

0

13

Homelite 678973008

Performance Panel

$4.49

$

Usually ships in 3-7 days

0

14

Homelite 940705265

Ryobi Logo Label

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 522941003

Bracket (Hose Reel)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 678460001

Lock Nut (M6)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 308582061

Main Frame

$

$

Not available

18

Homelite 561399014

Injection Hose

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 940786041

Nozzle Selection Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 940779142

Performance Label

$3.49

$

Usually ships in 3-7 days

0

21

Homelite 940707039

Danger Label

$

$

Not available

22

Pump Housing Assembly

Note: See Figure B

$

$

Not available

23

Homelite 620599029

Wheel Axle

$2.49

$

Usually ships in 3-7 days

0

$9.49

$

Usually ships in 3-7 days

0

25

Homelite 523406004

Foot (Left)

$

$

Not available

26

Homelite 523406005

Foot (Right)

$

$

Not available

27

$1.99

$

In Stock, Qty 5

0

28

Homelite 961039007

Nozzle Hangtag (PS141913)

$1.99

$

Usually ships in 3-7 days

0

29

Homelite 678600010

Washer (OD12 x ID6.6 x 1.6t)

$

$

Not available

30

Homelite 661403019

Screw (M4.8 x 19 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 678889003

Washer (OD24 x ID12.5 x 2.5t)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 678899006

Hitch Pin
(Superseded to 678899001)

$

$

Not available

33

Homelite 561383028

Soap Tank Grommet

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 522037003

Cord Wrap Arm

$3.99

$

Usually ships in 3-7 days

0

35

Homelite 528499001

Electric Cord Clip

$

$

Not available

36

Homelite 941002168

Pump Label

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 308760060

Trigger Handle
(Superseded to 308760071)

$35.99

$

Usually ships in 3-7 days

0

38

Homelite 308494074

Spray Wand Assembly
(Superseded to 308494077)

$30.99

$

In Stock, only 1 left!

0

39

Homelite 660481022

Shoulder Bolt (M6 x 16 mm)

$1.99

$

Usually ships in 3-7 days

0

40

Homelite 580875016

Detergent Tank

$18.99

$

Usually ships in 3-7 days

0

41

Homelite 529062001

Hose Clip

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 940473023

Warning/Notice Hangtag

$1.99

$

Usually ships in 3-7 days

0

43

Homelite 941486008

Inquires Label (Ryobi)

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 941076001

Power Cord Unlock Label

$

$

Not available

45

Homelite 941608007

Detergent Tank Label

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 940734079

On/Off Switch Label

$

$

Not available

47

Homelite 940904003

Trigger Handle Rating Label

$

$

Not available

48

Homelite 940786043

Trigger Handle Logo Label

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 940324033

Trigger Handle Warning Label (English)

$1.99

$

Usually ships in 3-7 days

0

50

Homelite 940324024

Trigger Handle Warning Label (French/Spanish)
(Superseded to 940654228)

$2.99

$

Usually ships in 3-7 days

0

51

Homelite 661403021

Screw (M4 x 25.4 mm, Flat Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000317

Operator's Manual

Note: Not Shown

$

$

Not available
