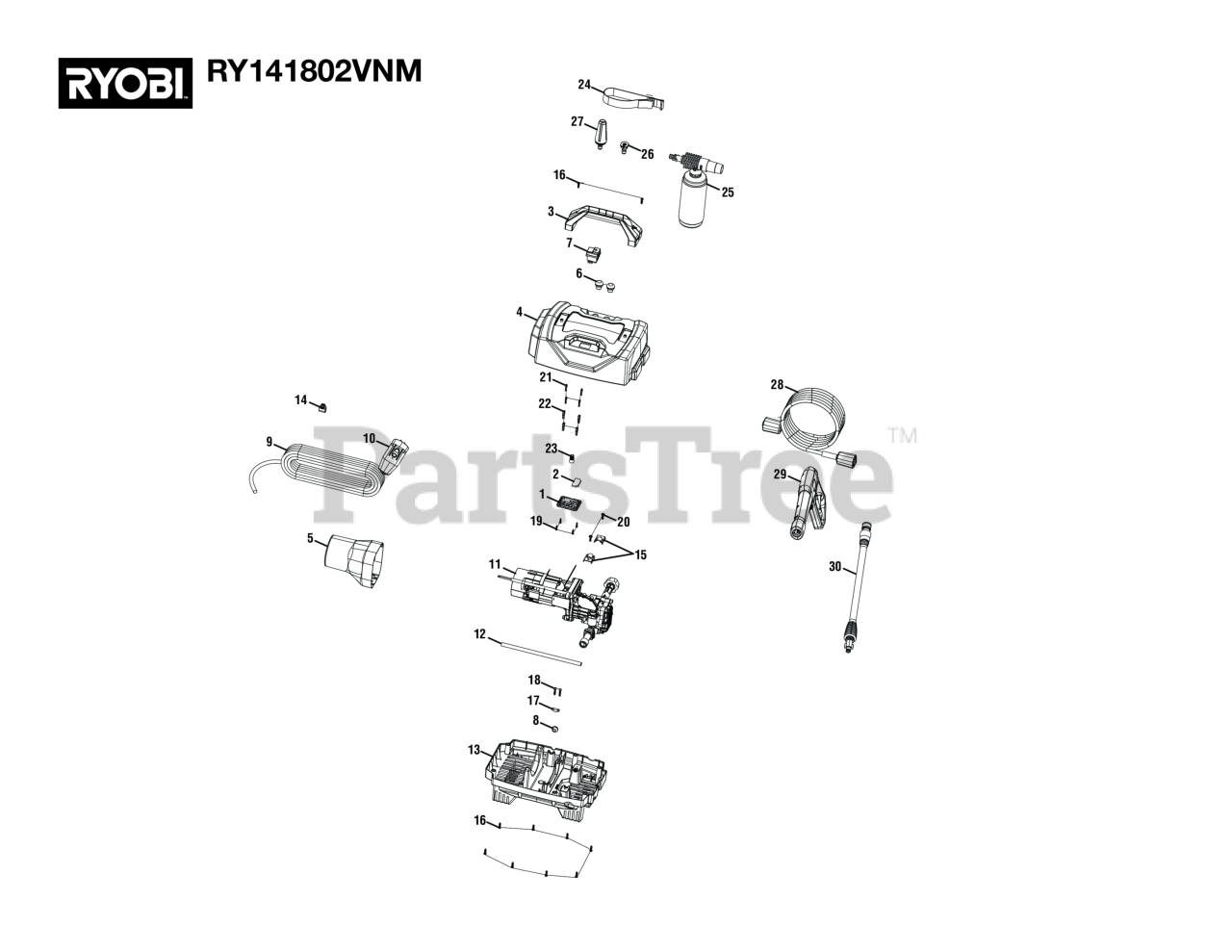

RY 141802 VNM (095079798) - Ryobi Pressure Washer, Electric, Rev 02 (2022-02) General Assembly Parts Diagram

Pressure Washer, Electric, Rev 02

General Assembly Parts Diagram

  • Title
1

Homelite 536489001

Switch Cover

$1.99

$

Usually ships in 3-7 days

0

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 527648011

Plastic Handle

$6.49

$

Usually ships in 3-7 days

0

4

Homelite 522032079

Upper Housing

$23.99

$

Usually ships in 3-7 days

0

5

Homelite 522038007

Air Shourd

$6.99

$

Usually ships in 3-7 days

0

6

Homelite 561383021

Nozzle Grommet

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 760504007

On/Off Switch

$10.99

$

In Stock, only 1 left!

0

8

Homelite 561383025

Housing Rubber Grommet

$

$

Not available

9

Homelite 290426047

Electrical Cord

$138.99

$

Usually ships in 3-7 days

0

10

Homelite 270290032

GFCI Plug 2 Prong

$97.99

$

Usually ships in 3-7 days

0

11

Homelite 308833069

Pump Motor

$

$

Currently unavailable

12

Homelite 570113003

Terminal Sleeve

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 522038031

Lower Housing

$

$

Not available

14

Homelite 528499001

Electric Cord Clip

$

$

Not available

15

Homelite 636204001

Motor Clamp Plate

$

$

Not available

16

Homelite 661403016

Screw (M4.2 x 15 mm, Phillips Hd. S.T.)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 522051003

Cord Clamp

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 661610008

Screw (M3.5 x 20 mm, Button Hd.)

$

$

Not available

19

Homelite 661403015

Screw (M2.9 x 14 mm, Pan Hd.)

$

$

Not available

20

Homelite 661403014

Screw w/ Washer (M4 x 16 mm, Round Hd.)

$

$

Not available

21

Homelite 630236004

Tinned Brass (Terminal)

$

$

Not available

22

Homelite 527784005

Plastic Sleeve (Terminal)

$

$

Not available

23

Homelite 870601001

Tuerca para alambre

$

$

Not available

24

Homelite 310801001

Hose Storage Strap (Velcro)

$3.49

$

In Stock, only 1 left!

0

25

Homelite 308450010

Foam Nozzle

$10.99

$

Usually ships in 3-7 days

0

26

Homelite 308698023

Nozzle (15 deg)

$

$

Not available

27

Homelite 308311040

Turbo Nozzle

$17.99

$

Usually ships in 3-7 days

0

28

Homelite 308835134

20ft Hose

$71.99

$

Usually ships in 0 days

0

29

Homelite 308760083

Trigger Handle Assembly

$

$

Not available

30

Homelite 308494075

Spray Wand Assembly

$22.99

$

Usually ships in 3-7 days

0

Homelite 998000642

Operator's Manual

Note: (960087619) | Not Shown

$

$

Currently unavailable
