RY 14110 - Ryobi 48V Walk-Behind Mower Figure B Parts Diagram

48V Walk-Behind Mower

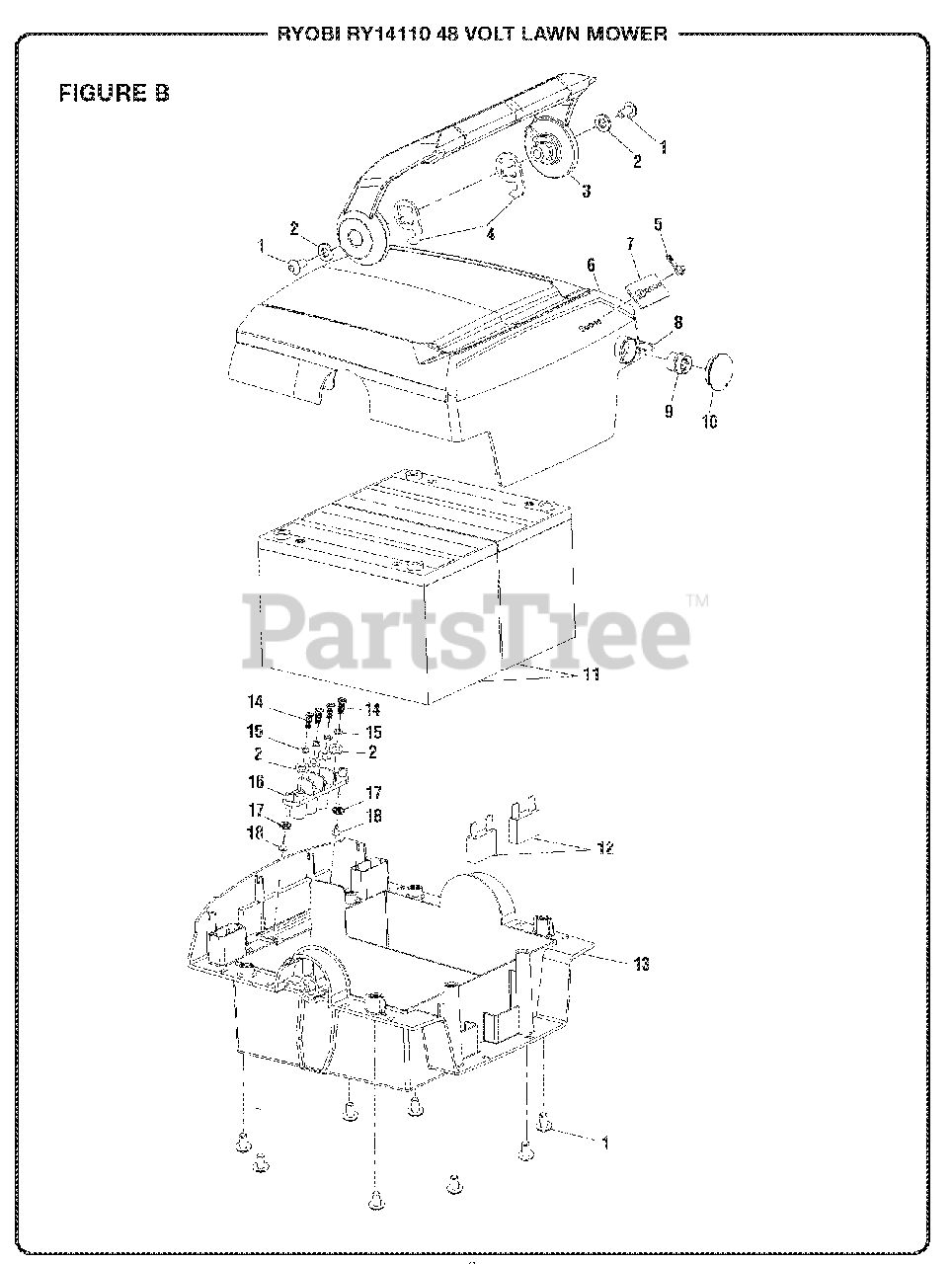

Figure B Parts Diagram

  • Title

1

Homelite 3220305G

Screw (4.2 x 18 mm, Pan Hd.)

$

$

Not available

2

Homelite 32914131AG

Washer (M5)

$

$

Not available

3

Homelite 34122250G

Battery Handle

$

$

Not available

4

Homelite 33301229G

Battery Hook

$

$

Not available

5

Homelite 34127250G

LED Battery Meter

$

$

Not available

6

Homelite 34120250G

Battery Cover

$

$

Not available

7

Homelite 36201250G

Battery Display Board

$

$

Not available

8

Homelite 34903250G

Lanyard

$

$

Currently unavailable

9

Homelite 36203250G

Charger Port

$

$

Not available

10

Homelite 34128250G

Battery Recepticle Cover

$

$

Not available

11

Homelite 36601250G

Battery Cell
(Superseded to 31104250G)

$

$

Not available

12

Homelite 36504229G

Fuse (60 Amp)

$11.99

$

Usually ships in 3-7 days

0

13

Homelite 34121250G

Battery Case

$

$

Not available

14

Homelite 32202250G

Screw (M5 x 6 mm)

$

$

Not available

15

Homelite 32903250G

Lock Washer (M5)

$

$

Not available

16

Homelite 34125250G

Upper Connector

$

$

Not available

17

Homelite 3290951G

Washer (M4)

$

$

Currently unavailable

18

Homelite 3220345G

Screw (M3.5 x 12 mm, Pan Hd.)

$

$

Not available
