RY 14110 - Ryobi 48V Walk-Behind Mower Figure A (Part 2) Parts Diagram

48V Walk-Behind Mower

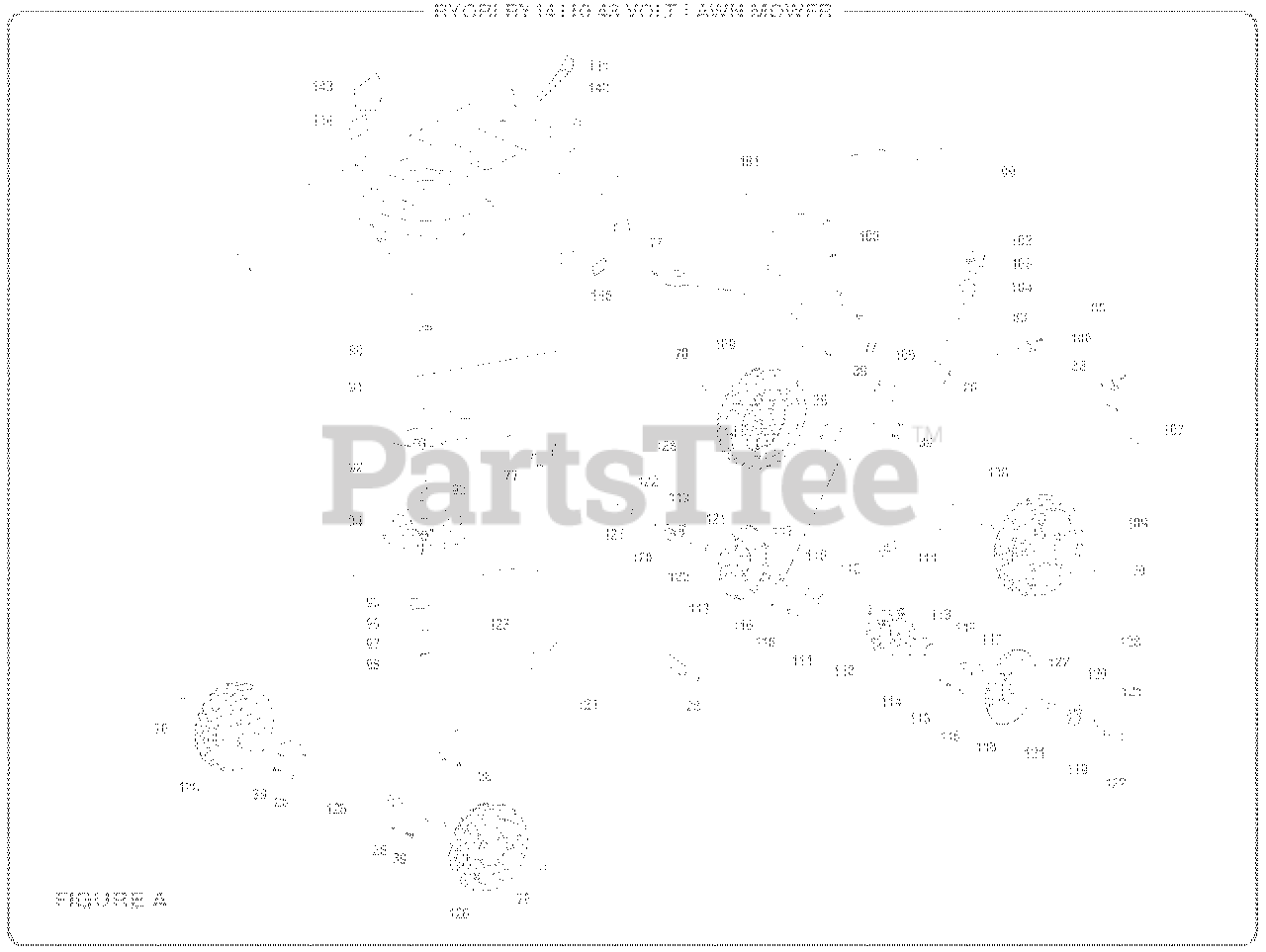

Figure A (Part 2) Parts Diagram

  • Title

26

Homelite 3220439G

Lock Nut (M5)

$1.49

$

In Stock, only 2 left!

0

28

Homelite 3220537G

Lock Nut (M6)

$

$

Not available

39

Homelite 32206250G

Screw (M5 x 12 mm)

$

$

Not available

70

Homelite 32910131G

Lock Nut (M10)

$

$

Not available

77

Homelite 32205234G

Screw (M6.3 x 16 mm, Pan Hd.)

$

$

Not available

83

Homelite 3221237G

Lock Nut (M4)

$

$

Not available

85

Homelite 3220511G

Screw (M4 x 12 mm, Pan Hd.)

$

$

Not available

90

Homelite 33901250G

Pulley

$

$

Not available

91

Homelite 34201250G

Belt

$

$

Not available

92

Homelite 34106250G

Belt Cover

$

$

Not available

93

Homelite 3220416G

Screw (M5 x 25 mm, Pan Hd.)

$

$

Not available

94

Homelite 34107250G

Fan

$

$

Not available

95

Homelite 33313250G

Blade

$56.99

$

In Stock, only 1 left!

0

96

Homelite 3410535G

Spacer

$

$

Not available

97

Homelite 33322250G

Blade Retainer

$

$

Not available

98

Homelite 32902250G

Hex Lock Nut (M12)

$

$

Not available

99

Homelite 34109250G

Mulching Plug

$4.99

$

In Stock, only 2 left!

0

100

Homelite 32210234G

Screw (M6.3 x 12 mm, Pan Hd.)

$

$

Not available

101

Homelite 34108250G

Rear Discharge Baffle

$

$

Not available

102

Homelite 34130250G

Height Adjustment Knob (Upper)

$

$

Not available

103

Homelite 34131250G

Height Adjustment Knob (Lower)

$

$

Not available

104

Homelite 33304234G

Height Adjustment Lever

$

$

Not available

105

Homelite 33303234G

Spring Plate

$

$

Not available

106

Homelite 3330490AG

Mounting Bracket

$

$

Not available

107

Homelite 34202250G

Rear Skirt

$

$

Not available

108

Homelite 33302250G

Rear Wheel Axle

$

$

Not available

109

Homelite 31101234G

Wheel (8 in.)

$

$

Not available

110

Homelite 32101234G

Flange Bushing

$

$

Not available

111

Homelite 33318234G

Retention Spring

$

$

Not available

112

Homelite 31102250G

Transmission

$

$

Not available

113

Homelite 33908234G

Housing

$

$

Not available

114

Homelite 3231235G

Washer (D6 x D12 x 0.8t)

$

$

Not available

115

Homelite 32906131G

Washer (M6)

$

$

Not available

116

Homelite 3220150G

Screw (M6 x 15 mm, Pan Hd.)

$

$

Not available

117

Homelite 32902234G

Retaining Ring (26)

$

$

Not available

118

Homelite 34104234G

Wheel Dust Cover

$

$

Not available

119

Homelite 32906234G

Dowel Pin

$

$

Not available

120

Homelite 33204234G

Pinion Gear

$

$

Not available

121

Homelite 34110234G

Washer

$

$

Not available

122

Homelite 32905234G

Retaining Ring (10)

$

$

Not available

123

Homelite 33312234G

Retention Spring

$

$

Not available

124

Homelite 33311250G

Lift Rod

$

$

Not available

125

Homelite 33301250G

Front Wheel Axle

$

$

Not available

126

Homelite 31103234G

Wheel (7 in.)

$

$

Not available

128

Homelite 31108250G

Gear Assy

$

$

Not available

141

Homelite 38111250G

Fuse Key Label

$

$

Not available

142

Homelite 38110250G

Warning Label

$

$

Not available

143

Homelite 38114250G

ANSI Warning Label

$

$

Not available

144

Homelite 38106250G

Attachment Warning Label

$

$

Not available

145

Homelite 38107250G

Data Label

$

$

Not available

Homelite 987000860

Operator's Manual

Note: (Not Shown)

$

$

Not available
