RY 14110 - Ryobi 48V Walk-Behind Mower Figure A (Part 1) Parts Diagram

48V Walk-Behind Mower

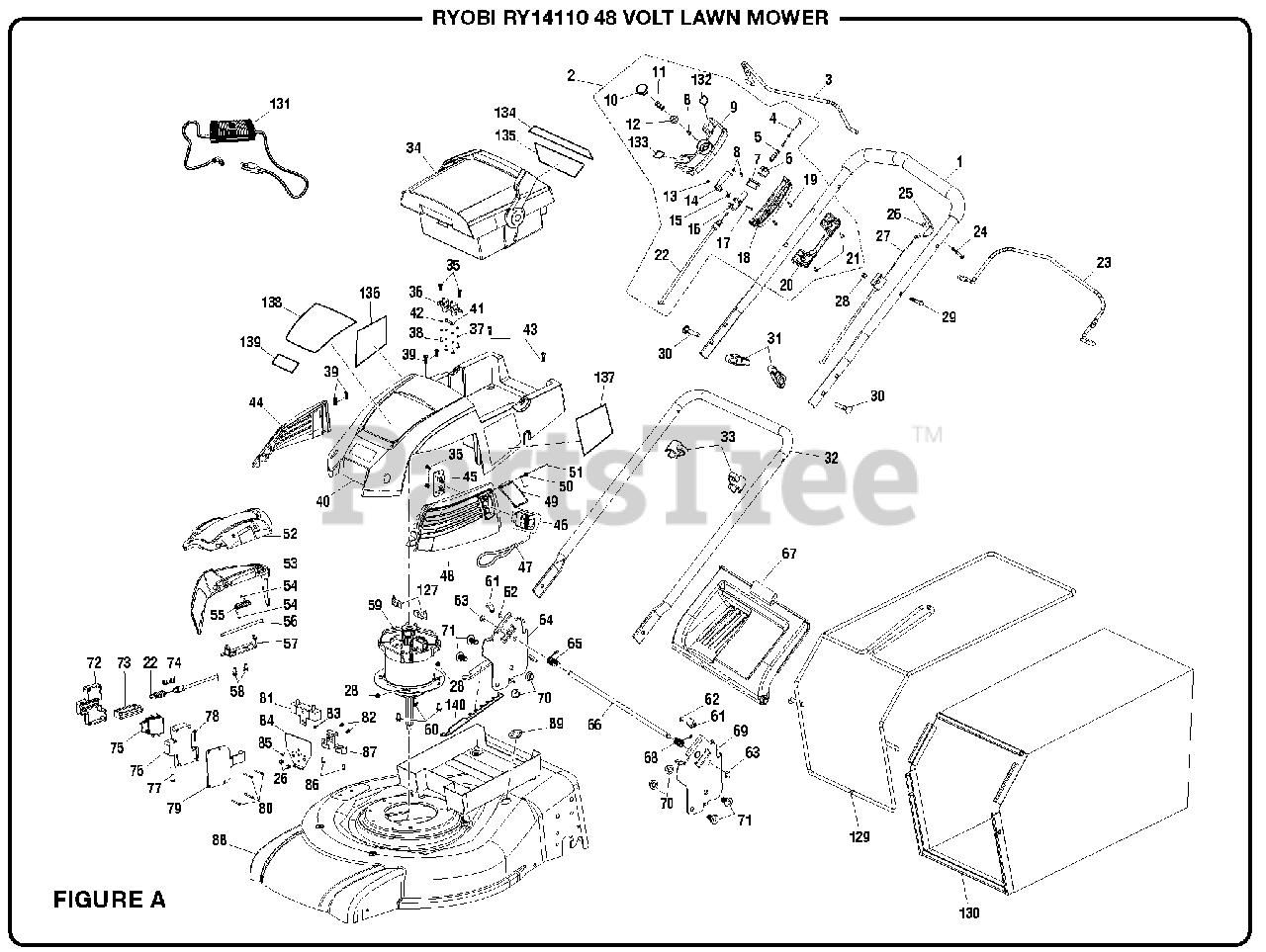

Figure A (Part 1) Parts Diagram

  • Title

1

Homelite 31101250G

Upper Handle Assembly

$

$

Not available

2

Homelite 31107250G

Start Cable Assembly

$

$

Not available

3

Homelite 33304250G

Start Bail

$

$

Not available

4

Homelite 31901250G

Start Cable (Short)

$

$

Not available

5

Homelite 33318250G

Compression Spring

$1.49

$

In Stock, only 1 left!

0

6

Homelite 33319250G

Slide

$

$

Not available

7

Homelite 34118250G

Block

$

$

Not available

8

Homelite 3220735G

Screw (M2.9 x 8 mm, Pan Hd.)

$

$

Not available

9

Homelite 34110250G

Upper Cover Motor Engagement Box

$

$

Not available

10

Homelite 34129250G

Push Button

$

$

Not available

11

Homelite 33401229G

Spring

$

$

Not available

12

Homelite 34132250G

Bottom Button

$

$

Not available

13

Homelite 32904250G

Hex Nut

$

$

Not available

14

Homelite 33315250G

Spring Plate

$

$

Not available

15

Homelite 33316250G

Torsion Spring

$

$

Not available

16

Homelite 33317250G

Steel Slide

$

$

Not available

17

Homelite 32204250G

Bolt (M3 x 20 mm)

$

$

Not available

18

Homelite 34116250G

Motor Engagement Box Lower Cover

$

$

Not available

19

Homelite 3220346G

Screw (M3.5 x 20 mm, Pan Hd.)

$

$

Not available

20

Homelite 34111250G

Motor Engagement Box Lower

$

$

Not available

21

Homelite 32204113G

Screw (M4.2 x 20 mm, Pan Hd.)

$

$

Not available

22

Homelite 31902250G

Start Cable (Long)

$

$

Not available

23

Homelite 33305250G

Drive Bail

$

$

Not available

24

Homelite 32208250G

Bolt (M5 x 30 mm)

$1.49

$

In Stock, only 2 left!

0

25

Homelite 33323250G

Stop Block

$1.49

$

In Stock, only 2 left!

0

26

Homelite 3220439G

Lock Nut (M5)

$1.49

$

In Stock, only 2 left!

0

27

Homelite 31903250G

Drive Cable

$

$

Not available

28

Homelite 3220537G

Lock Nut (M6)

$

$

Not available

29

Homelite 32204234G

Bolt (M6 x 35 mm, Hex Hd.)

$

$

Not available

30

Homelite 3220436BG

Screw (M8 x 48 mm, Handle)

$

$

Not available

31

Homelite 34105250G

Handle Knob

$

$

Not available

32

Homelite 33306250G

Lower Handle

$

$

Not available

33

Homelite 3411135G

Cord Retainer

$

$

Not available

34

Homelite 31104250G

Battery Assembly (See Figure B)

$

$

Not available

35

Homelite 3220345G

Screw (M3.5 x 12 mm, Pan Hd.)

$

$

Not available

36

Homelite 34126250G

Lower Connector

$

$

Not available

37

Homelite 32903250G

Lock Washer (M5)

$

$

Not available

38

Homelite 32202250G

Screw (M5 x 6 mm)

$

$

Not available

39

Homelite 32206250G

Screw (M5 x 12 mm)

$

$

Not available

40

Homelite 34102250G

Motor Shroud

$

$

Not available

41

Homelite 33329250G

Copper Plate

$

$

Not available

42

Homelite 32914131AG

Washer (M5)

$

$

Not available

43

Homelite 3220751G

Screw (M5 x 8 mm)

$

$

Not available

44

Homelite 34103250G

Vent (Left)

$

$

Not available

45

Homelite 36205250G

Fuse Lower Connector

$

$

Not available

46

Homelite 31110250G

Fuse Key Assembly (Inc. Key No.47)

$

$

Not available

47

Homelite 34902250G

Lanyard

$

$

Not available

48

Homelite 34104250G

Vent (Right)

$

$

Not available

49

Homelite 34117250G

Fuse Key Cover

$

$

Not available

50

Homelite 33321250G

Fuse Key Spring

$

$

Not available

51

Homelite 33320250G

Fuse Key Hinge Rod

$

$

Not available

52

Homelite 34123250G

Side Discharge Door

$

$

Not available

53

Homelite 34124250G

Side Discharge Deflector

$

$

Not available

54

Homelite 3420207G

Spring End Cap

$

$

Not available

55

Homelite 33331250G

Door Spring

$

$

Not available

56

Homelite 33308250G

Door Hinge Rod

$

$

Not available

57

Homelite 33307250G

Hinge Bracket

$

$

Not available

58

Homelite 3220136G

Bolt (M6 x 8 mm, Hex Hd.)

$

$

Not available

59

Homelite 36101250G

Motor

$

$

Not available

60

Homelite 3220137G

Bolt (M6 x 12 mm, Hex Hd.)

$

$

Not available

61

Homelite 33324250G

Mounting Bracket

$

$

Not available

62

Homelite 32901131G

Retaining Ring (6)

$

$

Not available

63

Homelite 3290506G

Retaining Ring (8)

$

$

Not available

64

Homelite 33314250G

Handle Bracket (Right)

$

$

Not available

65

Homelite 33313234AG

Torsion Spring (Right)

$

$

Not available

66

Homelite 33201250G

Rear Cover Rod

$

$

Not available

67

Homelite 34101250G

Rear Cover

$

$

Not available

68

Homelite 33310234AG

Torsion Spring (Left)

$

$

Not available

69

Homelite 33310250G

Handle Bracket (Left)

$

$

Not available

70

Homelite 32910131G

Lock Nut (M10)

$

$

Not available

71

Homelite 32207234G

Bolt (Button Hd.)

$

$

Not available

72

Homelite 34134250G

Motor Switch Cover (Outside)

$

$

Not available

73

Homelite 34114250G

Motor Switch Actuator

$

$

Not available

74

Homelite 33332250G

Compression Spring

$

$

Not available

75

Homelite 36301250G

Switch

$

$

Not available

76

Homelite 34113250G

Motor Switch Cover (Inside)

$

$

Not available

77

Homelite 32205234G

Screw (M6.3 x 16 mm, Pan Hd.)

$

$

Not available

78

Homelite 32205250G

Screw (M5 x 40 mm, Pan Hd.)

$

$

Not available

79

Homelite 33325250G

Motor Switch Mounting Bracket

$

$

Not available

80

Homelite 32205404G

Screw (M4.2 x 35 mm, Pan Hd.)

$

$

Not available

81

Homelite 36901250G

Resistor

$

$

Not available

82

Homelite 3220850G

Screw (M5 x 20 mm, Pan Hd.)

$

$

Not available

83

Homelite 3221237G

Lock Nut (M4)

$

$

Not available

84

Homelite 3331437G

Heat Shield

$

$

Not available

85

Homelite 3220511G

Screw (M4 x 12 mm, Pan Hd.)

$

$

Not available

86

Homelite 32213100G

Screw (M4.8 x 12 mm, Pan Hd.)

$

$

Not available

87

Homelite 3410290AG

Resistance Support

$

$

Not available

127

Homelite 3110739CG

Brush Assembly
(Superseded to 3110739AG)

$

$

Not available

129

Homelite 33312250G

Frame

$

$

Not available

130

Homelite 34901250G

Catcher

$

$

Not available

131

Homelite 31109250G

Charger
(Superseded to 31109250AG)

$

$

Not available

132

Homelite 38108250G

Ignition Instruction Label 1

$

$

Not available

133

Homelite 38109250G

Ignition Instruction Label 2

$

$

Not available

134

Homelite 38112250G

Battery Status Label

$

$

Not available

135

Homelite 38113250G

Battery Warning Label

$1.99

$

Usually ships in 3-7 days

0

136

Homelite 38104250G

Danger Label 1

$

$

Not available

137

Homelite 38105250G

Danger Label 2

$

$

Not available

138

Homelite 38101250G

Main Label

$

$

Not available

139

Homelite 38102250G

Ryobi Badge

$

$

Not available

140

Homelite 38103250G

Height Adjust Label

$

$

Not available

Homelite 987000860

Operator's Manual

Note: (Not Shown)

$

$

Not available
