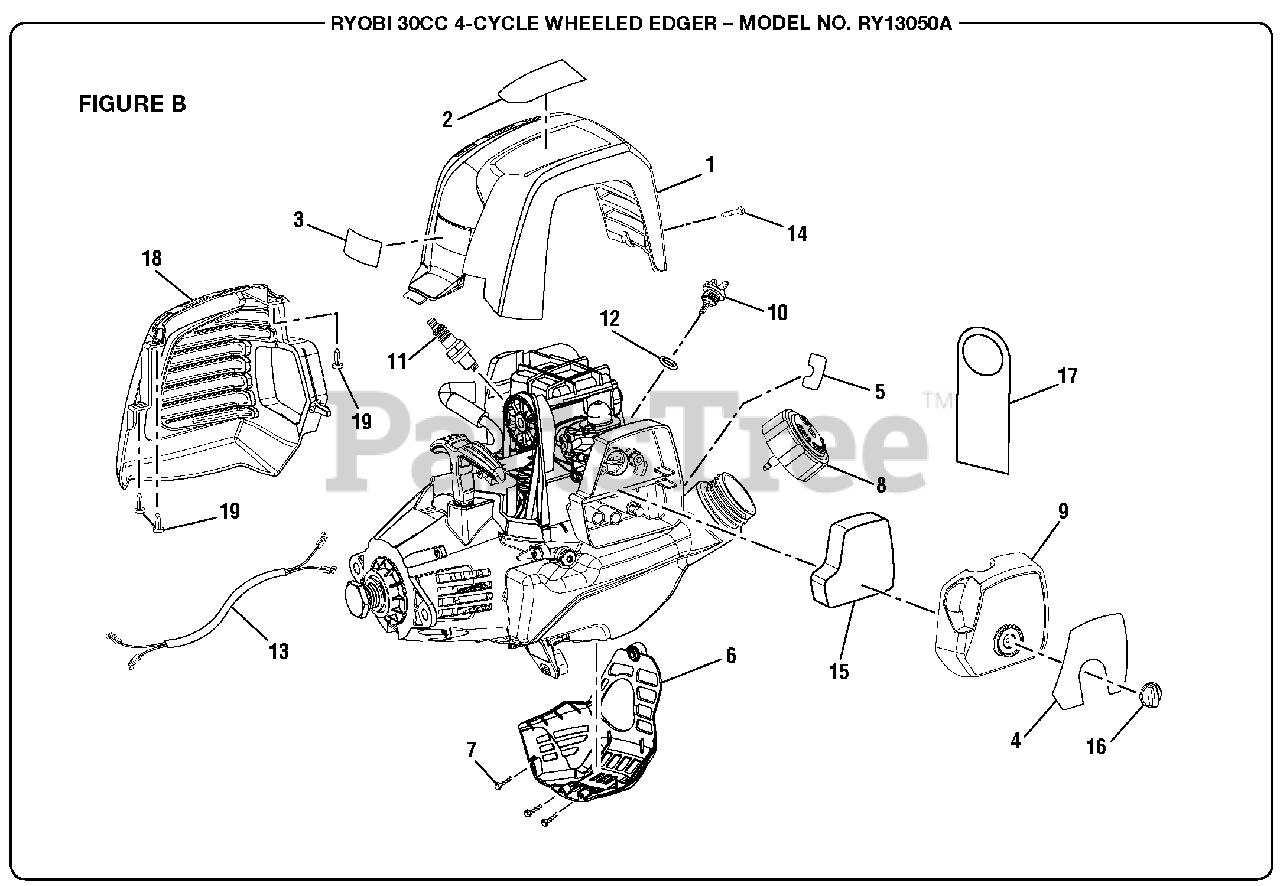

RY 13050 A - Ryobi Walk-Behind Edger, 30cc Figure B Parts Diagram

Walk-Behind Edger, 30cc

Figure B Parts Diagram

  • Title

1

Homelite 518142003

Top Cover

$9.49

$

Usually ships in 3-7 days

0

2

Homelite 940705064

Label

Note: (RY13050)

$

$

Currently unavailable

3

Homelite 940705020

Logo Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 940686051

Starting Label

$

$

Not available

5

Homelite 940680023

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 518548001

Bottom Cover

$2.99

$

Usually ships in 3-7 days

0

7

Homelite T660619001

Screw (M6-19 x 1/2 in.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 310816002

Fuel Cap Assembly

$

$

Not available

9

Homelite 310266001

Air Box Cover (Incl. key no. 16)

$

$

Not available

10

Homelite 310302001

Oil Cap/Dipstick (Incl. key no. 12)

$3.99

$

Usually ships in 3-7 days

0

11

Homelite 870217001

Spark Plug (Champion RZ7C)
(Superseded to 870301002)

Note: Purchase Locally

$8.49

$

In Stock, only 1 left!

0

12

Homelite 570400001

O-Ring

$1.99

$

In Stock, only 3 left!

0

13

Homelite 308863022

Wiring Harness

$4.99

$

In Stock, only 1 left!

0

14

Homelite 660510005

Screw (M4 x 20 mm)

$

$

Not available

15

Homelite 901454002

Air Filter

$2.49

$

Usually ships in 3-7 days

0

16

Homelite 590461001

Air Cover Knob
(Superseded to 5946101)

$1.99

$

In Stock, only 2 left!

0

17

Homelite 940971028

Hang Tag

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 518995001

Muffler Cover

$6.49

$

Usually ships in 3-7 days

0

19

Homelite 660466002

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0
