RY 13010 - Ryobi Walk-Behind Trimmer, 30cc Figure B Parts Diagram

Walk-Behind Trimmer, 30cc

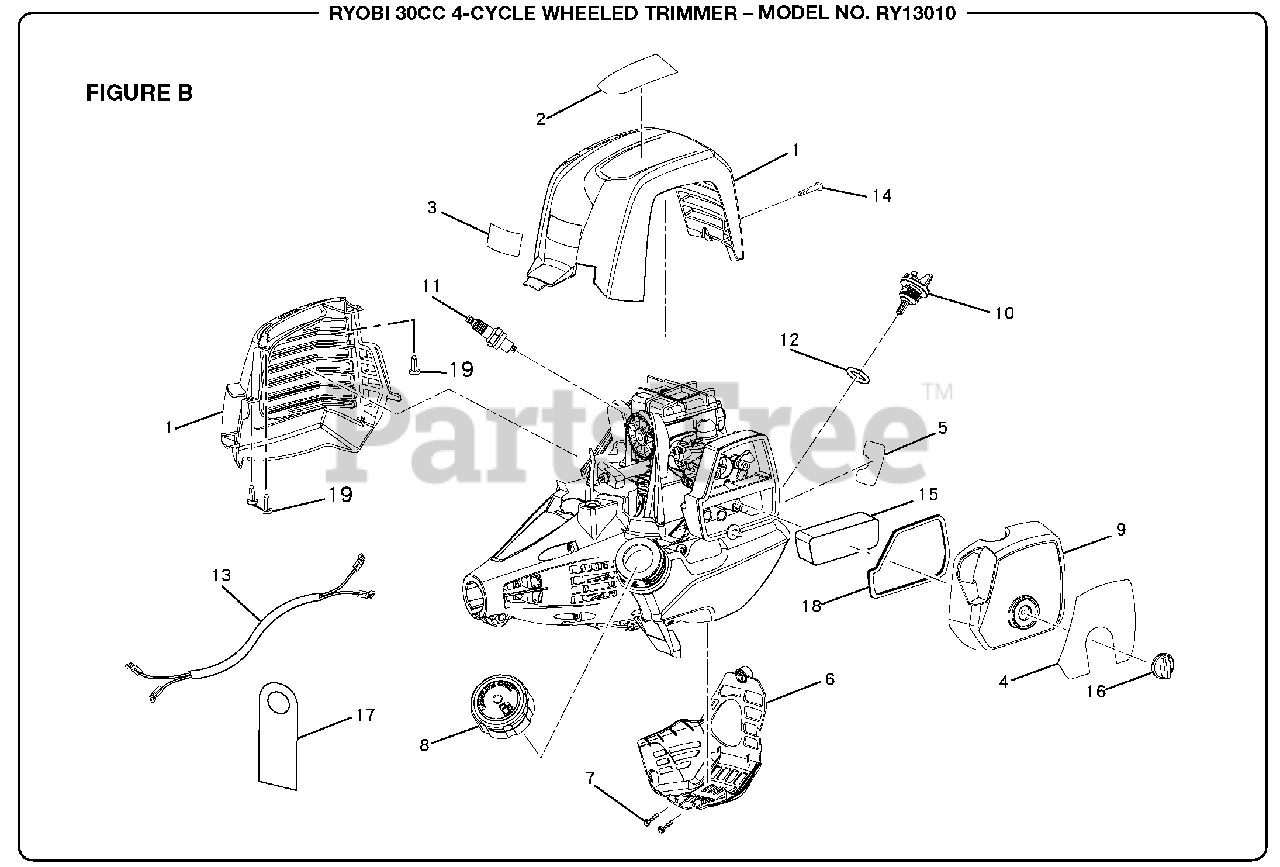

Figure B Parts Diagram

  • Title

1

Homelite 310592001

Top Cover Assembly
(Superseded to 518142002)

$

$

Not available

2

Homelite 940991034

Label (RY13010)

$

$

Not available

3

Homelite 940705020

Logo Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 940686051

Starting Label

$

$

Not available

5

Homelite 940680023

Hot Surface Label

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 518548001

Bottom Cover

$2.99

$

Usually ships in 3-7 days

0

7

Homelite T660619001

Screw (M6-19 x 1/2 in.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 310586003

Fuel Cap Assembly

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 310266001

Air Box Cover

$

$

Not available

10

Homelite 310302001

Oil Cap/Dipstick

$3.99

$

Usually ships in 3-7 days

0

11

Homelite 870217001

Spark Plug (Champion RZTC)
(Superseded to 870301002)

$9.99

$

In Stock, only 1 left!

0

12

Homelite 570400001

O-Ring

$1.99

$

In Stock, only 3 left!

0

13

Homelite 308863022

Wiring Harness

$4.99

$

In Stock, only 1 left!

0

14

Homelite 660510005

Screw (M5 x 20 mm)

$

$

Not available

15

Homelite 901688001

Air Filter

$

$

Not available

16

Homelite 590461001

Air Cover Knob
(Superseded to 5946101)

$1.99

$

In Stock, only 2 left!

0

17

Homelite 940971028

Hang Tag

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 570367001

Gasket

$

$

Not available

19

Homelite 660466002

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0
