RY 10521 A - Ryobi Chainsaw, 46cc Figure B Parts Diagram

Chainsaw, 46cc

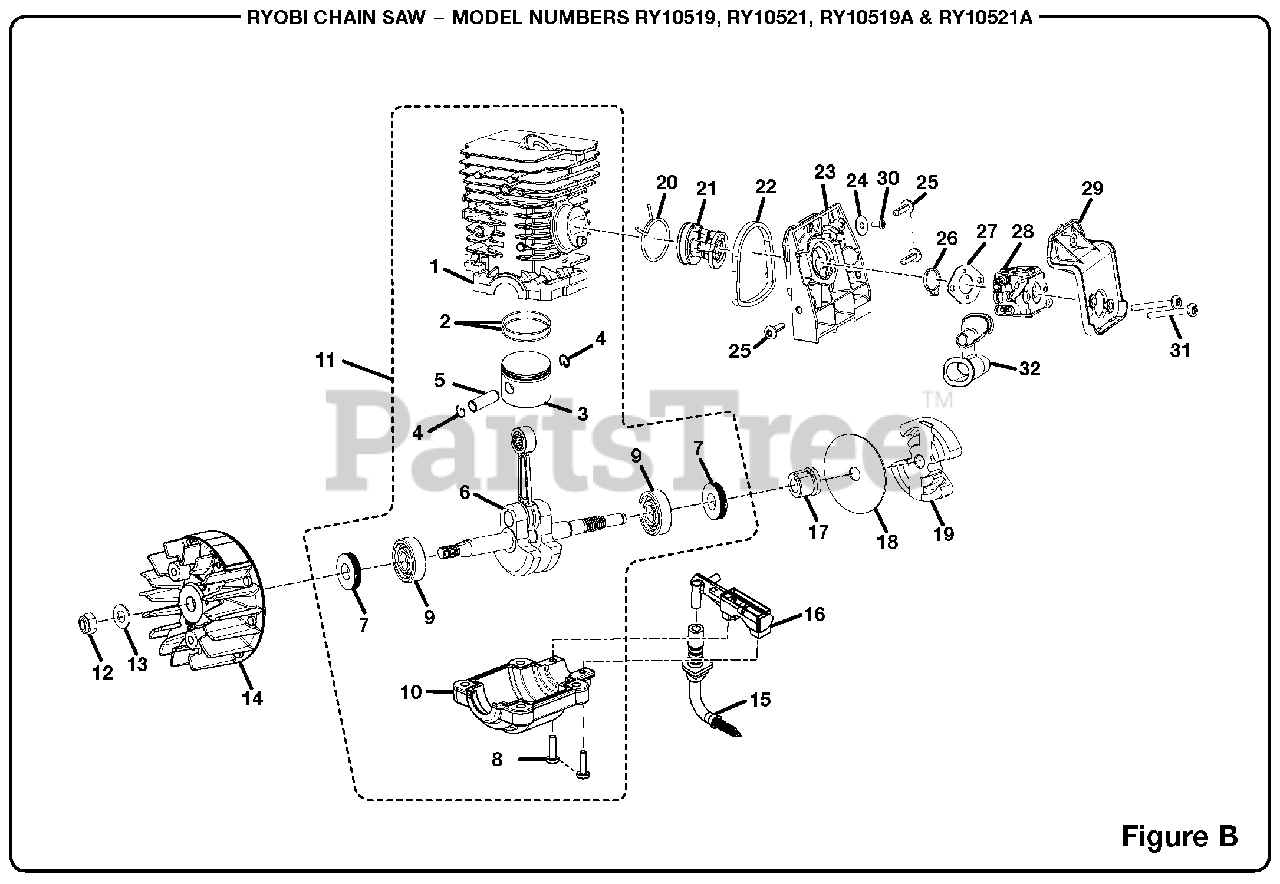

Figure B Parts Diagram

  • Title
1

$

$

Not available

2

Homelite 678747003

Piston Ring

$1.99

$

Usually ships in 3-7 days

0

$13.99

$

Usually ships in 3-7 days

0

4

Homelite 678053001

Retaining Ring

$1.99

$

In Stock, only 3 left!

0

5

Homelite 620392001

Piston Pin

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 309160007

Crankshaft Assembly

$52.99

$

In Stock, only 1 left!

0

7

Homelite 570220004

Shaft Seal

$3.99

$

In Stock, only 2 left!

0

8

Homelite 660627001

Screw (8-32 x 5/8 in.)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 671089002

Ball Bearing

$2.49

$

Usually ships in 3-7 days

0

10

Homelite 640843002

Crankcase

$

$

Not available

11

Homelite 309890007

Short Block Assembly (Inc. Key Nos. 1-10)

$

$

Not available

12

Homelite 678067001

Lock Nut (M8)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 631049001

Washer
(Superseded to PS84065)

$

$

Not available

14

Homelite 309010005

Flywheel Assembly

$19.99

$

Usually ships in 3-7 days

0

15

Homelite 300950001

Oil Intake Tube Assembly
(Superseded to PA01037)

$

$

Not available

16

Homelite 300945001

Oil Pump Assembly
(Superseded to PA01396)

$

$

Not available

17

Homelite T610389001

Left Hand Worm

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 631061001

Thrust Washer

$1.49

$

In Stock, only 2 left!

0

19

Homelite 300960003

Clutch Assembly

$

$

Not available

20

Homelite 671267001

Wire Clamp
(Superseded to PS04309)

$2.49

$

Usually ships in 3-7 days

0

21

Homelite 570243001

Intake Boot
(Superseded to PS02794)

$13.99

$

Usually ships in 3-7 days

0

22

Homelite 518047001

Carburetor Adaptor Seal
(Superseded to PS04374)

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 308081002

Carburetor Adapter

$6.99

$

Usually ships in 3-7 days

0

24

Homelite 671072001

Washer
(Superseded to 12789)

$

$

Not available

25

Homelite 660629001

Screw (10-14 x 3/4 in., T.F.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

26

Homelite 518045001

Carburetor Plate
(Superseded to PS04375)

$

$

Not available

27

Homelite 900886002

Carburetor Gasket

$1.99

$

In Stock, Qty 5

0

28

Homelite 309360002

Carburetor Assembly

$

$

Not available

29

Homelite 518048001

Air Filter Base
(Superseded to PA01284)

$

$

Not available

30

Homelite 660634001

Screw (8-16 x 5/16 in.)

$1.99

$

In Stock, Qty 20+

0

31

Homelite 660655001

Screw (10-32 x 1 3/4 in.)

$1.99

$

Usually ships in 3-7 days

0

32

$1.99

$

Usually ships in 3-7 days

0
