RY 10519 A - Ryobi Chainsaw, 46cc Figure A Parts Diagram

Chainsaw, 46cc

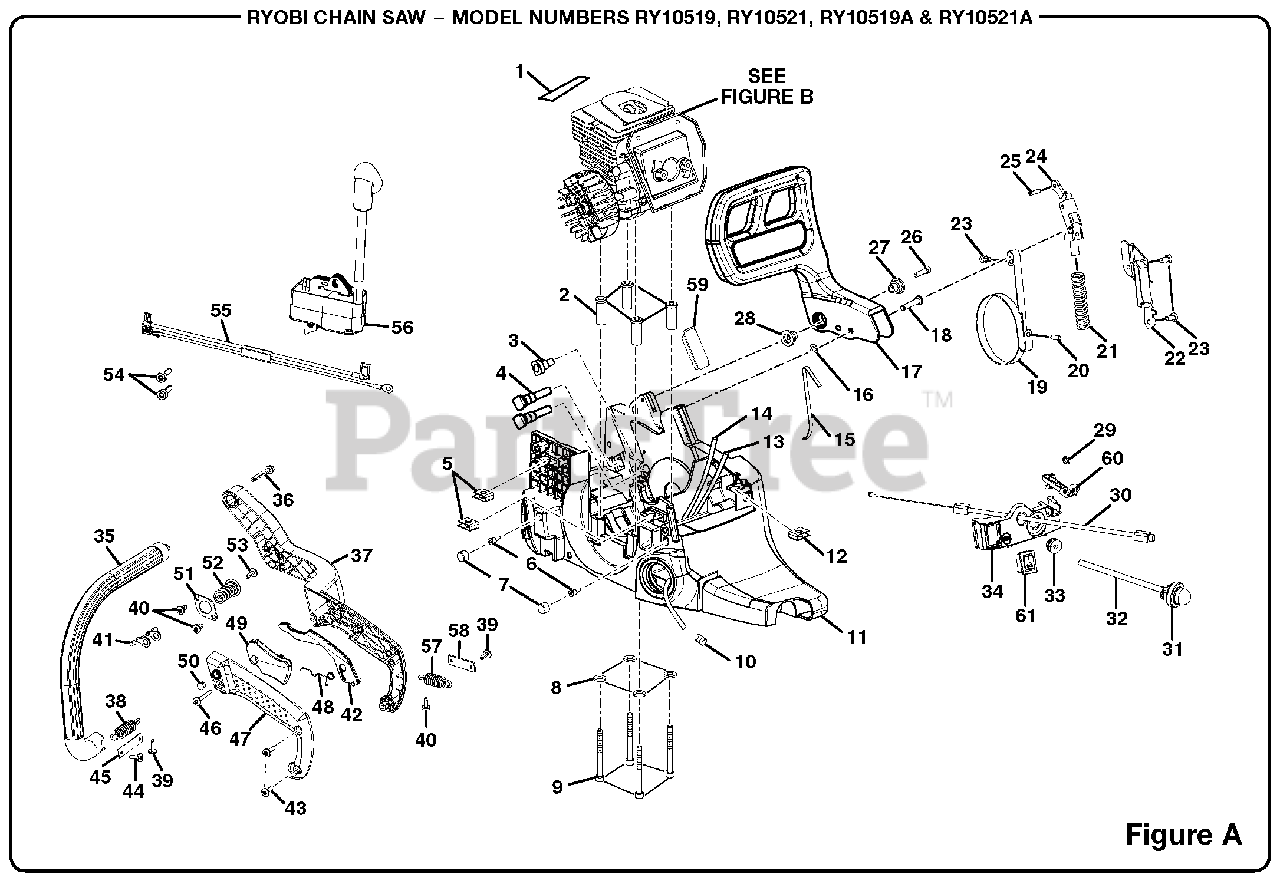

Figure A Parts Diagram

  • Title
1

Homelite 901421003

Heat Reflector Tape

$

$

Not available

2

Homelite 671087001

Spacer Insert

$

$

Not available

3

Homelite 570226001

Oil Outlet Grommet

$1.99

$

In Stock, only 4 left!

0

4

Homelite 660628001

Guide Bar Bolt
(Superseded to PS04881)

$

$

Not available

5

Homelite 671077001

Speed Nut ("U"-type)
(Superseded to 07598)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 560955001

Duck Bill Valve

$2.49

$

In Stock, Qty 9

0

7

$

$

Not available

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 660622001

Screw (10-24 x 2 in.)

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 690765001

Hose Clamp

$1.99

$

In Stock, Qty 6

0

11

$34.99

$

Usually ships in 3-7 days

0

12

Homelite 671077002

Speed Nut ("U"-type)

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 562967005

Inlet Tubing (166 mm)

$1.49

$

Usually ships in 3-7 days

0

14

Homelite 570259046

Return Tubing (220 mm)

$1.49

$

In Stock, only 3 left!

0

15

$1.99

$

In Stock, only 4 left!

0

16

Homelite 671075001

Retaining Ring
(Superseded to 69599)

$

$

Not available

17

Homelite 300985007

Hand Guard

$10.99

$

Usually ships in 3-7 days

0

18

Homelite 620282001

Hand Guard Actuating Pin

$1.99

$

In Stock, Qty 20+

0

19

Homelite 631063002

Brake Band
(Superseded to 985030001)

$

$

Not available

20

Homelite 671095001

Spring Pin

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 678113001

Spring
(Superseded to 984679001)

$

$

Not available

22

Homelite 511720002

Chain Brake Cover
(Superseded to 985021001)

$2.49

$

In Stock, Qty 5

0

23

Homelite 660634001

Screw (8-16 x 5/16 in.)

$1.99

$

In Stock, Qty 20+

0

24

Homelite 300954001

Chain Brake Link Assembly
(Superseded to A07612A)

$

$

Not available

25

Homelite 671099001

Spring Pin (Small)

$1.99

$

Usually ships in 3-7 days

0

26

Homelite 660635001

Screw (8-32 x 5/8 in.)

$1.99

$

In Stock, only 2 left!

0

27

Homelite 671096001

Pivot (Right Hand)

$1.99

$

In Stock, Qty 5

0

28

Homelite 671097001

Pivot (Left Hand)

$1.99

$

In Stock, Qty 5

0

29

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 900885001

Throttle Cable

$

$

Not available

31

Homelite 308088003

Primer Bulb

$

$

Not available

32

Homelite 570259051

Rubber Tubing (64 mm)

$1.49

$

Usually ships in 3-7 days

0

33

Homelite 570227001

Split Grommet

$1.99

$

In Stock, only 1 left!

0

34

Homelite 518044004

Control Panel

$

$

Not available

35

Homelite 511724005

Front Handle
(Superseded to 511724011)

$

$

Not available

36

Homelite 660631001

Screw (12-14 x 1-1/2 in.)
(Superseded to 82615)

$4.99

$

Usually ships in 3-7 days

0

37

Homelite 511721008

Rear Handle

$

$

Not available

38

$1.99

$

Usually ships in 3-7 days

0

39

Homelite 660632001

Screw (10-14 x 5/8 in., T.F.)
(Superseded to 82621)

$

$

Not available

40

Homelite 660618001

Screw (10-14 x 1/2 in., T.F.)
(Superseded to 82541)

$1.99

$

In Stock, only 3 left!

0

41

Homelite 308776005

Limiter (Upper Isolator Spring)

$2.99

$

Usually ships in 3-7 days

0

42

Homelite 518051007

Trigger Release

$2.49

$

Usually ships in 3-7 days

0

43

Homelite 660629001

Screw (10-14 x 3/4 in., T.F.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

44

Homelite 660719001

Screw (10-14 x 5/8 in., T.F.)

$1.99

$

In Stock, only 4 left!

0

45

Homelite 631050003

Spring Retainer

$1.99

$

Usually ships in 3-7 days

0

46

Homelite 660633001

Screw (10-14 x 1-3/8 in.)
(Superseded to 82622)

$2.49

$

Usually ships in 3-7 days

0

47

Homelite 511722009

Handle Cover

$

$

Not available

48

Homelite 678037001

Torsion Spring
(Superseded to PS04914)

$2.49

$

Usually ships in 3-7 days

0

49

$2.49

$

Usually ships in 3-7 days

0

$

$

Not available

51

Homelite 631051001

Isolator Plate

$

$

Not available

52

Homelite 671098003

Isolator Spring

$1.99

$

Usually ships in 3-7 days

0

53

Homelite 660630001

Screw (10-24 x 5/8 in., T.F.)

$1.99

$

Usually ships in 3-7 days

0

54

Homelite 660639001

Screw (8-32 x 3/4 in., T.F.)

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 290298002

Ignition Switch Assembly

$3.49

$

Usually ships in 3-7 days

0

56

Homelite 309261003

Ignition Kit

$

$

Not available

57

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 631050004

Spring Retainer

$1.99

$

Usually ships in 3-7 days

0

59

$1.99

$

Usually ships in 3-7 days

0

60

Homelite 511709007

Choke Lever

$

$

Not available

61

Homelite 760338002

Stop Switch

$

$

Not available
