RY 09951 - Ryobi Blower Vacuum Figure A Parts Diagram

Blower Vacuum

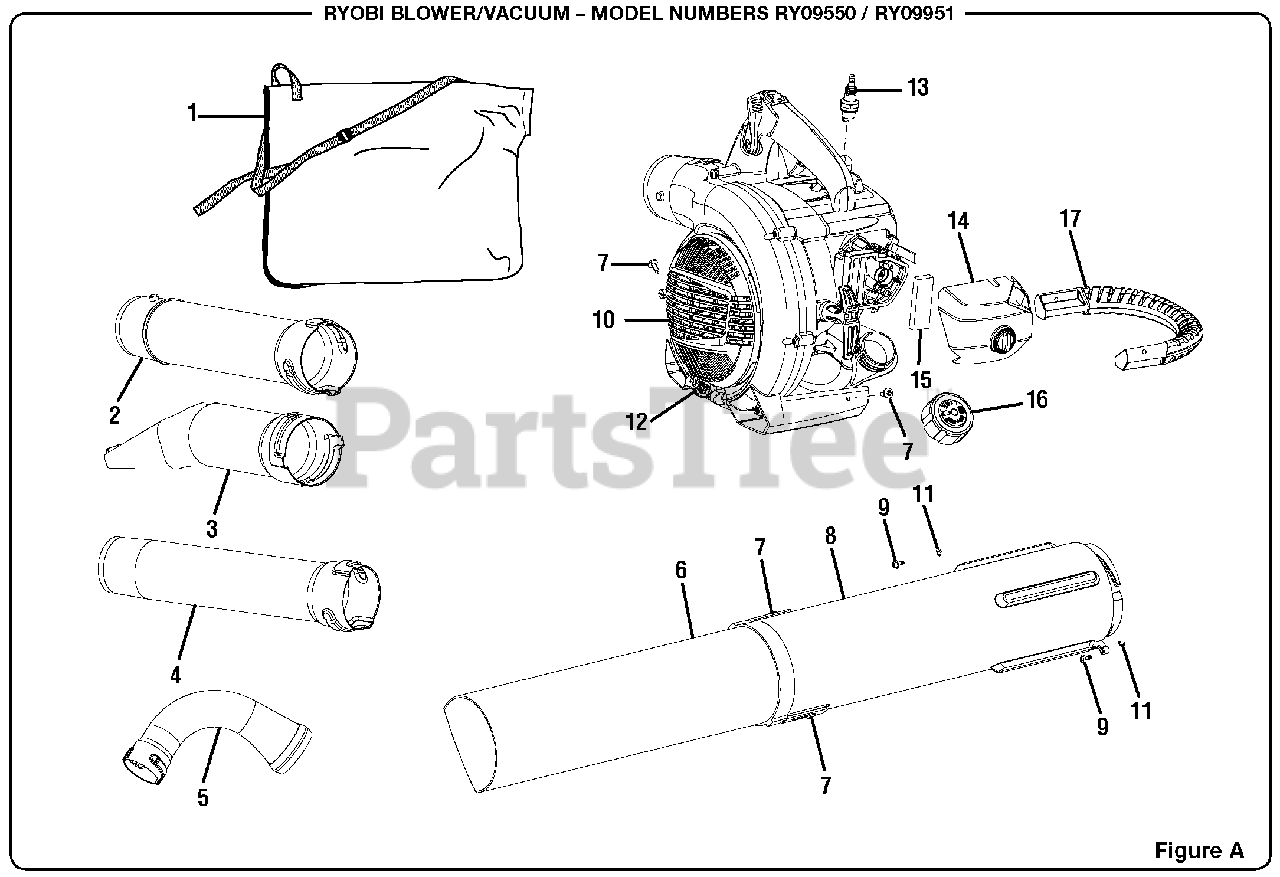

Figure A Parts Diagram

  • Title

1

Homelite 900960001

Vacuum Bag w/Shoulder Strap

$23.99

$

Usually ships in 3-7 days

0

2

Homelite 570543001

Upper Blower Tube
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

3

Homelite 580613001

High Velocity Nozzle w/Leaf Scraper

$

$

Not available

4

Homelite 580537001

Sweeper Nozzle
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

5

Homelite 570563001

Vacuum Bag Adaptor

$

$

Not available

6

Homelite 570562001

Lower Vacuum Tube

$6.99

$

In Stock, only 1 left!

0

7

Homelite 660621001

Screw (10-14 x 1/2 in.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

8

Homelite 580892001

Upper Vacuum Tube

$

$

Not available

9

Homelite 660880001

Screw (1/4-20 x 3/4 in.)

$1.99

$

In Stock, only 2 left!

0

10

Homelite 521500001

Vacuum Door

$

$

Not available

11

Homelite 650027001

E-ring

$1.99

$

In Stock, only 4 left!

0

12

Homelite 678726001

Vacuum Door Spring

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 870174001

Spark Plug (RCJ6Y)

Note: Purchase Locally

$4.49

$

In Stock, Qty 20+

0

14

Homelite 310804001

Air Filter Cover

$

$

Not available

15

Homelite 560873003

Filter

$

$

Not available

16

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

17

Homelite 521504001

Vacuum Handle

$

$

Not available

Homelite 940835001

Run/Start Label

Note: (Not Shown)

$

$

Not available

Homelite 940734062

Starting Label

Note: (Not Shown)

$1.49

$

Usually ships in 3-7 days

0

Homelite 940657039

Warning Label

Note: (Not Shown)

$1.49

$

Usually ships in 3-7 days

0

Homelite 940752006

Logo Label (Small)

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 940705075

Logo Label (Large)

Note: (Not Shown)

$1.99

$

Usually ships in 3-7 days

0

Homelite 987000753

Operator's Manual (960413001)

Note: (Not Shown)

$

$

Not available
