RY 09905 - Ryobi Blower Vacuum Figure B Parts Diagram

Blower Vacuum

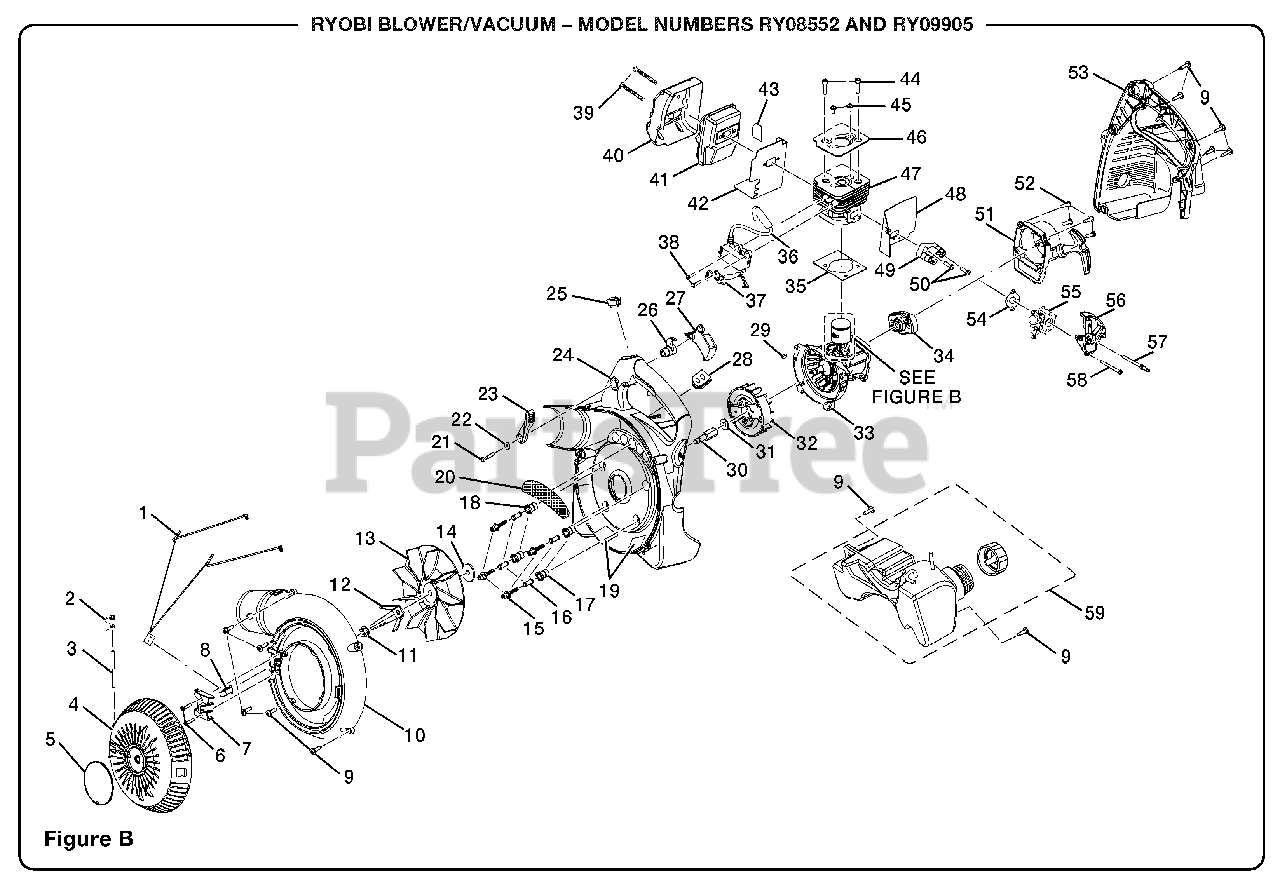

Figure B Parts Diagram

  • Title

1

Homelite 870166001

Vacuum Door Kill Switch

$

$

Not available

2

Homelite 678117001

Vacuum Door Hinge Spring

$2.49

$

Usually ships in 3-7 days

0

3

Homelite 650026002

Hinge Pin

$

$

Not available

4

Homelite 518268031

Vacuum Door

$

$

Currently unavailable

5

Homelite 518252001

Vacuum Door Cover

$4.49

$

Usually ships in 3-7 days

0

6

Homelite 660665001

Screw (M4 x 19 mm)

Note: Purchase locally

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 518170001

Vacuum Door Hinge

$

$

Not available

8

Homelite 518254001

Kill Switch Activator Lever

$

$

Not available

9

Homelite 660674001

Screw (M14 x 7/8 in.)
(Superseded to 82537)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 518266031

Outer Volute Housing

$8.99

$

Usually ships in 3-7 days

0

11

Homelite 678128002

Hex Nut w/Retaining Washer

$1.99

$

In Stock, only 1 left!

0

12

Homelite 678114001

Mulcher Blade

$

$

Not available

13

Homelite 518265001

Blower Fan (25.4cc)

$

$

Not available

14

Homelite 678126001

Washer

Note: (Fan Spacer)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 660759002

Screw (M5 x 8 mm Cap Hd.)

Note: Purchase locally

$

$

Not available

16

Homelite 678124001

Sleeve Bushing

$1.49

$

Usually ships in 3-7 days

0

17

Homelite 570544002

Anti Vibration Bushing

$

$

Not available

18

Homelite 570544003

Vibration Isolator

$

$

Not available

19

Homelite 900955001

Heat Shield

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 638179001

Wire Mesh

$

$

Not available

21

Homelite 660666001

Screw (M4 x 25 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 678125001

Washer

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 518160001

Cruise Control Lever

$

$

Not available

24

Homelite 518140004

Inner Volute Housing

$

$

Not available

25

Homelite 760363003

Switch

$

$

Not available

26

Homelite 518150001

Trigger Lock

$1.49

$

In Stock, only 2 left!

0

27

Homelite 518255001

Trigger

$1.49

$

In Stock, only 1 left!

0

28

Homelite 570624001

Rubber Grommet

$

$

Not available

29

Homelite 690688001

Woodruff Key
(Superseded to 983784006)

Note: (S43C)

$

$

Not available

30

Homelite 308068002

Crankshaft Extension

$

$

Not available

31

Homelite 678171002

Washer (2.3 mm)

$

$

Not available

32

Homelite 640574001

Flywheel Assembly
(Superseded to 6457401)

$

$

Not available

33

Homelite 300749004

Crankcase Assembly

$113.99

$

Usually ships in 3-7 days

0

34

Homelite 308004001

Pulley Assembly

$17.99

$

Usually ships in 3-7 days

0

35

Homelite 900709001

Cylinder Gasket
(Superseded to 9070901)

$

$

Not available

36

Homelite 290178008

Coil & Boot Assembly

$

$

Not available

37

Homelite 290702001

Lead Assembly

$1.49

$

Usually ships in 3-7 days

0

38

Homelite 660349001

Screw (M4 x 22 mm)

Note: Purchase locally

$1.99

$

In Stock, Qty 5

0

39

Homelite 660347001

Screw (M5 x 50 mm)

Note: Purchase locally

$1.99

$

In Stock, only 1 left!

0

40

Homelite 638027001

Heat Shield

$4.49

$

Usually ships in 3-7 days

0

41

Homelite 300748016

Muffler Assembly

$

$

Not available

42

Homelite 638183001

Gasket Muffler

$8.99

$

In Stock, only 3 left!

0

43

Homelite 900955003

Heat Shield

$

$

Not available

44

Homelite 660342001

Screw (M5 x 22 mm)

Note: Purchase locally

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 660351002

Screw w/Washer (M5 x 10 mm)
(Superseded to 983660005)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

46

Homelite 630002021

Cylinder Plate

$1.49

$

In Stock, only 3 left!

0

47

Homelite 640570016

Cylinder
(Superseded to 640570026)

$35.99

$

In Stock, only 1 left!

0

48

Homelite 901206001

Insulator Gasket

$1.99

$

Usually ships in 3-7 days

0

49

Homelite 518596001

Heat Dam

$

$

Not available

50

Homelite 660344003

Screw w/Washer (M5 x 31 mm)

Note: Purchase locally

$1.49

$

Usually ships in 3-7 days

0

51

Homelite 308430001

Starter Assembly
(Superseded to 308430016)

$

$

Not available

52

Homelite 660351001

Screw (M5 x 16 mm)
(Superseded to 6635101)

Note: Purchase locally

$1.99

$

In Stock, only 3 left!

0

53

Homelite 518323012

Engine Shroud Housing

$

$

Not available

54

Homelite 901552001

Carburetor Gasket

$1.99

$

Usually ships in 3-7 days

0

55

Homelite 308054010

Carburetor

$37.99

$

Usually ships in 3-7 days

0

56

Homelite 518498002

Roto-choke base

$

$

Not available

57

Homelite 660453003

Hex Bolt

Note: (Double Side)

$

$

Not available

58

Homelite 660454004

Screw (M5 x 25 mm)

Note: Purchase locally

$

$

Not available

59

Homelite 308342006

Fuel Tank Assembly

$

$

Not available
