RY 09701 - Ryobi Backpack Blower Figure B Parts Diagram

Backpack Blower

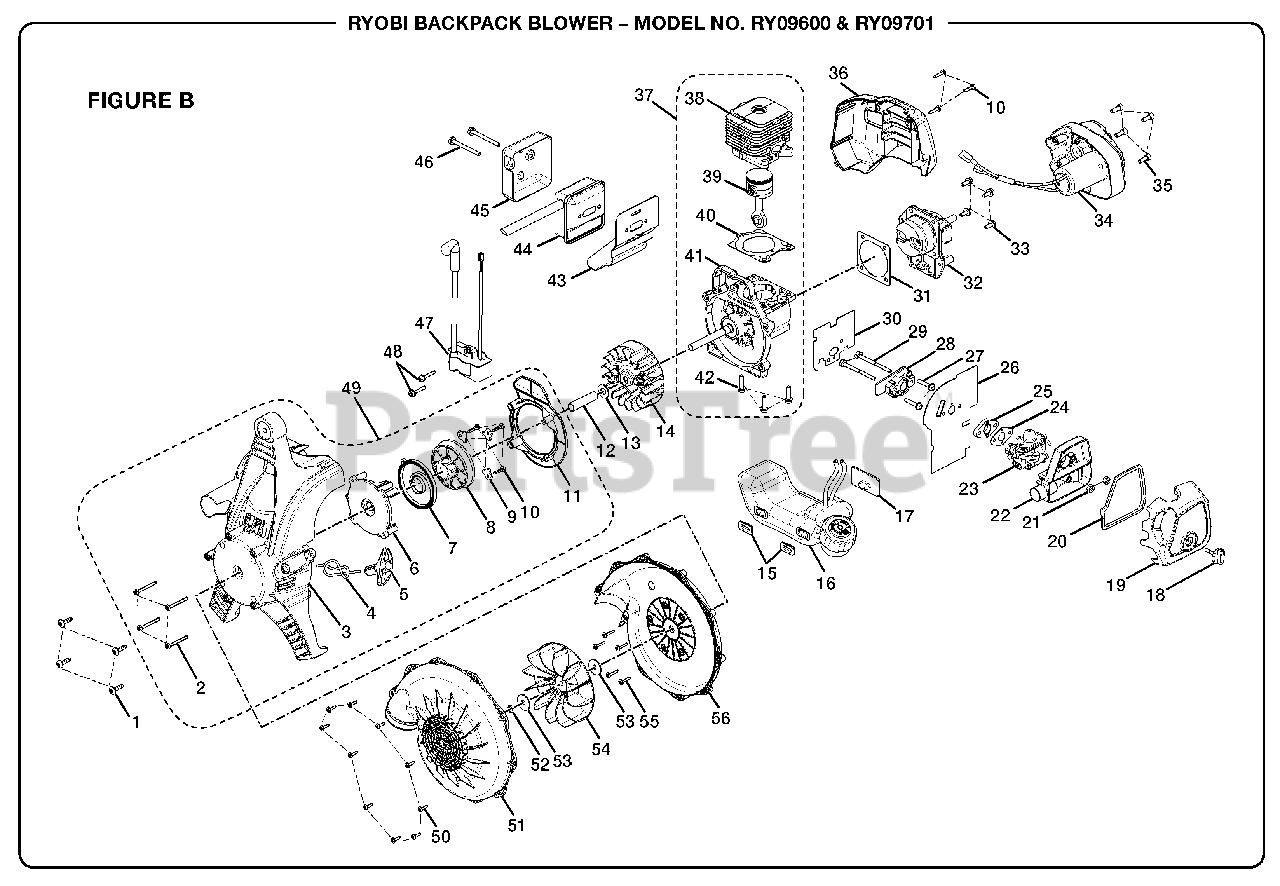

Figure B Parts Diagram

  • Title
1

Homelite 660630002

Screw (10-24 x 3/4 in.)
(Superseded to 82538)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 661508001

Screw (M4 x 38 mm)

$1.99

$

Usually ships in 0 days

0

3

Homelite 308317001

Low Housing Assembly

$

$

Not available

4

Homelite 900849002

Starter Rope

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 518502003

Starter Grip

$1.49

$

In Stock, Qty 5

0

6

Homelite 518134001

Starter Retaining

$

$

Not available

7

Homelite 638033001

Spring and Container

$5.49

$

In Stock, only 4 left!

0

$1.99

$

In Stock, Qty 6

0

9

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

10

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 7

0

11

Homelite 518854001

Baffle Plate

$1.49

$

In Stock, only 3 left!

0

12

$

$

Not available

13

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

14

Homelite 308433008

Rotor Assembly

$19.99

$

Usually ships in 3-7 days

0

15

Homelite 570256001

Bumper
(Superseded to 98792)

$

$

Not available

16

Homelite 308675017

Fuel Tank and Cap Assembly

$

$

Not available

17

$1.49

$

In Stock, only 1 left!

0

18

Homelite 590461001

Carburetor Knob
(Superseded to 5946101)

$1.99

$

In Stock, only 2 left!

0

19

Homelite 518885001

Air Box Cover

$

$

Not available

20

Homelite 518886001

Air Box Gasket

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 678027001

Lock Nut (10-24)
(Superseded to 81208)

$

$

Not available

22

Homelite 518884001

Air Filter Base

$2.99

$

Usually ships in 3-7 days

0

23

Homelite 308054012

Carburetor Assembly
(Superseded to 308054013)

$

$

Not available

24

Homelite 900994004

Carburetor Gasket

$

$

Not available

25

Homelite 590456003

Gasket
(Superseded to 5945603)

$

$

Not available

26

Homelite 900740003

Carburetor Gasket

$1.49

$

In Stock, only 1 left!

0

27

Homelite 660662001

Screw (10-24 x 1 in. Pan Hd.)
(Superseded to 093221)

$

$

Not available

28

$

$

Not available

29

Homelite 660346002

Screw (10 x 2-1/2 in.)

$

$

Not available

30

Homelite 901657001

Heat Dam Gasket

$1.49

$

In Stock, only 2 left!

0

31

Homelite 900954001

Crankcase Gasket

$

$

Not available

32

Homelite 310570001

Crankcase Cover Assembly

$

$

Not available

33

Homelite 660638004

Pan Head Screw (10-24 x 3/4 in.)
(Superseded to 984812001)

$1.49

$

Usually ships in 3-7 days

0

34

Homelite 310568001

Electrical Start Assembly

$

$

Not available

35

Homelite 660527001

Screw (M5 x 14 mm)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 518883001

Rear Housing

$

$

Not available

37

Homelite 309960006

Short Block Assembly

Note: (Inc. Key Nos. 38-42)

$72.99

$

Usually ships in 3-7 days

0

38

Homelite 640069002

Cylinder
(Superseded to 640069003)

$46.99

$

Usually ships in 3-7 days

0

39

Homelite 308023005

Piston w/ Rod Assembly

$

$

Not available

40

Homelite 900953001

Cylinder Gasket

$

$

Not available

41

Homelite 308807003

Crankcase Assembly

$

$

Not available

42

Homelite 660342002

Screw (M5 x 0.8-20 mm)

$1.49

$

Usually ships in 3-7 days

0

43

Homelite 901452009

Muffler Gasket

$1.99

$

Usually ships in 3-7 days

0

44

Homelite 308914003

Muffler Assembly

$29.99

$

Usually ships in 3-7 days

0

45

Homelite 638442006

Heat Shield

$

$

Not available

46

Homelite 660638003

Screw (10-24 x 2-1/8 in.)
(Superseded to PS03999)

$

$

Not available

47

$

$

Not available

48

Homelite 660660001

Screw (M4 x 25 mm)
(Superseded to 82540)

$2.49

$

Usually ships in 3-7 days

0

49

Homelite 308889005

Low Housing w/ Starter Assembly

Note: (Inc. Key Nos. 2-11)

$20.99

$

Usually ships in 3-7 days

0

50

Homelite 660629001

Screw (10-14 x 3/4 in.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

51

Homelite 518575004

Bottom Volute

$12.99

$

Usually ships in 3-7 days

0

$1.49

$

In Stock, only 1 left!

0

53

Homelite 650016001

Flat Washer

$1.99

$

Usually ships in 3-7 days

0

$

$

Not available

55

Homelite 660674002

Screw (10-14 x 27 mm)

$1.99

$

In Stock, only 1 left!

0

56

Homelite 518574003

Top Volute

$22.99

$

In Stock, only 1 left!

0
