RY 09600 - Ryobi Backpack Blower Figure C Parts Diagram

Backpack Blower

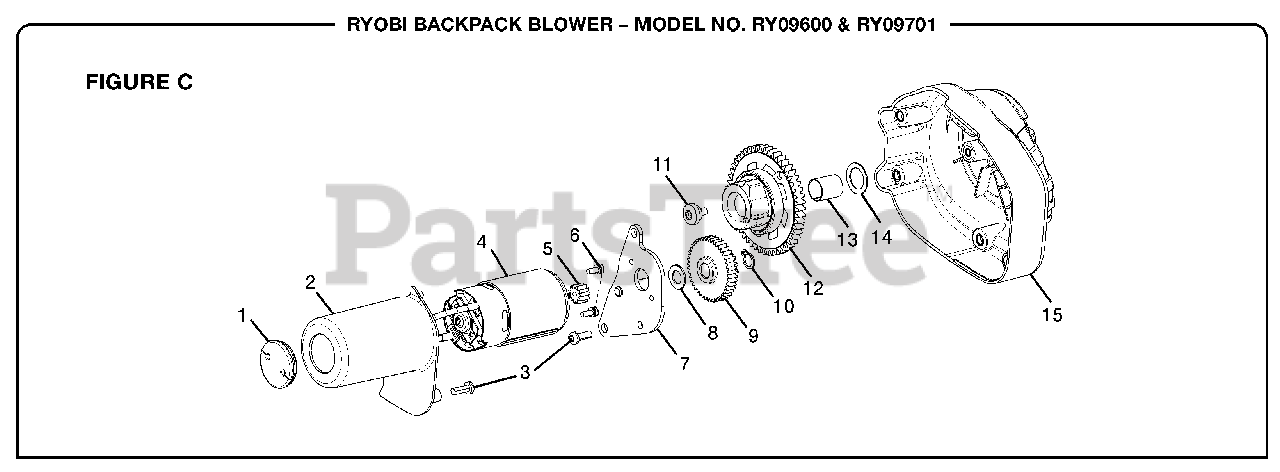

Figure C Parts Diagram

  • Title

$

$

Not available

2

Homelite 518782001

Motor Cover

$

$

Not available

3

Homelite 660526001

Screw (M4 x 11 mm)

$

$

Not available

$70.99

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660520001

Screw (M3 x 8 mm)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 310567001

Bracket and Shaft Assembly

$

$

Not available

8

Homelite 678568001

Thrust Washer

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 678566001

Pulley and Gear

$

$

Not available

10

Homelite 678569001

Retaining Ring

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 660525001

Screw (M4 x 6 mm)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 310693001

Final Start Gear and Pawl Assembly

$

$

Not available

13

$1.49

$

Usually ships in 3-7 days

0

14

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 518780001

Rear Cover

$4.49

$

Usually ships in 3-7 days

0
