RY 09466 A - Ryobi Blower Figure A Parts Diagram

Blower

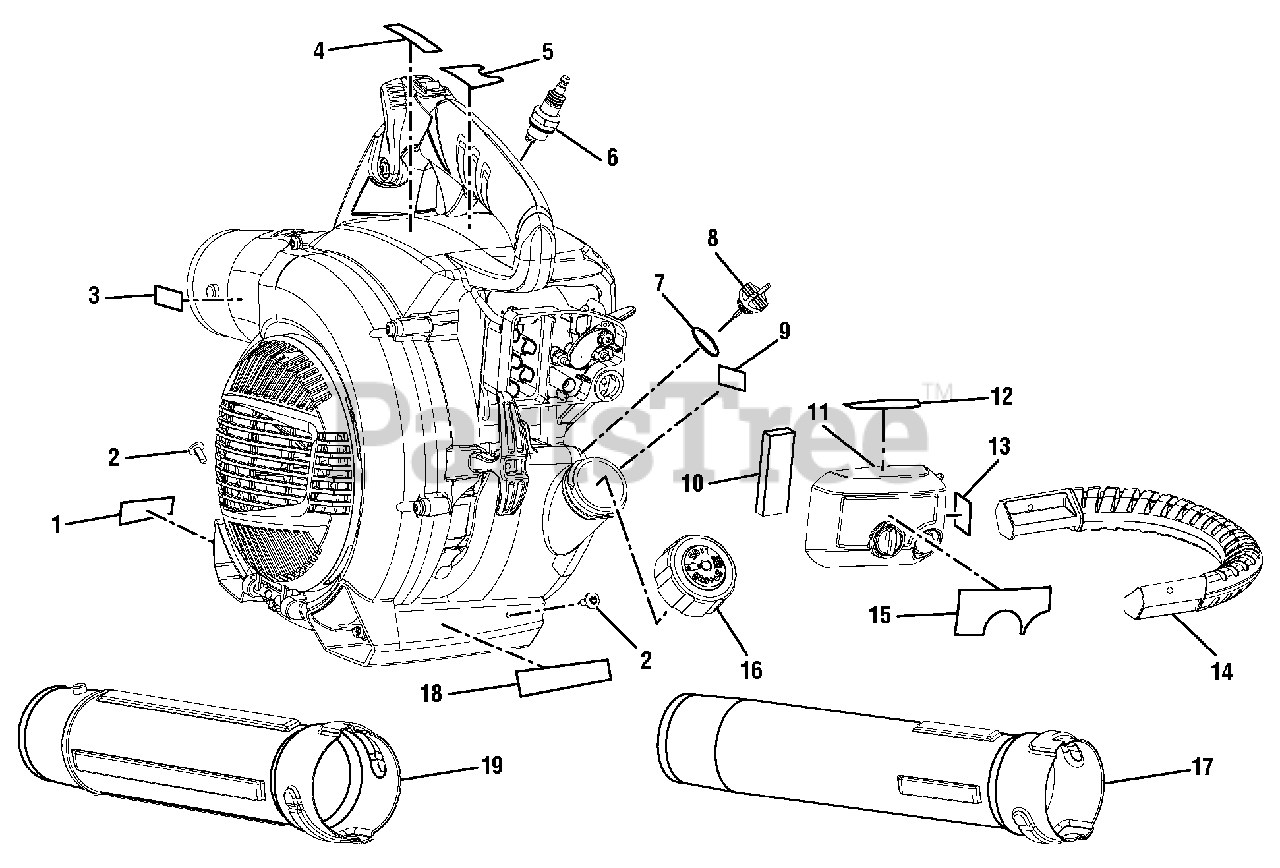

Figure A Parts Diagram

  • Title

1

Homelite 940654088

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 660621001

Screw (#10-14 x 1/2 in., T25 Torx Truss Hd. T.F.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 10

0

3

Homelite 940705075

Logo Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 941727004

Warning Label

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 940752006

Logo Label

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 870301002

Spark Plug (Champion RY4C)

Note: Standard Hardware Item - May Be Purchased Locally

$8.49

$

In Stock, only 1 left!

0

7

Homelite 570400001

O-Ring

$1.99

$

In Stock, only 3 left!

0

8

Homelite 310302001

Oil Fill Cap w/Dipstick

Note: (Inc. Key No. 7)

$3.99

$

Usually ships in 3-7 days

0

9

Homelite 940871001

Add Oil Label

$

$

Not available

10

Homelite 901696001

Filter

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 521306001

Air Filter Cover
(Superseded to 310804002)

$

$

Not available

12

Homelite 940863001

Stop Label

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 940855001

Run/Start Label

$

$

Not available

14

Homelite 521504002

Handle

$3.99

$

In Stock, only 1 left!

0

15

Homelite 940734066

Starting Label

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 310816006

Fuel Cap Assembly

$3.99

$

Usually ships in 3-7 days

0

17

Homelite 580537002

Sweeper Nozzle
(Superseded to 306947001)

$7.99

$

In Stock, only 1 left!

0

18

Homelite 940862001

No Mix Label

$

$

Not available

19

Homelite 570543002

Upper Blower Tube
(Superseded to 306947001)

$7.99

$

In Stock, only 1 left!

0

Homelite 990000205

Operator's Manual

Note: Not Shown

$

$

Not available
