RY 09466 A (090153009) - Ryobi Blower, Rev 01 (2016-09) Figure C Parts Diagram

Blower, Rev 01

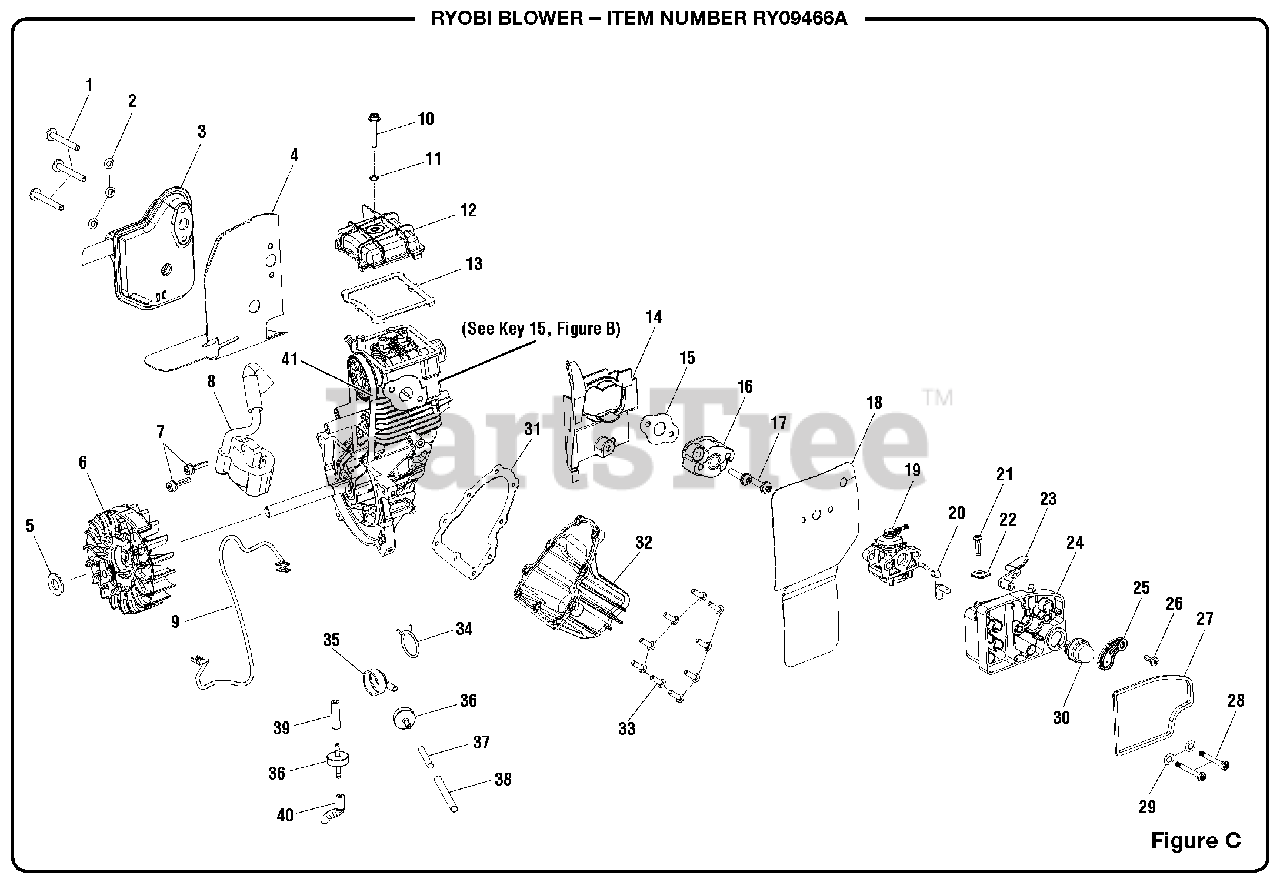

Figure C Parts Diagram

  • Title

1

Homelite 661143001

Screw (M5 x 42 mm, T25 Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 678343001

Lock Washer (M5)
(Superseded to 099069001005)

$2.99

$

Usually ships in 3-7 days

0

3

Homelite 309326003

Muffler

$10.99

$

Usually ships in 3-7 days

0

4

Homelite 901695001

Muffler Gasket

$

$

Not available

5

Homelite 650017002

Washer (ID9.70 x OD20 x 1.59t)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 309011002

Flywheel Assembly

$19.99

$

Usually ships in 3-7 days

0

7

Homelite 660968001

Screw (M4 x 19 mm, T20 Torx Pan Hd.)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 309263002

Ignition Module

$29.99

$

In Stock, only 2 left!

0

9

Homelite 308863021

Lead Assembly

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 660780002

Screw (M4 x 27 mm, T20 Torx Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 570400002

O-Ring

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 640306001

Cam Cover

$6.49

$

Usually ships in 3-7 days

0

13

Homelite 901705003

Gasket

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 525032001

Air Baffle

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 901657003

Heat Dam Gasket

$1.99

$

In Stock, Qty 5

0

16

Homelite 525033001

Heat Dam

$

$

Not available

17

Homelite 660629003

Screw (M5 x 23 mm, T25 Torx pan Hd.)

$1.99

$

In Stock, Qty 5

0

18

Homelite 900809011

Gasket

$4.99

$

Usually ships in 3-7 days

0

19

Homelite 309375001

Carburetor

$

$

Not available

20

Homelite 570373007

Fuel Hose (90 mm)

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 660734001

Screw (M4 x 16 mm, T20 Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

22

Homelite 638133007

Clip

$2.49

$

Usually ships in 3-7 days

0

23

Homelite 590458004

Choke Lever

$1.49

$

In Stock, only 3 left!

0

24

Homelite 308398007

Air Box Base

$2.99

$

Usually ships in 3-7 days

0

25

Homelite 521561002

Choke Plate

$1.49

$

Usually ships in 3-7 days

0

26

Homelite 660345001

Screw (M4 x 12 mm, T20 Torx Pan Hd.)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

27

Homelite 570439001

Air Box Seal

$

$

Not available

28

Homelite 660454006

Bolt (M5 x 48 mm, T20 Torx hd.)

$2.49

$

Usually ships in 3-7 days

0

29

Homelite 638764001

Washer (ID5 x OD9.90 x 1t)

$2.49

$

Usually ships in 3-7 days

0

30

Homelite 300780002

Primer
(Superseded to 01183)

$

$

Not available

31

Homelite 570709003

Gasket

$1.49

$

In Stock, only 1 left!

0

32

Homelite 640103001

Oil Pan

$

$

Not available

33

Homelite 660925003

Screw (M4 x 12 mm, T20 Torx Hd.)

$1.99

$

Usually ships in 3-7 days

0

34

Homelite 678850001

Clamp

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 570401004

Breather Fitting

$2.49

$

Usually ships in 3-7 days

0

36

Homelite 308826002

Check Valve

$4.49

$

In Stock, only 2 left!

0

37

Homelite 570259062

Fuel Hose (53 mm)

$1.49

$

In Stock, only 1 left!

0

38

Homelite 901666003

Shield Sleeve (50 mm)

$3.49

$

In Stock, only 1 left!

0

39

Homelite 570710003

Breather Hose (34 mm)

$3.99

$

In Stock, only 2 left!

0

40

Homelite 570710002

Breather Hose (25 mm)

$3.49

$

In Stock, only 4 left!

0

41

Homelite 901656002

Timing Belt

$

$

Not available

Homelite 120900187

High Altitude Kit (Not Included)

Note: Not Shown

$

$

Not available
