RY 09466 A (090153009) - Ryobi Blower, Rev 01 (2016-09) Figure B Parts Diagram

Blower, Rev 01

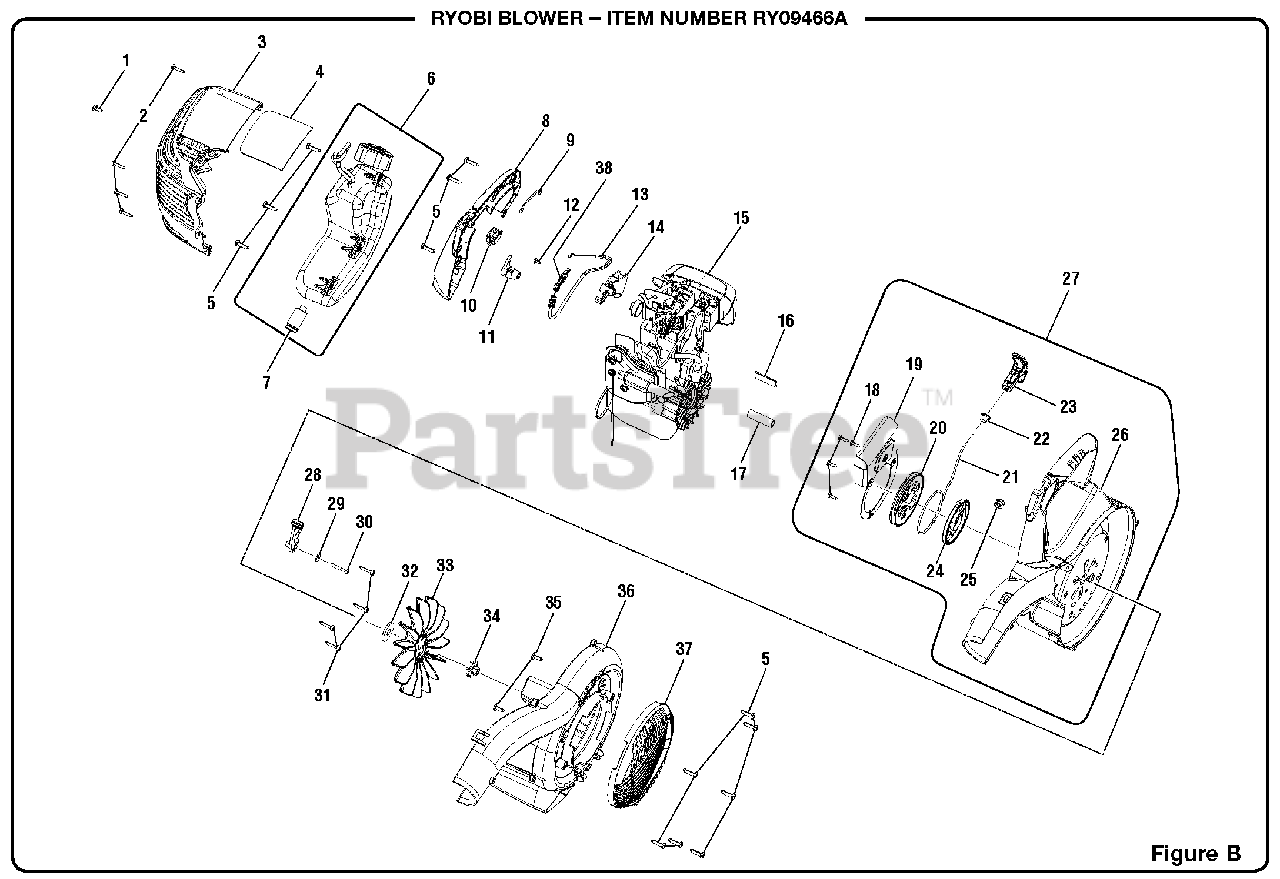

Figure B Parts Diagram

  • Title

1

Homelite 660510007

Screw (M5 x 10.5 mm, T20 Torx Hd. )

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 660466001

Screw (M4 x 18 mm, T20 Torx Soc. Hd.)

$1.99

$

In Stock, Qty 6

0

3

Homelite 521307001

Engine Housing

$11.99

$

Usually ships in 3-7 days

0

4

Homelite 901421002

Heat Shield

$

$

Not available

5

Homelite 660629002

Screw (#10-14 x 3/4 in, T25 Torx Pan Hd. T.F.)

$1.99

$

In Stock, only 4 left!

0

6

Homelite 310752029

Fuel Tank Assembly w/Cap

Note: (Inc. Key No. 7)

$

$

Not available

7

Homelite 310976001

Fuel Filter

$

$

Not available

8

Homelite 521544001

Handle Cover

$

$

Not available

9

Homelite 290469001

Ground Wire

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 760961002

Switch

$3.99

$

Usually ships in 3-7 days

0

11

Homelite 518602001

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 661141001

Screw (M3.5 x 7.5 mm, T20 Torx Pan Hd.)

$

$

Not available

13

Homelite 270031005

Throttle Cable

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 521503002

Trigger

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 309840002

Power Head Assembly

$

$

Not available

16

Homelite 521535003

Shield

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 638091008

Spacer

$1.99

$

Usually ships in 3-7 days

0

18

Homelite 660466002

Screw (M4 x 12 mm, T20 Torx Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite 638770001

Baffle

$6.49

$

Usually ships in 3-7 days

0

20

Homelite 521316002

Starter Pulley

$

$

Not available

21

Homelite 900849012

Starter Rope

$1.99

$

In Stock, only 2 left!

0

22

Homelite 638088002

Eyelet

$1.99

$

In Stock, only 4 left!

0

23

Homelite 525485001

Starter Grip

$1.99

$

In Stock, only 4 left!

0

24

Homelite 638033002

Container Spring Assembly

$

$

Not available

25

Homelite 638088004

Eyelet

$1.99

$

In Stock, only 3 left!

0

26

Homelite 519501004

Inner Volute

$

$

Not available

27

Homelite 308563021

Lower Housing w/Starter

$35.99

$

Usually ships in 3-7 days

0

28

Homelite 518160007

Cruise Lever

$1.99

$

In Stock, only 3 left!

0

29

Homelite 678125001

Washer (ID4.3 x OD12 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 660666001

Cruise Lever Screw (M8-14 x 25 mm, Special T20 Truss Hd.)

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 660970013

Screw (M4 x 23 mm, T20 Truss Hd. T.F.)

$2.49

$

Usually ships in 3-7 days

0

32

Homelite 650016001

Washer (ID9.8 x OD34.27 x 2.28t)

$1.99

$

Usually ships in 3-7 days

0

33

Homelite 518265003

Fan

$11.99

$

Usually ships in 3-7 days

0

34

Homelite 660730001

Blower Fan Nut (3/8-24)

$1.49

$

In Stock, only 1 left!

0

35

Homelite 660621001

Screw (#10-14 x 1/2 in., T25 Torx Truss Hd.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

36

Homelite 521313015

Outer Volute

$

$

Not available

37

Homelite 521500009

Air Inlet Cover

$

$

Not available

38

Homelite 521557001

Throttle Lever

$1.49

$

Usually ships in 3-7 days

0
