RY 09460 - Ryobi Blower Figure B Parts Diagram

Blower

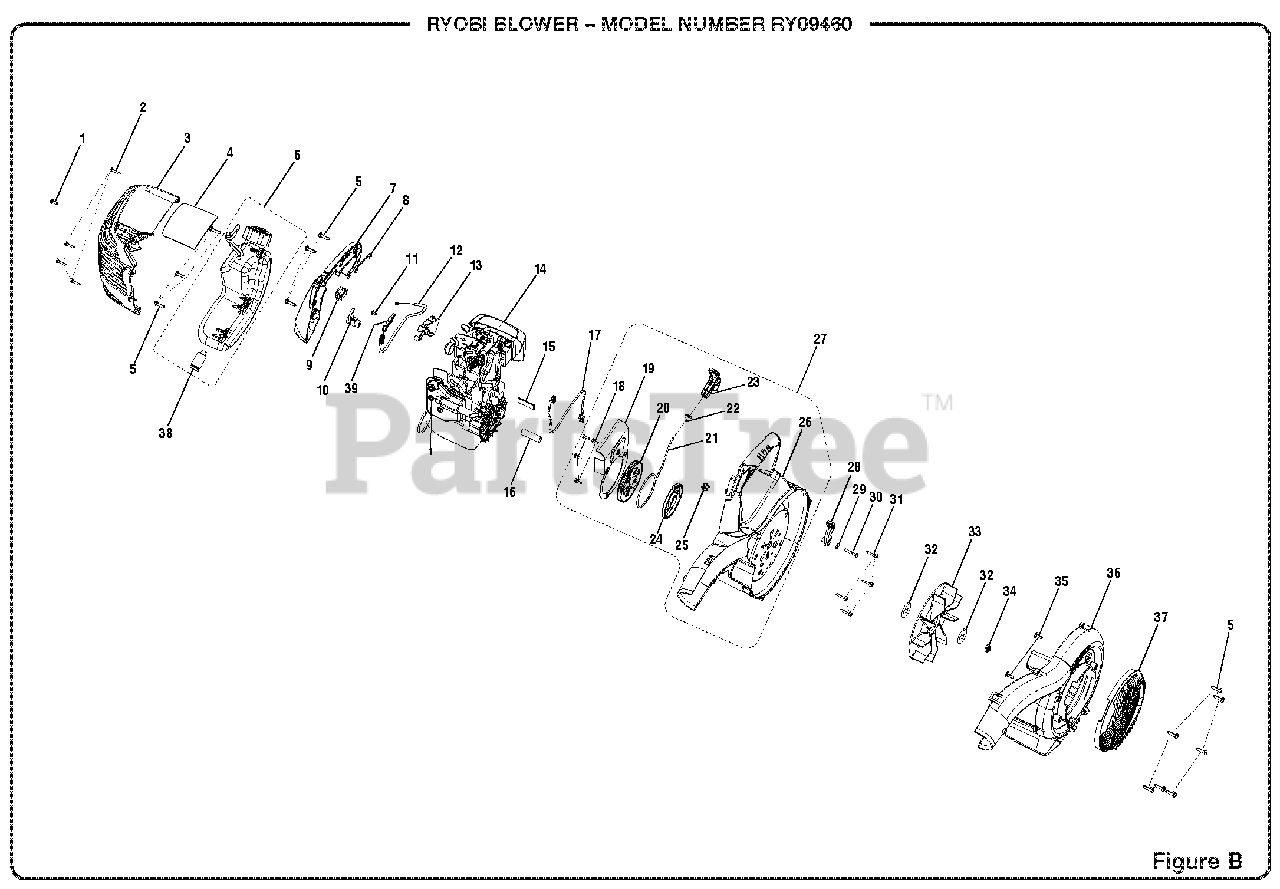

Figure B Parts Diagram

  • Title
1

Homelite 660510007

Screw (M5 x 10 mm)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 6

0

3

Homelite 521307001

Engine Housing

$11.99

$

Usually ships in 3-7 days

0

4

Homelite 901421002

Heat Shield

$

$

Not available

5

Homelite 660629002

Screw (10-14 x 3/4 in, T.F.)

$1.99

$

In Stock, only 4 left!

0

6

Homelite 308675020

Fuel Tank Assembly w/Cap
(Superseded to 308675057)

$

$

Not available

7

Homelite 521544001

Handle Cover

$

$

Not available

8

Homelite 290469001

Ground Wire

$1.99

$

Usually ships in 3-7 days

0

$1.49

$

In Stock, only 4 left!

0

10

Homelite 518602001

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 661141001

Screw (M3.5 x 7.5 mm)

$

$

Not available

12

Homelite 270031003

Throttle Cable

$2.99

$

Usually ships in 3-7 days

0

13

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 309840001

Power Head Assembly

$

$

Not available

15

$2.49

$

Usually ships in 3-7 days

0

16

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 308863021

Electric Wire Assembly

$6.49

$

Usually ships in 3-7 days

0

18

Homelite 660466002

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

19

$6.49

$

Usually ships in 3-7 days

0

20

Homelite 521316002

Starter Pulley

$

$

Not available

21

Homelite 900849012

Starter Rope

$1.99

$

In Stock, only 2 left!

0

22

$1.99

$

In Stock, only 4 left!

0

23

Homelite 511731004

Starter Grip

$1.49

$

In Stock, Qty 6

0

24

Homelite 638033002

Container Spring Assembly

$

$

Not available

25

$1.99

$

In Stock, only 3 left!

0

26

Homelite 519501001

Inner Volute

$

$

Not available

27

Homelite 308563002

Lower Housing w/Starter

$

$

Not available

28

Homelite 518160005

Cruise Lever

$

$

Not available

29

$1.99

$

Usually ships in 3-7 days

0

30

Homelite 660666001

Cruise Lever Screw

$1.99

$

Usually ships in 3-7 days

0

31

Homelite 660970013

Screw (M4 x 23 mm)

$2.49

$

Usually ships in 3-7 days

0

32

$1.99

$

In Stock, only 4 left!

0

33

Homelite 518265002

Fan
(Superseded to 518265003)

$11.99

$

Usually ships in 3-7 days

0

34

Homelite 660730001

Lock Nut (3/8 in.)

$1.49

$

In Stock, only 1 left!

0

35

Homelite 660621001

Screw (10-14 x 1/2 in.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

36

Homelite 521313002

Outer Volute

$

$

Not available

37

Homelite 521500004

Air Inlet Cover

$6.49

$

Usually ships in 3-7 days

0

38

Homelite 300759005

Fuel Filter

$9.99

$

In Stock, only 1 left!

0

39

Homelite 521557001

Throttle Lever

$1.49

$

Usually ships in 3-7 days

0
