RY 09440 - Ryobi Blower Figure C Parts Diagram

Blower

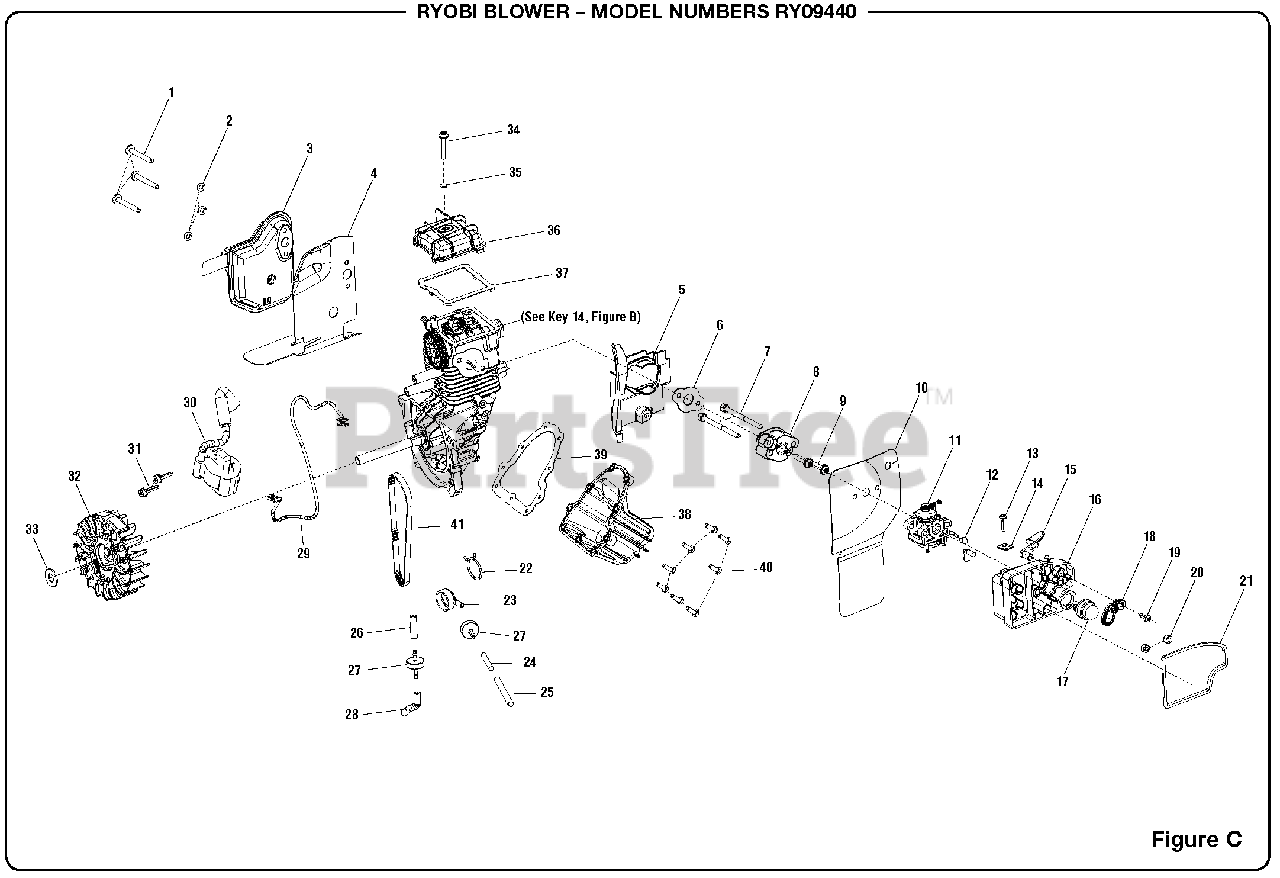

Figure C Parts Diagram

  • Title
1

Homelite 661143001

Screw (M5 x 42 mm)

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 678343001

Lock Washer (M5)
(Superseded to 099069001005)

$2.99

$

Usually ships in 3-7 days

0

3

$

$

Not available

4

Homelite 901695001

Muffler Gasket

$

$

Not available

5

Homelite 518692006

Air Baffle

$3.49

$

Usually ships in 3-7 days

0

$

$

Not available

$1.49

$

Usually ships in 3-7 days

0

8

$

$

Not available

9

Homelite 660629003

Screw (M5 x 23 mm)

$1.99

$

In Stock, Qty 5

0

10

$2.99

$

Usually ships in 3-7 days

0

11

Homelite 309370001

Carburetor

$39.99

$

Usually ships in 3-7 days

0

12

Homelite 570259061

Tubing (90 mm)

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 660734001

Screw (M4 x 16 mm)

$1.99

$

In Stock, only 3 left!

0

$2.49

$

Usually ships in 3-7 days

0

15

Homelite 590458004

Choke Lever

$1.49

$

In Stock, only 3 left!

0

16

Homelite 308398003

Air Box Base

$

$

Not available

17

$8.49

$

In Stock, only 1 left!

0

18

Homelite 521561001

Choke Plate

$3.49

$

Usually ships in 3-7 days

0

19

Homelite 660345001

Screw (M4 x 12 mm)
(Superseded to 983645005)

$1.99

$

In Stock, only 4 left!

0

20

Homelite 678180002

Lock Nut (M5)

$

$

Not available

21

Homelite 570439001

Air Box Seal

$

$

Not available

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 570401002

Breather Fitting

$3.49

$

Usually ships in 3-7 days

0

24

Homelite 570259062

Tubing (70 mm)

$1.49

$

In Stock, only 1 left!

0

25

Homelite 901666003

Shield Sleeve

$3.49

$

In Stock, only 1 left!

0

26

Homelite 570710003

Tubing (42 mm)

$3.99

$

In Stock, only 2 left!

0

27

Homelite 308826002

Check Valve

$4.49

$

In Stock, only 2 left!

0

28

Homelite 570710002

Tubing (25 mm)

$3.49

$

In Stock, only 4 left!

0

29

Homelite 308863021

Lead Assembly

$6.49

$

Usually ships in 3-7 days

0

30

Homelite 309263002

Ignition Module

$29.99

$

In Stock, only 2 left!

0

31

Homelite 660968001

Screw (M4 x 19 mm)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 309011002

Flywheel Assembly

$19.99

$

Usually ships in 3-7 days

0

33

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

34

Homelite 660780002

Screw (M4 x 27 mm)

$1.99

$

Usually ships in 3-7 days

0

35

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 640306001

Cam Cover

$6.49

$

Usually ships in 3-7 days

0

37

$2.99

$

Usually ships in 3-7 days

0

38

$

$

Not available

39

$1.49

$

In Stock, only 1 left!

0

40

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

$

$

Not available
