RY 09056 (090155034) - Ryobi Blower Vacuum, Rev 02 (2016-05) Figure A Parts Diagram

Blower Vacuum, Rev 02

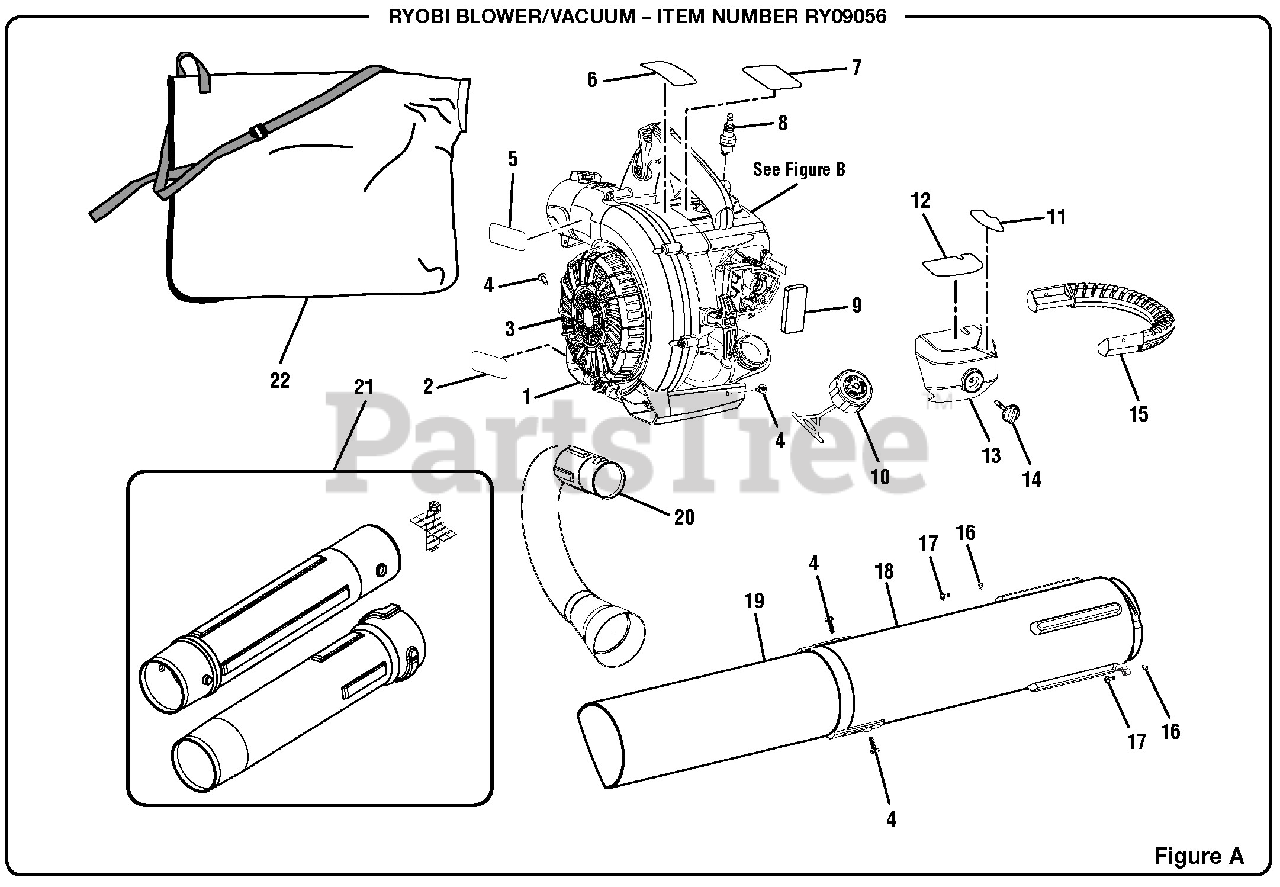

Figure A Parts Diagram

  • Title

1

Homelite 678726001

Vacuum Door Spring

$1.99

$

Usually ships in 3-7 days

0

2

Homelite 940654088

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

3

Homelite 521500008

Vacuum Door

$7.49

$

Usually ships in 3-7 days

0

4

Homelite 660621001

Vacuum Tube Screw (10-14 x 1/2 in.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 10

0

5

Homelite 940705075

Logo Label (Large)

$1.99

$

Usually ships in 3-7 days

0

6

Homelite 941727004

Warning Label

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 940752006

Logo Label (Small)

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 870174001

Spark Plug (RCJ6Y)

Note: STANDARD HARDWARE ITEM - MAY BE PURCHASED LOCALLY

$4.99

$

In Stock, Qty 20+

0

9

Homelite 901696001

Filter

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 310816015

Fuel Cap Assembly

$13.99

$

Usually ships in 3-7 days

0

11

Homelite 940868001

Choke Label

$1.99

$

Usually ships in 3-7 days

0

12

Homelite 940734083

Starting Label

$1.49

$

Usually ships in 3-7 days

0

13

Homelite 310804001

Air Filter Cover

Note: (Inc. Key 14)

$

$

Not available

14

Homelite 590461001

Knob
(Superseded to 5946101)

$1.99

$

In Stock, only 2 left!

0

15

Homelite 521504001

Vacuum Handle

$

$

Not available

16

Homelite 650027001

E-Ring

$1.99

$

In Stock, only 4 left!

0

17

Homelite 660880001

Screw (1/4-20 x 3/4 in.)

$1.99

$

In Stock, only 2 left!

0

18

Homelite 580892001

Upper Vacuum Tube

$

$

Not available

19

Homelite 570562001

Lower Vacuum Tube

$6.99

$

In Stock, only 1 left!

0

20

Homelite 580956002

Vacuum Bag Adaptor

$

$

Not available

21

Homelite 360152002

Blower Tube Assembly

$7.49

$

Usually ships in 3-7 days

0

22

Homelite 900960001

Vacuum Bag w/Shoulder Strap

$23.99

$

In Stock, only 2 left!

0

Homelite 991000155

Operator's Manual (960606012)

Note: Not Shown

$

$

Not available
