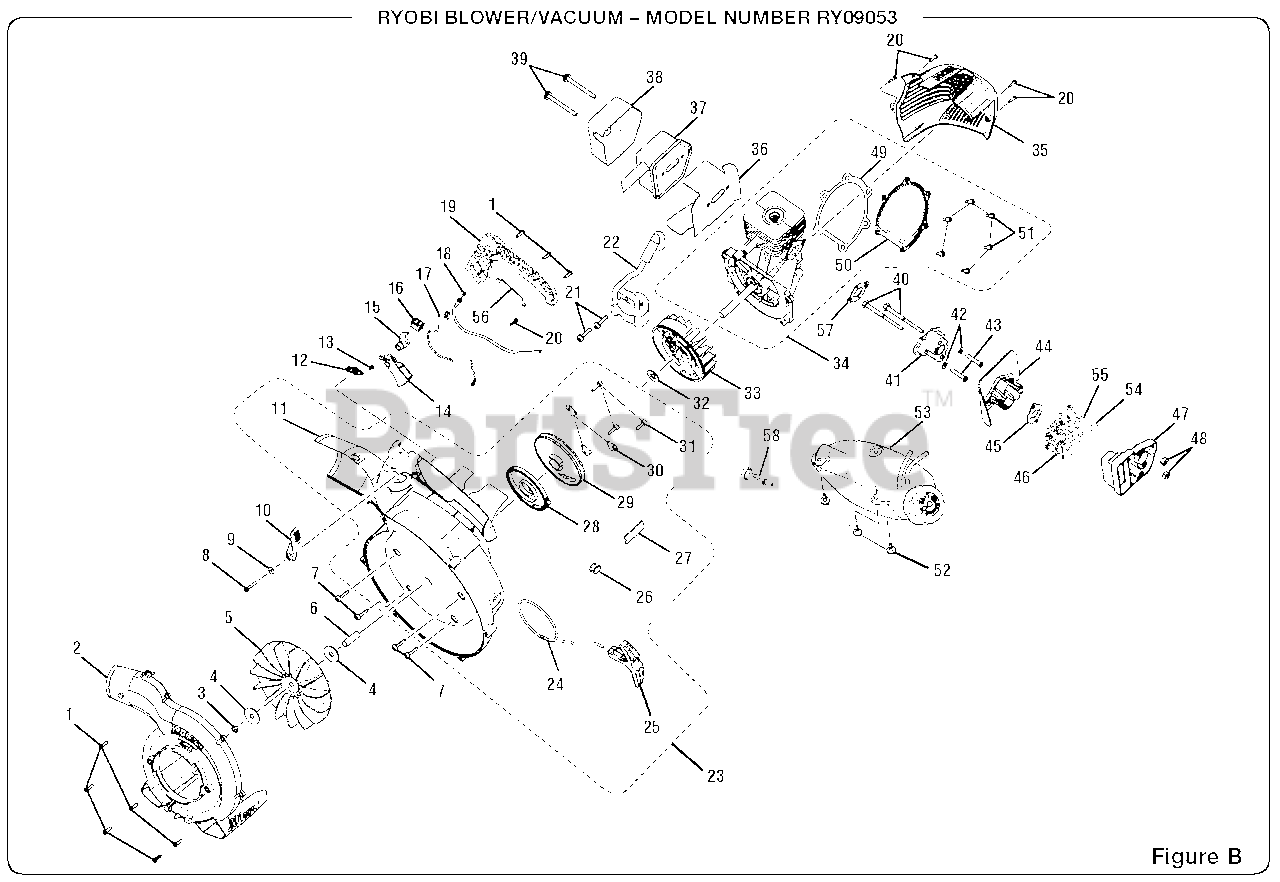

RY 09053 - Ryobi Blower Vacuum Figure B Parts Diagram

Blower Vacuum

Figure B Parts Diagram

  • Title
1

Homelite 660629002

Screw (10-14 x 3/4 in.)

$1.99

$

In Stock, only 4 left!

0

2

Homelite 521313006

Outer Volute
(Superseded to 521313014)

$

$

Not available

3

Homelite 660730001

Lock Nut (3/8 in.)

$1.49

$

In Stock, only 1 left!

0

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 518265002

Fan
(Superseded to 518265003)

$11.99

$

Usually ships in 3-7 days

0

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 660970001

Screw (M4 x 17 mm, T.F.)

$1.99

$

In Stock, only 1 left!

0

8

Homelite 660666001

Screw (8-14 x 1 in., T.F.)

$1.99

$

Usually ships in 3-7 days

0

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 518160001

Cruise Lever

$

$

Not available

11

Homelite 308981013

Lower Housing

$

$

Not available

12

Homelite 518603001

Throttle Lever

$

$

Not available

13

Homelite 661141001

Screw (M3.5 x 7.5 mm)

$

$

Not available

14

Homelite 521503001

Throttle Trigger

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 518602001

Trigger Lock

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 760338004

Momentary Contact Switch

$1.49

$

In Stock, only 4 left!

0

17

Homelite 290157002

Wire Assembly

$2.99

$

In Stock, only 1 left!

0

18

Homelite 270031002

Throttle Cable

$

$

Not available

19

Homelite 521501001

Handle Cover

$2.99

$

Usually ships in 3-7 days

0

20

Homelite 660466001

Screw (M4 x 18 mm)

$1.99

$

In Stock, Qty 6

0

21

Homelite 660968001

Screw (M4 x 19 mm, T.F.)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 850108006

Ignition Module

$

$

Not available

23

Homelite 308563001

Lower Housing w/Starter
(Superseded to 308563022)

$

$

Not available

24

Homelite 900849012

Starter Rope (42 in.)

$1.99

$

In Stock, only 1 left!

0

25

Homelite 511731001

Starter Grip
(Superseded to PS06114)

$

$

Not available

26

$1.99

$

In Stock, only 3 left!

0

27

$

$

Not available

28

Homelite 638033001

Spring & Container

$5.49

$

In Stock, only 1 left!

0

29

Homelite 521316001

Starter Pulley

$4.99

$

Usually ships in 3-7 days

0

30

Homelite 638389001

Pulley Retainer

$1.99

$

In Stock, only 2 left!

0

31

Homelite 660967001

Screw (M4 x 14 mm, T.F.)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite 650017001

Washer
(Superseded to PS05268)

$1.99

$

In Stock, only 2 left!

0

33

Homelite 308811004

Flywheel Assembly

$

$

Not available

34

Homelite 309963001

Short Block Assembly

$61.99

$

Usually ships in 3-7 days

0

35

Homelite 308461001

Engine Cover

$

$

Not available

36

Homelite 901362002

Muffler Gasket

$1.99

$

Usually ships in 3-7 days

0

37

Homelite 309327001

Muffler Assembly
(Superseded to 309327009)

$61.99

$

Usually ships in 3-7 days

0

38

Homelite 638442009

Muffler Heat Shield

$5.49

$

In Stock, only 2 left!

0

39

Homelite 660638003

Screw (10-24 x 2-1/8 in.)
(Superseded to PS03999)

$

$

Not available

40

Homelite 660927004

Screw (10-24 x 2.5 in.)

$1.49

$

In Stock, only 1 left!

0

41

$4.99

$

In Stock, only 2 left!

0

42

$1.99

$

In Stock, only 2 left!

0

43

Homelite 660927003

Screw (M5 x 25 mm)

$1.99

$

In Stock, Qty 10

0

44

$1.49

$

In Stock, only 1 left!

0

45

Homelite 901552002

Heat Dam Gasket

$

$

Not available

46

Homelite 308054034

Carburetor

$

$

Not available

47

Homelite 521309001

Air Box Base

$

$

Not available

48

Homelite 678027001

Hex Nut (10-24)
(Superseded to 81208)

$

$

Not available

49

Homelite 901550001

Crankcase Cover Gasket
(Superseded to 901550003)

$1.99

$

In Stock, only 2 left!

0

50

Homelite 638337001

Crankcase Cover
(Superseded to 638337005)

$6.49

$

Usually ships in 3-7 days

0

51

Homelite 660925003

Screw (M4 x 12 mm)

$1.99

$

Usually ships in 3-7 days

0

52

Homelite 660970002

Screw (M4 x 14 mm, Shoulder)

$1.99

$

In Stock, only 1 left!

0

53

Homelite 310752001

Fuel Tank Assembly w/Cap
(Superseded to 310752028)

$32.99

$

Usually ships in 3-7 days

0

54

Homelite 518824001

Choke Lever

$

$

Not available

55

Homelite 561635001

Primer Bulb

$8.49

$

In Stock, only 2 left!

0

56

Homelite 290469001

Ground Wire Kit

$1.99

$

Usually ships in 3-7 days

0

57

Homelite 901551001

Intake Gasket

$1.99

$

Usually ships in 3-7 days

0

58

Homelite 300759005

Fuel Filter

$9.99

$

In Stock, only 1 left!

0
