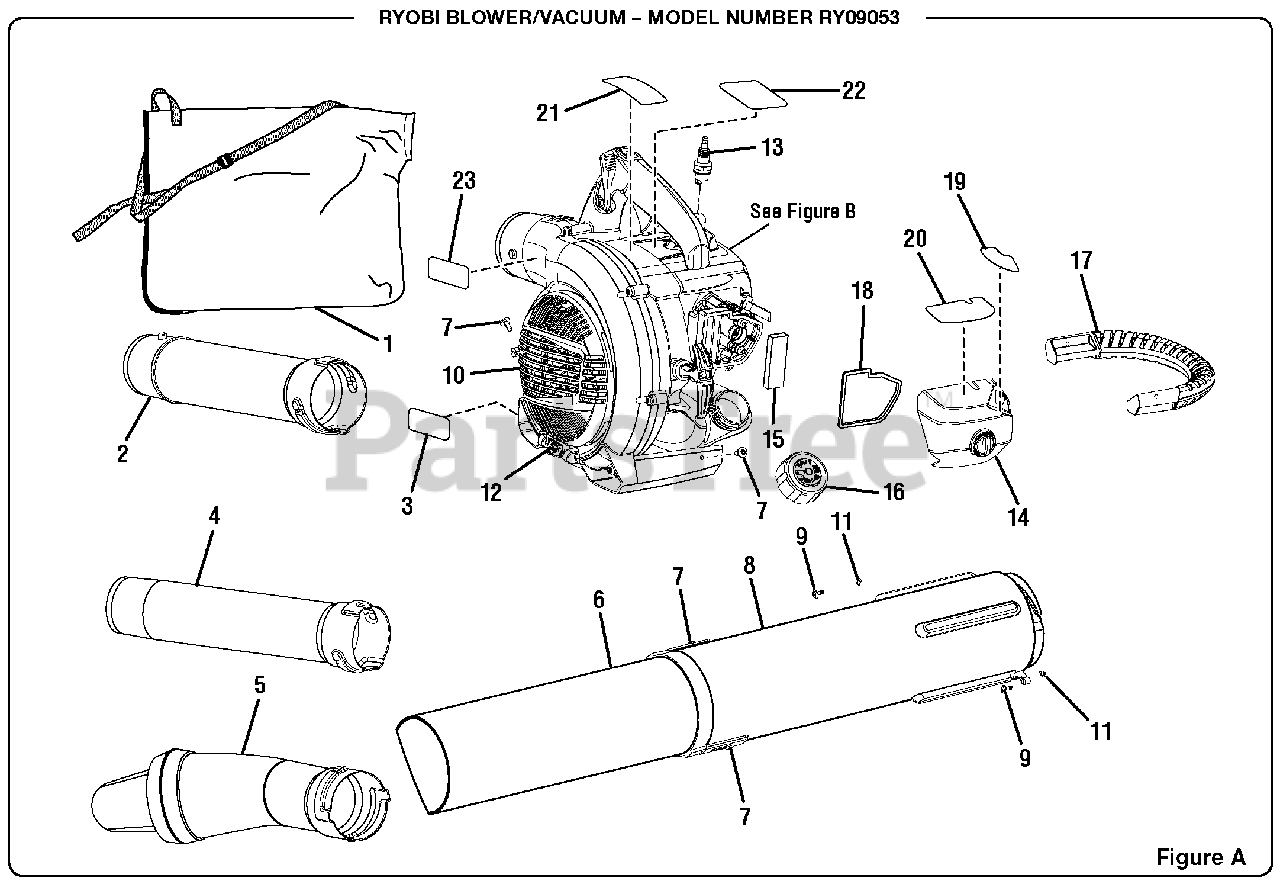

RY 09053 - Ryobi Blower Vacuum Figure A Parts Diagram

Blower Vacuum

Figure A Parts Diagram

  • Title

1

Homelite 900960001

Vacuum Bag w/Shoulder Strap

$23.99

$

In Stock, only 1 left!

0

2

Homelite 570543001

Upper Blower Tube
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

3

Homelite 940654088

Combustion Label

$1.99

$

Usually ships in 3-7 days

0

4

Homelite 580537001

Sweeper Nozzle
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

5

Homelite 580896001

Vacuum Bag Adaptor
(Superseded to 580896002)

$30.99

$

Usually ships in 3-7 days

0

6

Homelite 570562001

Lower Vacuum Tube

$6.99

$

In Stock, only 1 left!

0

7

Homelite 660621001

Vacuum Tube Screw (10-14 x 1/2 in.)
(Superseded to 82632)

$1.99

$

In Stock, Qty 9

0

8

Homelite 580892001

Upper Vacuum Tube

$

$

Not available

9

Homelite 660880001

Screw (1/4-20 x 3/4 in.)

$1.99

$

In Stock, only 2 left!

0

10

Homelite 521500001

Vacuum Door

$

$

Not available

11

Homelite 650027001

E-Ring

$1.99

$

In Stock, only 4 left!

0

12

Homelite 678726001

Vacuum Door Spring

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 870174001

Spark Plug (RCJ6Y)

Note: Purchase Locally

$4.99

$

In Stock, Qty 20+

0

14

Homelite 310804001

Air Filter Cover

$

$

Not available

15

Homelite 560873003

Filter

$

$

Not available

16

Homelite 310816001

Fuel Cap Assembly

$

$

Not available

17

Homelite 521504001

Vacuum Handle

$

$

Not available

18

Homelite 570107001

Air Box Gasket

$1.49

$

In Stock, only 2 left!

0

19

Homelite 940868001

Choke Label

$1.99

$

Usually ships in 3-7 days

0

20

Homelite 940734083

Starting Label

$1.49

$

Usually ships in 3-7 days

0

21

Homelite 940657039

Warning Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 940752006

Logo Label (Small)

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 940705075

Logo Label (Large)

$1.99

$

Usually ships in 3-7 days

0

Homelite 988000293

Operator's Manual

Note: (Not Shown)

$

$

Not available
