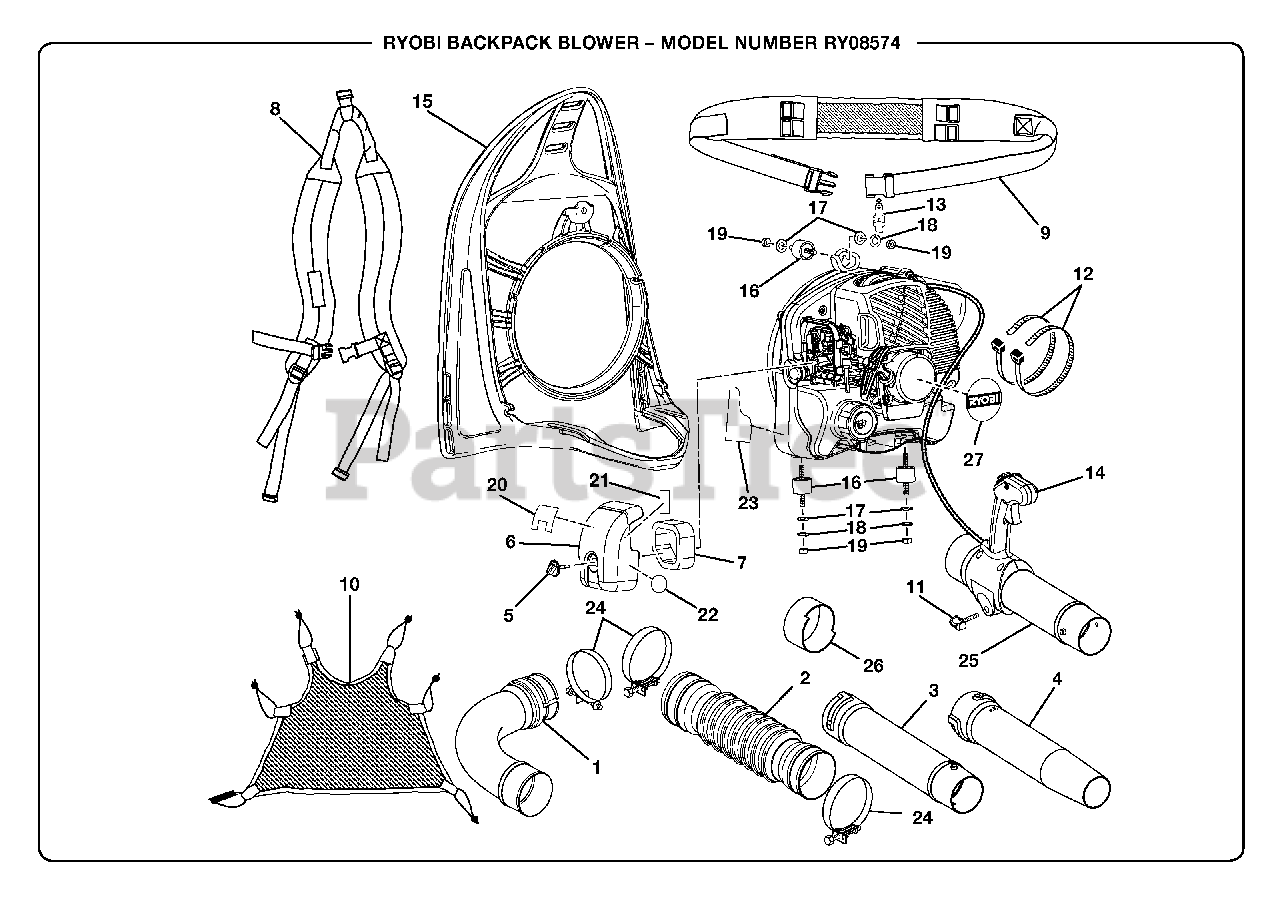

RY 08574 - Ryobi Backpack Blower Frame Assembly / Tube Assembly Parts Diagram

Backpack Blower

Frame Assembly / Tube Assembly Parts Diagram

  • Title
1

Homelite 580694001

Elbow Tube

$4.99

$

Usually ships in 3-7 days

0

2

$

$

Not available

3

Homelite 570543001

Straight Tube (Upper Tube)
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

4

Homelite 570564001

Nozzle (Lower Tube)

$

$

Not available

5

Homelite 590461001

Air Filter Knob
(Superseded to 5946101)

$1.99

$

In Stock, only 2 left!

0

6

Homelite 518253001

Air Filter Cover

$

$

Not available

7

Homelite 560873001

Air Filter
(Superseded to 5687301)

$

$

Not available

8

Homelite 900962001

Shoulder Harness Assembly

$

$

Not available

9

Homelite 900963001

Waist Harness

$6.49

$

Usually ships in 3-7 days

0

10

Homelite 900964001

Mesh Backing

$6.99

$

Usually ships in 3-7 days

0

11

Homelite 518273002

Blower Knob (1.35 in [34.3 mm])

$2.49

$

Usually ships in 3-7 days

0

12

Homelite 900972001

Cable Tie

$

$

Not available

13

Homelite 870174001

Spark Plug (Champion RCJ6Y)

Note: May Be Purchased Locally

$4.99

$

In Stock, Qty 20+

0

14

Homelite 308345001

Control Assembly

$

$

Not available

15

Homelite 570547001

Backpack Frame

$

$

Not available

16

Homelite 570546001

Vibration Isolators

$

$

Not available

17

Homelite 678186002

Flat Washer

$

$

Not available

18

Homelite 678109001

Spring Washer
(Superseded to 83061)

$

$

Not available

19

Homelite 678190002

Hex Nut (1/4 - 20)

Note: May Be Purchased Locally

$1.99

$

In Stock, only 1 left!

0

20

Homelite 940627004

Starting Instructions Label

$1.49

$

In Stock, only 2 left!

0

21

Homelite 940627007

Starting Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 940627006

Zip Start Label

$

$

Not available

23

Homelite 940627005

Warning Label

$

$

Not available

24

Homelite 308645001

Tube Clamp

$1.99

$

Usually ships in 3-7 days

0

25

Homelite 580692001

Tube-Handle

$4.49

$

Usually ships in 3-7 days

0

26

$1.49

$

In Stock, only 1 left!

0

27

Homelite 950119007

Label, Starter Pack

$2.49

$

Usually ships in 3-7 days

0

Homelite 983000907

Operator's Manual (960968006)

$

$

Not available
