RY 08510 - Ryobi Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

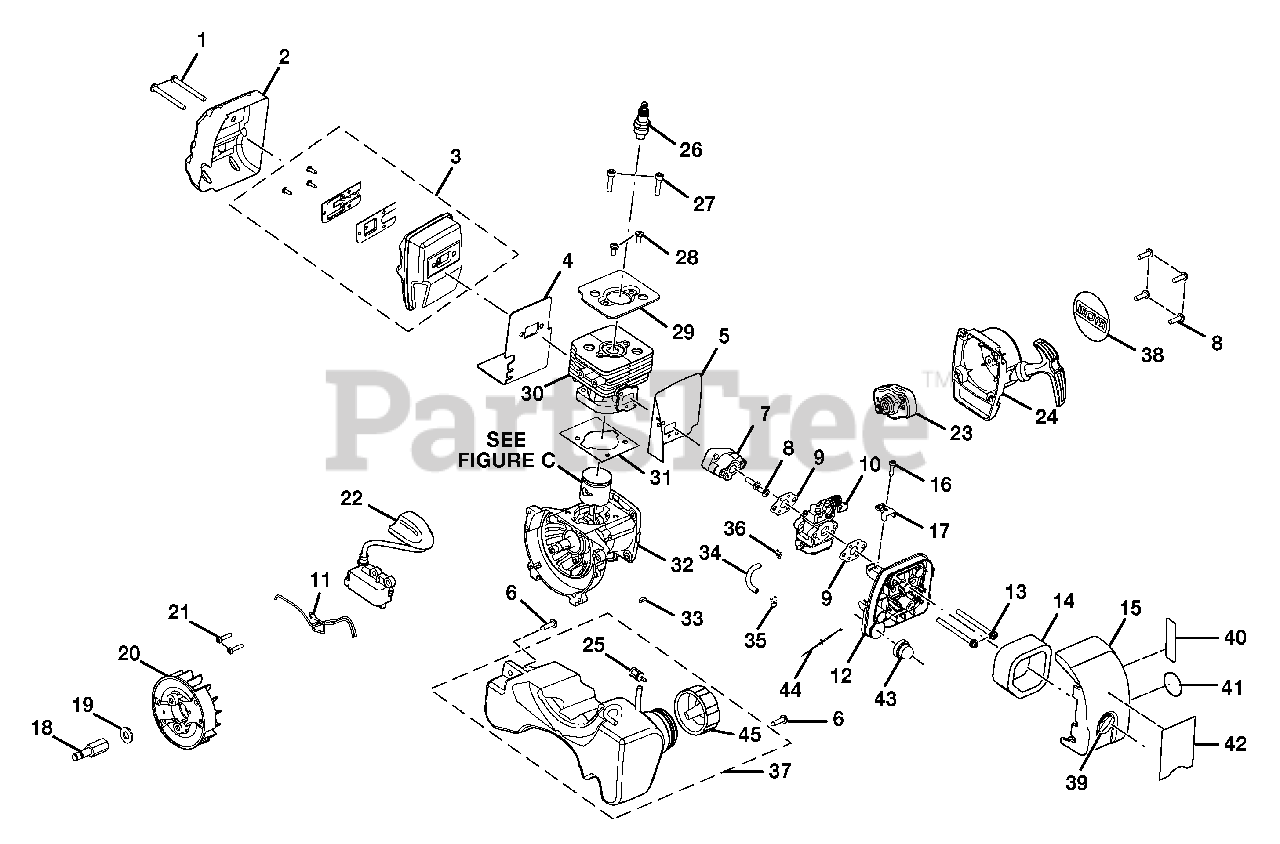

Engine Assembly Parts Diagram

  • Title

1

Homelite 660347001

SCREW (M5 X 50 mm)

Note: MAY BE PURCHASED LOCALLY

$1.99

$

In Stock, only 1 left!

0

2

Homelite 638027001

HEAT SHIELD

$4.49

$

Usually ships in 3-7 days

0

3

Homelite 308138010

MUFFLER ASSEMBLY

$

$

Not available

4

Homelite 638183001

GASKET MUFFLER

$8.99

$

In Stock, only 3 left!

0

5

Homelite 900711002

INSULATOR GASKET
(Superseded to 9071102)

$

$

Not available

6

Homelite 660674001

SCREW (#10-14 X 7/8 in.)
(Superseded to 82537)

Note: MAY BE PURCHASED LOCALLY

$1.99

$

Usually ships in 3-7 days

0

7

Homelite 590947002

INSULATOR

$3.49

$

Usually ships in 3-7 days

0

8

Homelite 660344002

SCREW AND WASHER (M5 X 22 mm)

$

$

Not available

9

Homelite 900711003

CARBURETOR GASKET
(Superseded to 9071103)

$

$

Not available

10

Homelite 308028001

CARBURETOR

$202.99

$

In Stock, only 1 left!

0

11

Homelite 290702001

LEAD ASSEMBLY

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 518130002

AIR BOX BASE
(Superseded to 985530002)

$

$

Not available

13

Homelite 660346001

SCREW (M5 X 60 mm)

Note: MAY BE PURCHASED LOCALLY

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 560873001

AIR FILTER ELEMENT
(Superseded to 5687301)

$

$

Not available

15

Homelite 518253001

CARBURETOR HOUSING COVER

$

$

Not available

16

Homelite 660734001

SCREW (M4 X 1.75 X 16 PAN HD.)

Note: MAY BE PURCHASED LOCALLY

$1.99

$

In Stock, only 3 left!

0

17

Homelite 638133003

CLIP-THROTTLE CABLE

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 308068002

CRANKSHAFT EXTENSION

$

$

Not available

19

Homelite 678171002

WASHER

$

$

Not available

20

Homelite 640574001

FLY-WHEEL ASSEMBLY
(Superseded to 6457401)

$

$

Not available

21

Homelite 660349001

SCREW (M4 X 22 mm)

Note: MAY BE PURCHASED LOCALLY

$1.99

$

In Stock, Qty 5

0

22

Homelite 290178003

COIL & BOOT ASSEMBLY

$

$

Not available

23

Homelite 308004001

PULLEY ASSEMBLY

$17.99

$

Usually ships in 3-7 days

0

24

Homelite 300753007

STARTER ASSEMBLY
(Superseded to 308430016)

$

$

Not available

25

Homelite 300759003

FUEL FILTER

$

$

Not available

26

Homelite 870170001

SPARK PLUG (CHAMPION RCJ4)

Note: MAY BE PURCHASED LOCALLY

$10.99

$

Usually ships in 3-7 days

0

27

Homelite 660342001

SCREW (M5 X 22 mm)

Note: MAY BE PURCHASED LOCALLY

$1.99

$

Usually ships in 3-7 days

0

28

Homelite 660351002

SCREW & WASHER (M5 X 10 mm)
(Superseded to 983660005)

Note: MAY BE PURCHASED LOCALLY

$1.49

$

Usually ships in 3-7 days

0

29

Homelite 630002021

PLATE FOR CYLINDER

$1.49

$

In Stock, only 3 left!

0

30

Homelite 640570016

CYLINDER
(Superseded to 640570026)

$35.99

$

In Stock, only 1 left!

0

31

Homelite 900709001

CYLINDER GASKET
(Superseded to 9070901)

$

$

Not available

32

Homelite 300749003

CRANKCASE ASSEMBLY

$64.99

$

Usually ships in 3-7 days

0

33

Homelite 690688001

KEY WOODRUFF (S43C)
(Superseded to 983784006)

$

$

Not available

34

Homelite 570574001

TUBING RUBBER

$1.49

$

Usually ships in 3-7 days

0

35

Homelite 690699001

CLIP-HOSE (ID 4.9)
(Superseded to 6969901)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 690700001

CLIP-HOSE
(Superseded to 6970001)

$1.99

$

In Stock, Qty 9

0

37

Homelite 308342001

FUEL TANK AND CAP

Note: (INC. KEY NOS. 25 AND 45)

$

$

Not available

38

Homelite 950119007

STARTING HOUSING LABEL

$2.49

$

Usually ships in 3-7 days

0

39

Homelite 590461001

AIR FILTER KNOB
(Superseded to 5946101)

$1.99

$

In Stock, only 2 left!

0

40

Homelite 940627007

STARTING LABEL

$1.49

$

Usually ships in 3-7 days

0

41

Homelite 940627006

ZIP START LABEL

$

$

Not available

42

Homelite 940627004

STARTING INSTRUCTION LABEL

$1.49

$

In Stock, only 2 left!

0

43

Homelite 300780002

PRIMER ASSEMBLY
(Superseded to 01183)

$

$

Not available

44

Homelite 308209001

CABLE ASSEMBLY

$1.99

$

Usually ships in 3-7 days

0

45

Homelite 300758006

FUEL CAP ASSEMBLY

$

$

Not available

46

Homelite 000998216

SPARK ARRESTOR KIT
(Superseded to 986179001)

Note: (NOT SHOWN)

$

$

Not available
