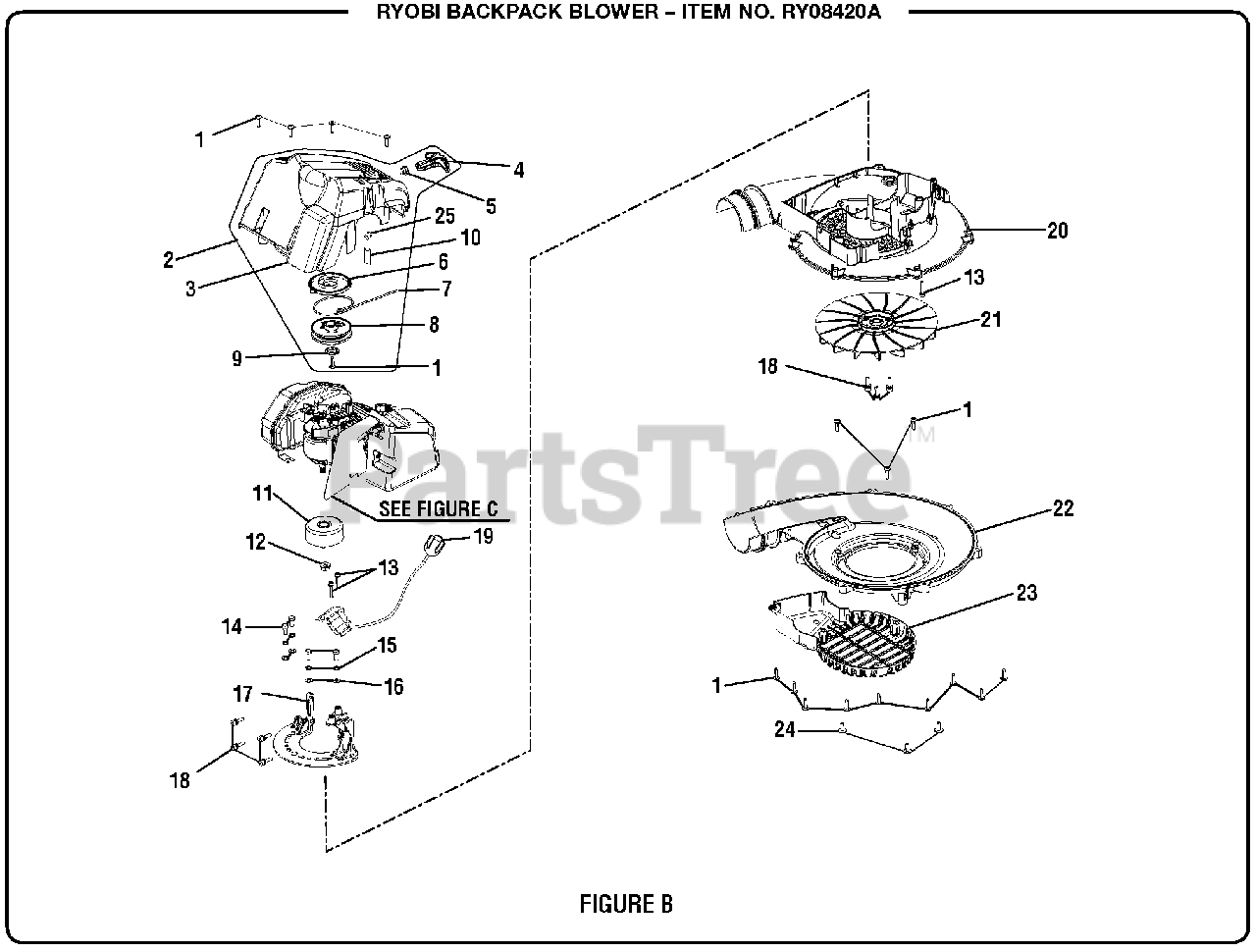

RY 08420 A (090156009) - Ryobi Backpack Blower, Rev 01 (2017-05) Figure B Parts Diagram

Backpack Blower, Rev 01

Figure B Parts Diagram

  • Title

1

Homelite 660629005

Screw (10-14 x 19 mm, T-25 Torx)

$1.99

$

In Stock, Qty 5

0

2

Homelite 308563013

Engine Cover w/Starter Assembly

Note: (Inc. Key Nos. 3-9 and 25-26)

$70.99

$

In Stock, only 1 left!

0

3

Homelite 524587002

Motor Cover

$47.99

$

Usually ships in 3-7 days

0

4

Homelite 511731004

Starter Grip

$1.49

$

In Stock, Qty 6

0

5

Homelite 638088002

Eyelet

$1.99

$

In Stock, only 4 left!

0

6

Homelite 638033001

Container Spring Assembly

$5.49

$

Usually ships in 3-7 days

0

7

Homelite 900849002

Starter Rope

$1.99

$

In Stock, only 1 left!

0

8

Homelite 521519001

Solid Pulley

$2.99

$

Usually ships in 3-7 days

0

9

Homelite 638980001

Starter Cap

$1.99

$

Usually ships in 3-7 days

0

10

Homelite 522600003

Eyelet Support

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 679052003

Fan Disk

$22.99

$

Usually ships in 3-7 days

0

12

Homelite 678018001

Lock Nut (M8)
(Superseded to 04277)

$

$

Not available

13

Homelite 660613001

Screw (M5 x 25 mm, T-25 Torx)

$1.99

$

Usually ships in 3-7 days

0

14

Homelite 661431003

Screw (M6 x 14 mm)

$1.99

$

Usually ships in 3-7 days

0

15

Homelite 693001001

Spring Washer (ID6.4 x 1.6t)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite 693002001

Washer (OD12.9 x ID6.6 x 1.2t)

$1.99

$

Usually ships in 3-7 days

0

17

Homelite 634062001

Engine Mount

$16.99

$

Usually ships in 3-7 days

0

18

Homelite 660344007

Screw (M5 x 0.8 in., 20 Torx)

$1.99

$

In Stock, Qty 5

0

19

Homelite 291424005

Ignition Module

$27.99

$

In Stock, only 1 left!

0

20

Homelite 523921001

Inner Volute

$30.99

$

Usually ships in 3-7 days

0

21

Homelite 518265004

Fan

$21.99

$

Usually ships in 3-7 days

0

22

Homelite 524586001

Outer Volute

$32.99

$

Usually ships in 3-7 days

0

23

Homelite 523926003

Intake Grill

$4.49

$

Usually ships in 3-7 days

0

24

Homelite 660626006

Screw (10-14 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

25

Homelite 638088004

Eyelet

$1.99

$

In Stock, only 3 left!

0
