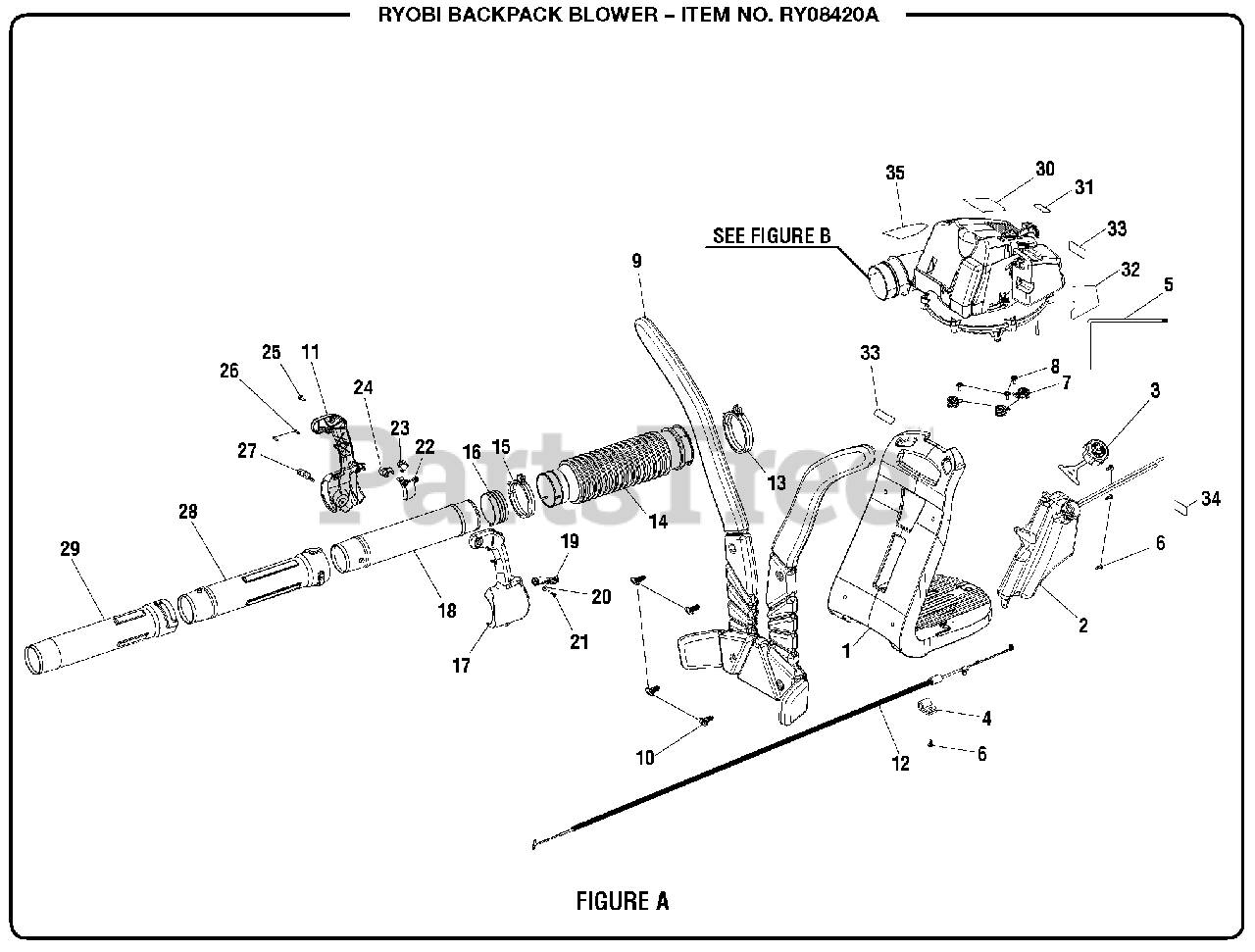

RY 08420 A (090156008) - Ryobi Backpack Blower Blower Tube / Harness Parts Diagram

Backpack Blower

Blower Tube / Harness Parts Diagram

  • Title

$

$

Not available

2

Homelite 310752015

Fuel Tank Assembly

$

$

Not available

3

Homelite 310816015

Fuel Cap Assembly

$13.99

$

In Stock, only 1 left!

0

4

Homelite 678561001

Cable Clamp

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 631055012

Wrench (L-25)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 660614001

Screw (10-14 x 14 mm)

$1.99

$

In Stock, only 4 left!

0

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 660626006

Screw (10-14 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

$74.99

$

Usually ships in 3-7 days

0

10

Homelite 525644002

Harness Snap Fastener

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 518272004

Right Hand Handle

$3.99

$

Usually ships in 3-7 days

0

12

Homelite 290298003

Throttle Cable

$

$

Not available

13

Homelite 580924002

Clamp Assembly (Large)
(Superseded to 580465001)

$2.49

$

In Stock, Qty 16

0

$

$

Not available

15

Homelite 580923002

Clamp Assembly (Small)
(Superseded to 580465001)

$2.49

$

In Stock, Qty 16

0

16

Homelite 518481003

Upper Blower Tube Bushing

$1.49

$

In Stock, Qty 8

0

17

Homelite 518271004

Left Hand Handle

$5.49

$

Usually ships in 3-7 days

0

18

Homelite 580692003

Upper Tube

$5.49

$

Usually ships in 3-7 days

0

19

Homelite 518160007

Cruise Lever

$1.99

$

In Stock, only 4 left!

0

20

Homelite 678125001

Washer (OD12 x ID4.3 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 660666001

Screw (8-14 x 25 mm)

$1.99

$

Usually ships in 3-7 days

0

22

$

$

Not available

23

Homelite 760338004

Stop Switch

$1.49

$

In Stock, only 4 left!

0

24

Homelite 518150001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

25

Homelite 660629001

Screw (10-14 x 3/4 in.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

26

Homelite 660734001

Screw (M4 x 16 mm, Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 570543002

Intermediate Tube
(Superseded to 306947001)

$7.99

$

Usually ships in 3-7 days

0

29

Homelite 580537002

Tube Nozzle
(Superseded to 306947001)

$7.99

$

Usually ships in 3-7 days

0

30

Homelite 940991051

Model Label

$1.99

$

In Stock, only 2 left!

0

31

Homelite 941738001

Choke Label

$1.49

$

In Stock, only 3 left!

0

32

Homelite 941739001

Start Instructions Label

$1.49

$

In Stock, only 3 left!

0

33

Homelite 941740001

Logo Label

$1.99

$

In Stock, only 2 left!

0

34

Homelite 941727003

Warning Label

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 941727002

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

Homelite 991000179

Operator's Manual (090156007)

Note: Not Shown

$

$

Currently unavailable
