RY 08420 (090159001) - Ryobi Backpack Blower Figure A Parts Diagram

Backpack Blower

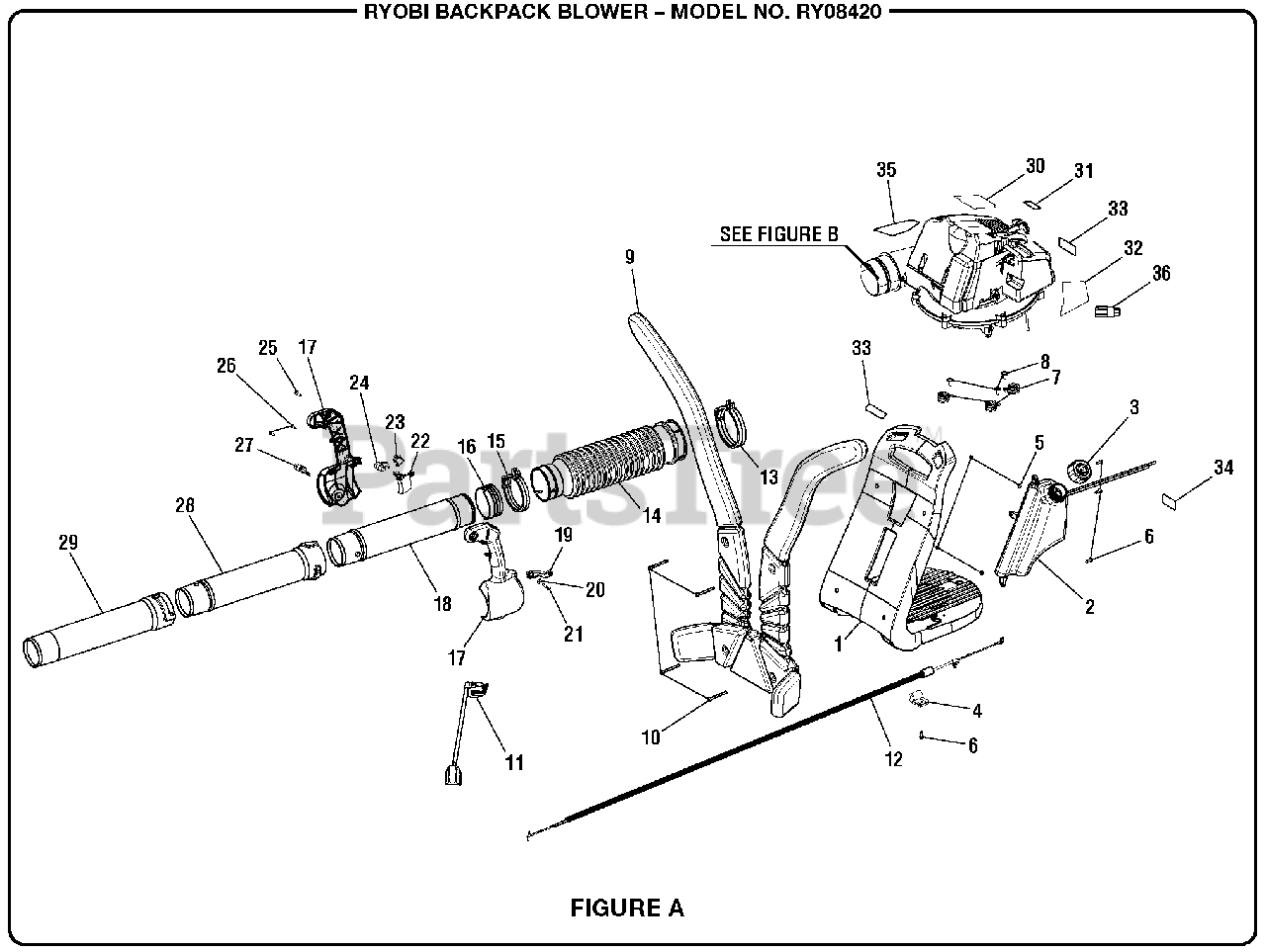

Figure A Parts Diagram

  • Title

1

Homelite 524584001

Frame

$

$

Not available

2

Homelite 310832010

Fuel Tank Assembly
(Superseded to 300757019)

$59.99

$

Usually ships in 3-7 days

0

3

Homelite 310816005

Fuel Cap Assembly

$

$

Not available

4

Homelite 678561001

Cable Clamp

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 678589001

Hex Nut (M5)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 660614001

Screw (10-14 x 14 mm)

$1.99

$

In Stock, only 4 left!

0

7

Homelite 679950001

Spring

$1.99

$

Usually ships in 3-7 days

0

8

Homelite 660626006

Screw (10-14 x 16 mm)

$1.99

$

In Stock, only 1 left!

0

9

Homelite 901588003

Strap

$74.99

$

Usually ships in 3-7 days

0

10

Homelite 660912003

Shoulder Screw (M6, Special)

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 291424001

Ignition Module Assembly

$41.99

$

In Stock, only 1 left!

0

12

Homelite 290298003

Throttle Cable

$

$

Not available

13

Homelite 580924002

Clamp Assembly (Large)
(Superseded to 580465001)

$2.49

$

In Stock, Qty 16

0

14

Homelite 580693004

Tube

$

$

Not available

15

Homelite 580923002

Clamp Assembly (Small)
(Superseded to 580465001)

$2.49

$

In Stock, Qty 16

0

16

Homelite 518481003

Upper Blower Tube Bushing

$1.49

$

In Stock, Qty 8

0

17

Homelite 310458001

Handle Assembly

$8.99

$

Usually ships in 3-7 days

0

18

Homelite 580692001

Upper Tube

$4.49

$

Usually ships in 3-7 days

0

19

Homelite 518160005

Cruise Lever

$

$

Not available

20

Homelite 678125001

Washer (OD12 x ID4.3 x 1.5t)

$1.99

$

Usually ships in 3-7 days

0

21

Homelite 660666001

Screw (8-14 x 25 mm)

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 518255005

Trigger

$

$

Not available

23

Homelite 760338004

Stop Switch

$1.49

$

In Stock, only 4 left!

0

24

Homelite 518150001

Trigger Lock

$1.49

$

In Stock, only 3 left!

0

25

Homelite 660629001

Screw (10-14 x 3/4 in.)
(Superseded to 82563)

$1.99

$

In Stock, Qty 6

0

26

Homelite 660734001

Screw (M4 x 16 mm, Pan Hd.)

$1.99

$

In Stock, only 3 left!

0

27

Homelite 518273002

Knob

$2.49

$

Usually ships in 3-7 days

0

28

Homelite 570543001

Intermediate Tube
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

29

Homelite 580537001

Tube Nozzle
(Superseded to 310845007)

$6.49

$

In Stock, Qty 18

0

30

Homelite 940991051

Model Label

$1.99

$

In Stock, only 2 left!

0

31

Homelite 941738001

Choke Label

$1.49

$

In Stock, only 3 left!

0

32

Homelite 941739001

Start Instructions Label

$1.49

$

In Stock, only 3 left!

0

33

Homelite 941740001

Logo Label

$1.99

$

In Stock, only 2 left!

0

34

Homelite 941727003

Warning Label

$1.99

$

Usually ships in 3-7 days

0

35

Homelite 941727002

Combustion Warning Label

$1.99

$

Usually ships in 3-7 days

0

36

Homelite 631055007

Wrench

$3.99

$

Usually ships in 3-7 days

0

Homelite 990000036

Operator's Manual (961469001)

Note: Not Shown

$

$

Currently unavailable
